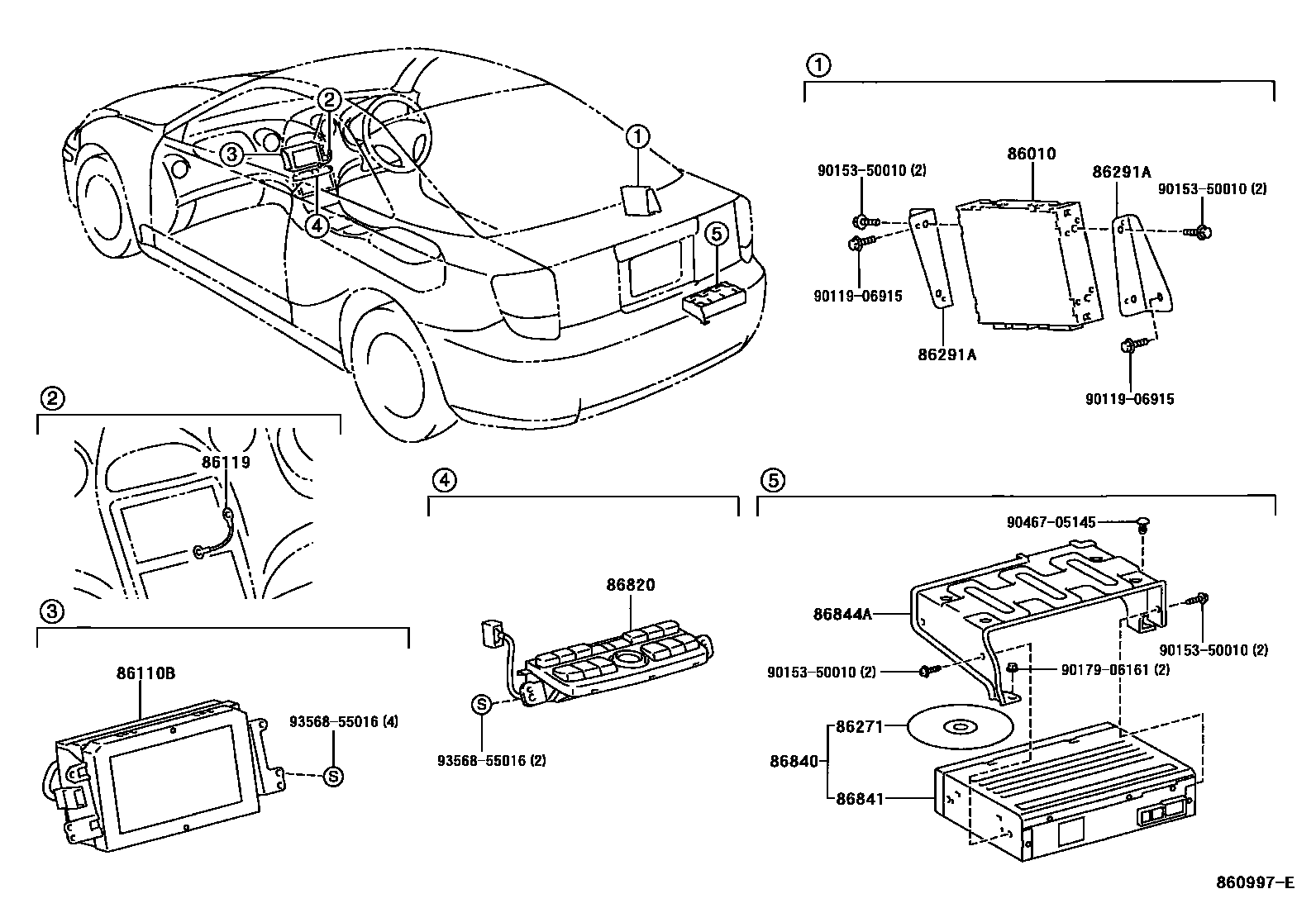

NAVIGATION & FRONT MONITOR DISPLAY

86010TUNER ASSY, TELEVISION

main86010-20020iZZT23#199908-200208

86110BMULTI-DISPLAY ASSY

main86110-20010iZZT23#199908-200604

86119WIRE, TELEVISION SWITCH

main86119-20030iZZT23#199908-200208

86271DISC, DISC PLAYER

main86271-13030iZZT23#200111-200309

sub08664-00436

main86271-13031iZZT23#200309-200403

sub08664-00E10

main86271-13032iZZT23#200404-200409

sub08664-00F26

main86271-13033iZZT23#200410-200509

sub08664-00G15

main86271-13034iZZT23#200510

sub08664-00J15

main86271-30470iZZT23#199908-200111

sub08664-00247

86291ABRACKET, TELEVISION

main86291-20010iZZT23#199908-200208

main86291-20020iZZT23#199908-200208

86820CONTROLLER ASSY, NAVIGATION

main86820-20010iZZT23#199908-200208

main86820-20040iZZT23#200208

86840CABLE, BOND (FOR NAVIGATION COMPUTER)

main86840-20010iZZT23#199908-200309

sub86840-20011

main86840-20011iZZT23#200309-200403

sub86840-20012

main86840-20012iZZT23#200404-200409

sub86840-20013

main86840-20013iZZT23#200410-200509

sub86840-20014

main86840-20014iZZT23#200510

86841COMPUTER, NAVIGATION

main86841-20010iZZT23#199908-200101

sub86841-20011

main86841-20011iZZT23#200101-200509

86844ABRACKET, NAVIGATION COMPUTER

main86274-20010iZZT23#199908-200208

9011906915

main90119-06915

9015350010

main90153-50010

9017906161

main90179-06161

9046705145

main90467-05145

9356855016

main93568-55016

14 parts on this diagram · 1 diagram in section
