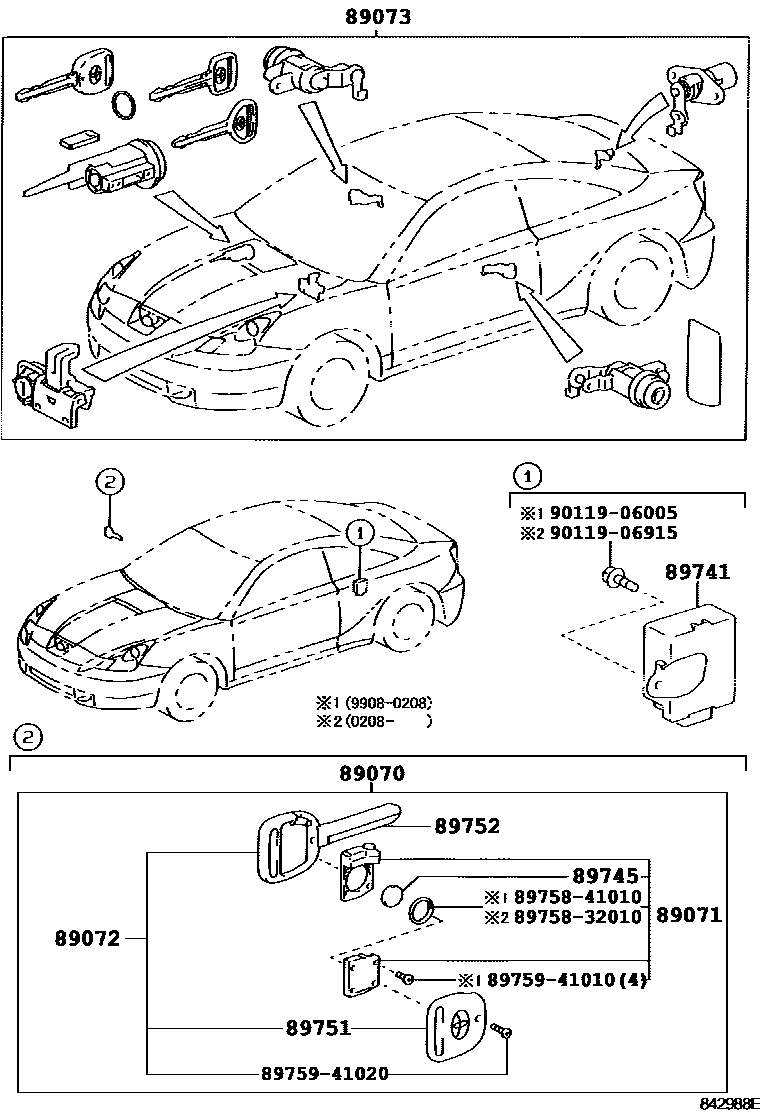

WIRELESS DOOR LOCK

89070TRANSMITTER ASSY, DOOR CONTROL

main89070-28030iZZT23#199908-200208

main89070-32080iZZT23#200208

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-32030iZZT23#200208

main89071-52010iZZT23#199908-200208

89072HOUSING SET, DOOR CONTROL TRANSMITTER

main89072-28030iZZT23#199908-200208

sub04873-28010

main89072-47020iZZT23#200208-200604

sub04873-47010

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main69005-2B740iZZT23#200208

main89073-20080iZZT23#199908-200208

sub69005-2B740

sub89751-44010

sub89759-41020

89741RECEIVER, DOOR CONTROL

main89741-20140iZZT23#199908-200208

main89741-20200iZZT23#200208

89745BATTERY, TRANSMITTER

main89745-41010iZZT23#199908-200208

89751COVER, TRANSMITTER HOUSING

main89751-44010iZZT23#199908-200208

89752CASE, TRANSMITTER HOUSING

main89752-28080iZZT23#199908-200208

main89752-46020iZZT23#200208-200604

8975832010PACKING, DOOR CONTROL TRANSMITTER

main89758-32010

8975841010PACKING, DOOR CONTROL TRANSMITTER

main89758-41010

8975941010SCREW, DOOR CONTROL TRANSMITTER

main89759-41010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

9011906005

main90119-06005

9011906915

main90119-06915

14 parts on this diagram · 1 diagram in section
