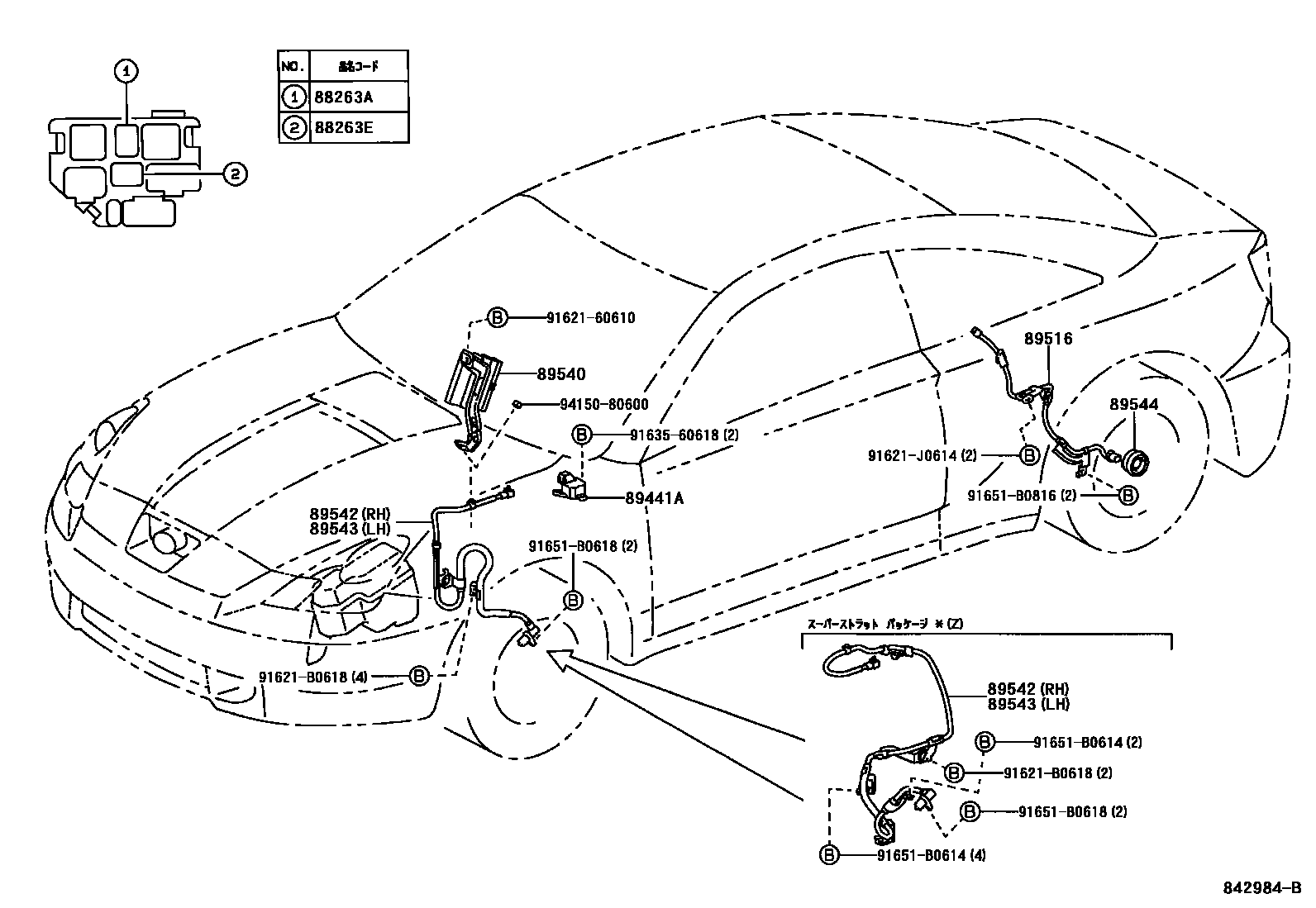

ABS & VSC

88263ARELAY, SKID CONTROL

main88263-32070iZZT23#199908-200208

88263ERELAY, SKID CONTROL NO.2

main88263-32080iZZT23#199908-200208

89441ASENSOR, DECELERATION

main89441-42010iZZT231199908-200208

89516WIRE, SKID CONTROL SENSOR

main89516-20010iZZT23#200208

main89516-20020iZZT23#200208

89540COMPUTER ASSY, SKID CONTROL

main89540-20450iZZT23#199908-200008

main89540-20451iZZT23#200008-200109

main89540-20452iZZT23#200109-200208

main89540-20470iZZT231199908-200208

89542SENSOR, SPEED, FRONT RH

main89542-20140iZZT23#199908-200208

main89542-20150iZZT231199908-200208

89543SENSOR, SPEED, FRONT LH

main89543-20140iZZT23#200208

main89543-20150iZZT231199908-200208

89544SENSOR, SKID CONTROL

main89544-20010×2iZZT23#200208

main89544-32030×2iZZT23#199908-200208

main89544-32040×2iZZT23#200301

main89544-47010×2iZZT23#199908-200208

9162160610

main91621-60610

91621B0618

main91621-B0618

91621J0614

main91621-J0614

9163560618

main91635-60618

91651B0614

main91651-B0614

91651B0618

main91651-B0618

91651B0816

main91651-B0816

9415080600

main94150-80600

16 parts on this diagram · 1 diagram in section
