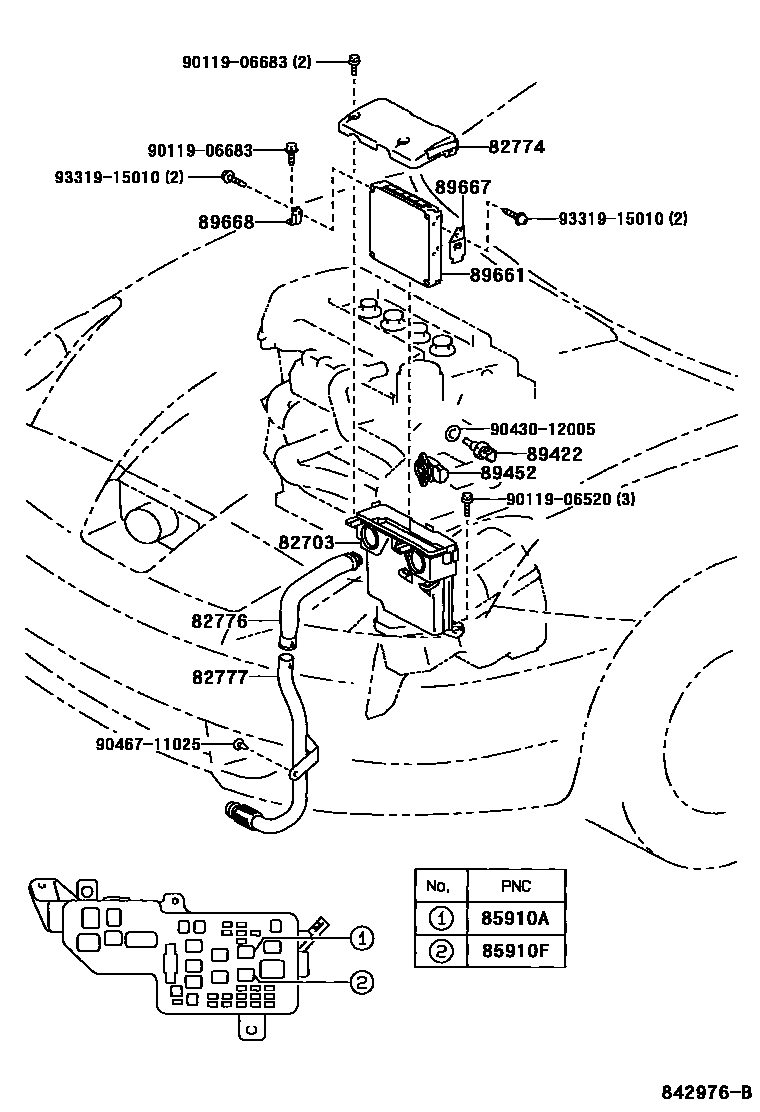

ELECTRONIC FUEL INJECTION SYSTEM

82703BOX SUB-ASSY, ENGINE ROOM ECU

main82703-20010iZZT23#199908-200208

82774COVER, ENGINE ROOM ECU

main82774-20010iZZT23#199908-200208

82776DUCT, ENGINE ROOM ECU OUTLET

main82776-20010iZZT23#199908-200208

82777DUCT, ENGINE ROOM ECU, LWR

main82777-20010iZZT23#199908-200208

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iZZT23#199908-200208

main90987-02027iZZT23#200208

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iZZT23#199908-200208

main90987-02027iZZT23#200208

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iZZT23#199908-200208

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iZZT230199908-200208

main89452-35020iZZT231199908-200208

89661COMPUTER, ENGINE CONTROL

main89666-20010iZZT230..5F199908-200208

main89666-20020iZZT230..4FC199908-200208

main89666-20060iZZT231..6F199908-200208

main89666-20070iZZT231..4FC199908-200208

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-20410iZZT23#199908-200208

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-20360iZZT23#199908-200208

9011906520

main90119-06520

9011906683

main90119-06683

9043012005

main90430-12005

9046711025

main90467-11025

9331915010

main93319-15010

16 parts on this diagram · 1 diagram in section
