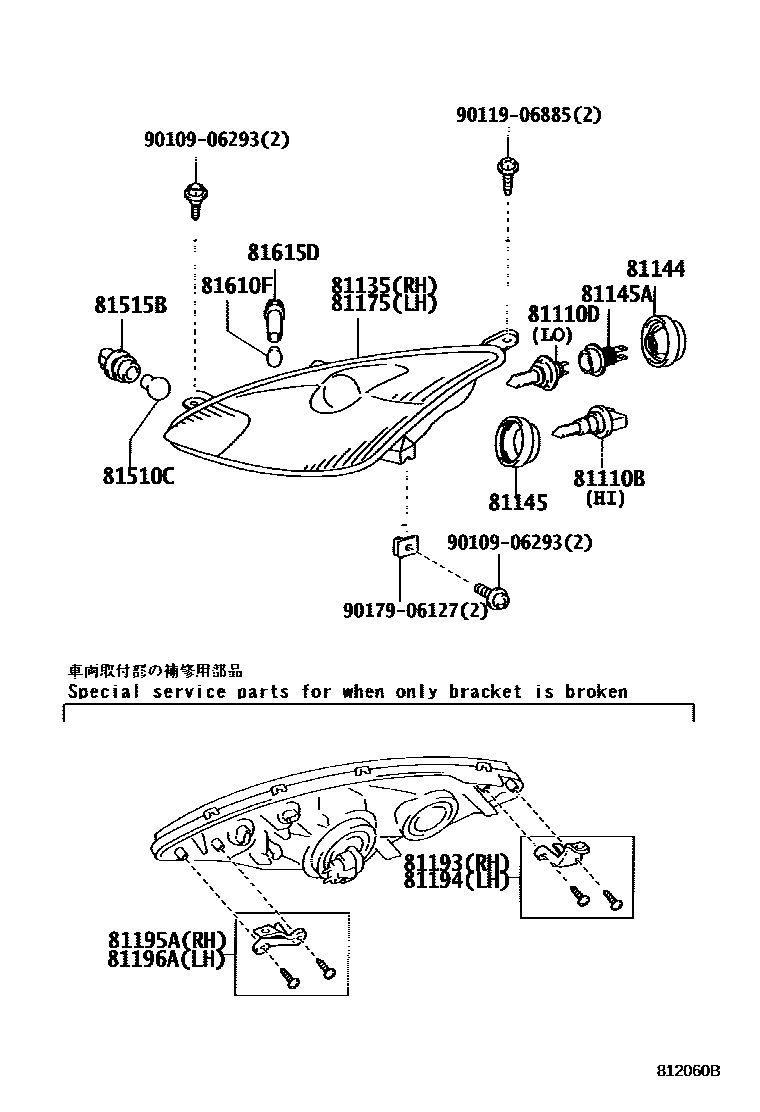

HEADLAMP

0001 1 0002 1

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041iZZT23#199908-200208

sub90981-13046

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13063iZZT23#199908-200208

main90981-13066iZZT23#200208

81135UNIT ASSY, HEADLAMP, RH

main81130-2B770iZZT23#199908-200208

main81145-2D020iZZT23#200208

81144COVER, HEADLAMP, NO.1

main81135-2D020iZZT23#200208

main81175-2B870iZZT23#200208

main90075-65014iZZT23#199908-200208

81145COVER, HEADLAMP, NO.2

main90075-65015iZZT23#199908-200208

main90075-67005iZZT23#200208

sub90075-67008

81145AADAPTER ASSY

main90075-99140iZZT23#199908-200208

81175UNIT ASSY, HEADLAMP, LH

main81170-2B730iZZT23#199908-200208

main81185-2B870iZZT23#200208

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-20020iZZT23#199908-200208

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-20020iZZT23#199908-200208

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-20020iZZT23#199908-200208

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-20020iZZT23#199908-200208

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15009iZZT23#199908-200208

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60006iZZT23#199908-200208

main90075-60069iZZT23#200208

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iZZT23#199908-200208

81615DSOCKET, CLEARANCE LAMP

main90075-60004iZZT23#199908-200208

main90075-60046iZZT23#200208-200505

main90075-60077iZZT23#200506

9010906293

main90109-06293

9011906885

main90119-06885

9017906127

main90179-06127

18 parts on this diagram · 2 diagrams in section
