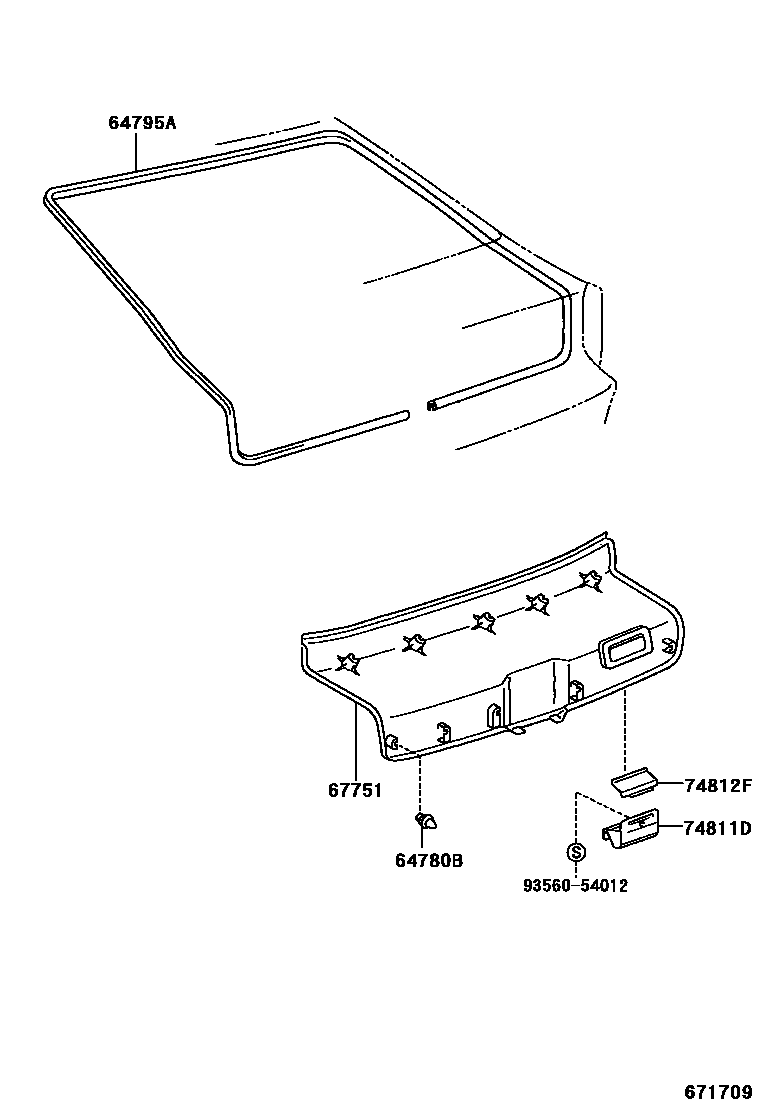

BACK DOOR PANEL & GLASS

0001 1 0002 1

64780BCLIP(FOR BACK DOOR TRIM PANEL)

main90467-10161iZZT23#199908-200208

64795ATRIM, BACK WINDOW OPENING

main64795-20010-C0iZZT231199908-200208

BLACK,TRIM2#,20,21,22

sub64795-20011

main64795-20010-C0iZZT230199908-200308

BLACK,TRIM20,21,22

sub64795-20011

main64795-20010-C0iZZT230200208-200308

BLACK,TRIM20,21,22,23

sub64795-20011

main64795-20011-C0iZZT230200308

BLACK,TRIM20,21,22

main64795-20011-C0iZZT230200308

BLACK,TRIM20,21,22,23

67751BOARD, BACK DOOR TRIM

main67751-20010-B0iZZT230199908-200208

AMETHYST,TRIM20,21,22

sub67751-20010

main67751-20010-B0iZZT230199908-200208

AMETHYST,TRIM2#,20,21,22

sub67751-20010

main67751-20010-B1iZZT230200208

DK.GRAY,TRIM20,21,22,23

sub67751-20010

main67751-20010-B1iZZT230200208

DK.GRAY,TRIM20,21,22

sub67751-20010

74811DHANDLE, DOOR PULL

main74811-20040-B0iZZT230199908-200208

AMETHYST,TRIM20,21,22

sub74811-20040

main74811-20040-B0iZZT230199908-200208

AMETHYST,TRIM2#,20,21,22

sub74811-20040

main74811-20040-B1iZZT231200208

DK.GRAY,TRIM20,21,22,23

sub74811-20040

main74811-20040-B1iZZT230200208

DK.GRAY,TRIM20,21,22

sub74811-20040

74812FCOVER, DOOR PULL HANDLE

main74812-20020-B0iZZT230199908-200208

AMETHYST,TRIM20,21,22

sub74812-20020

main74812-20020-B0iZZT230199908-200208

AMETHYST,TRIM2#,20,21,22

sub74812-20020

main74812-20020-B1iZZT230200208

DK.GRAY,TRIM20,21,22

sub74812-20020

main74812-20020-B1iZZT230200208

DK.GRAY,TRIM20,21,22,23

sub74812-20020

9356054012

main93560-54012

6 parts on this diagram · 2 diagrams in section
