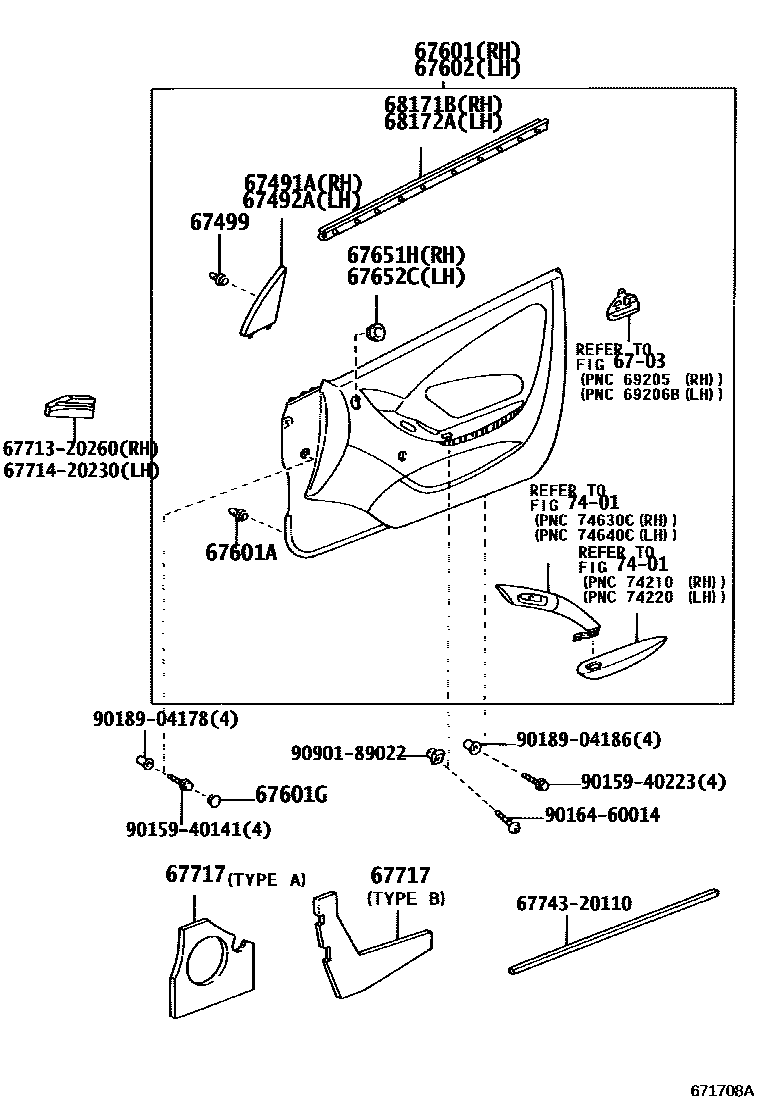

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

6703

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-20400iZZT23#199908-200208

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-20420iZZT23#199908-200208

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main90467-10167iZZT23#199908-200208

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-2G200-C0iZZT23#199908-200008

sub67610-2G202

main67610-2G200-C1iZZT23#199908-200008

sub67610-2G202

main67610-2G200-C2iZZT23#199908-200008

sub67610-2G202

main67610-2G202-C3iZZT23#200008-200208

sub67610-2G682

sub67610-2G203

main67610-2G202-C4iZZT23#200008-200208

sub67610-2G682

sub67610-2G203

main67610-2G202-C5iZZT23#200008-200208

sub67610-2G682

sub67610-2G203

main67610-2G202-C6iZZT23#200208-200309

sub67610-2G682

sub67610-2G203

main67610-2G202-C7iZZT23#200208-200309

sub67610-2G682

sub67610-2G203

main67610-2G202-C8iZZT23#200208-200309

sub67610-2G682

sub67610-2G203

main67610-2G203-C3iZZT23#200309

sub67610-2G683

main67610-2G203-C4iZZT23#200309

sub67610-2G683

main67610-2G203-C5iZZT23#200309

sub67610-2G683

main67610-2G680-C0iZZT23#199908-200008

sub67610-2G682

main67610-2G680-C1iZZT23#199908-200008

sub67610-2G682

main67610-2G680-C2iZZT23#199908-200008

sub67610-2G682

main67610-2G682-C3iZZT23#200008-200208

sub67610-2G683

main67610-2G682-C4iZZT23#200008-200208

sub67610-2G683

main67610-2G682-C5iZZT23#200008-200208

sub67610-2G683

main67610-2G682-C6iZZT23#200208-200309

sub67610-2G683

main67610-2G682-C7iZZT23#200208-200309

sub67610-2G683

main67610-2G682-C8iZZT23#200208-200309

sub67610-2G683

main67610-2G683-C3iZZT23#200309

main67610-2G683-C4iZZT23#200309

main67610-2G683-C5iZZT23#200309

main67610-2G820-C0iZZT231199908-200008

sub67610-2G822

main67610-2G822-C1iZZT231200008-200208

sub67610-2G832

sub67610-2G823

main67610-2G822-C2iZZT231200208-200309

sub67610-2G832

sub67610-2G823

main67610-2G823-C1iZZT231200309

main67610-2G830-C0iZZT231199908-200008

sub67610-2G832

main67610-2G832-C1iZZT231200008-200208

sub67610-2G833

main67610-2G832-C2iZZT231200208-200309

sub67610-2G833

main67610-2G833-C1iZZT231200309

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main90467-10161iZZT23#199908-200208

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01800-B7iZZT230199908-200208

AMETHYST,TRIM20,21,22

sub90950-01800

main90950-01800-B7iZZT230199908-200208

AMETHYST,TRIM2#,20,21,22

sub90950-01800

main90950-01800-P0iZZT230200208

DK.GRAY,TRIM20,21,22

sub90950-01800

main90950-01800-P0iZZT230200208

DK.GRAY,TRIM20,21,22,23

sub90950-01800

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67660-20040-C0iZZT23#199908-200008

sub67660-20042

main67660-20040-C1iZZT23#199908-200008

sub67660-20042

main67660-20040-C2iZZT23#199908-200008

sub67660-20042

main67660-20042-C3iZZT23#200008-200208

sub67660-20052

sub67660-20043

main67660-20042-C4iZZT23#200008-200208

sub67660-20052

sub67660-20043

main67660-20042-C5iZZT23#200008-200208

sub67660-20052

sub67660-20043

main67660-20042-C6iZZT23#200208-200309

sub67660-20052

sub67660-20043

main67660-20042-C7iZZT23#200208-200309

sub67660-20052

sub67660-20043

main67660-20042-C8iZZT23#200208-200309

sub67660-20052

sub67660-20043

main67660-20043-C3iZZT23#200309

main67660-20043-C4iZZT23#200309

main67660-20043-C5iZZT23#200309

main67660-20050-C0iZZT23#199908-200008

sub67660-20052

main67660-20050-C1iZZT23#199908-200008

sub67660-20052

main67660-20050-C2iZZT23#199908-200008

sub67660-20052

main67660-20052-C3iZZT23#200008-200208

sub67660-20053

main67660-20052-C4iZZT23#200008-200208

sub67660-20053

main67660-20052-C5iZZT23#200008-200208

sub67660-20053

main67660-20052-C6iZZT23#200208-200309

sub67660-20053

main67660-20052-C7iZZT23#200208-200309

sub67660-20053

main67660-20052-C8iZZT23#200208-200309

sub67660-20053

main67660-20053-C3iZZT23#200309

main67660-20053-C4iZZT23#200309

main67660-20053-C5iZZT23#200309

main67660-20190-C0iZZT231199908-200008

sub67660-20192

main67660-20192-C1iZZT231200008-200208

sub67660-20202

sub67660-20193

main67660-20192-C2iZZT231200208-200309

sub67660-20202

sub67660-20193

main67660-20193-C1iZZT231200309

main67660-20200-C0iZZT231199908-200008

sub67660-20202

main67660-20202-C1iZZT231200008-200208

sub67660-20203

main67660-20202-C2iZZT231200208-200309

sub67660-20203

main67660-20203-C1iZZT231200309

67651HGRILLE, SPEAKER DOOR, RH

main67651-20070-B0iZZT230199908-200208

AMETHYST,TRIM2#,20,21,22

sub67651-20070

main67651-20070-B0iZZT231199908-200208

AMETHYST,TRIM20,21,22

sub67651-20070

main67651-20070-B2iZZT230200208

DK.GRAY,TRIM20,21,22

sub67651-20070

main67651-20070-B2iZZT230200208

DK.GRAY,TRIM20,21,22,23

sub67651-20070

67652CGRILLE, SPEAKER DOOR, LH

main67652-20060-B0iZZT230199908-200208

AMETHYST,TRIM20,21,22

sub67652-20060

main67652-20060-B0iZZT230199908-200208

AMETHYST,TRIM2#,20,21,22

sub67652-20060

main67652-20060-B2iZZT230200208

DK.GRAY,TRIM20,21,22

sub67652-20060

main67652-20060-B2iZZT230200208

DK.GRAY,TRIM20,21,22,23

sub67652-20060

67717PAD, FRONT DOOR TRIM, CENTER RH

main67717-20280iZZT23#199908-200208

main67717-20280iZZT23#200208

main67731-20080iZZT23#200208

main67731-20080iZZT23#199908-200208

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-20120iZZT23#199908-200308

sub68171-20121

main68171-20121iZZT23#200308

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-20110iZZT23#199908-200308

sub68172-20111

main68172-20111iZZT23#200308

7401

6771320260

main67713-20260

6771420230

main67714-20230

6774320110MARK, SIDE TRIM

main67743-20110

9015940141

main90159-40141

9015940223

main90159-40223

9016460014

main90164-60014

9018904178

main90189-04178

9018904186

main90189-04186

9090189022

main90901-89022

23 parts on this diagram · 4 diagrams in section
