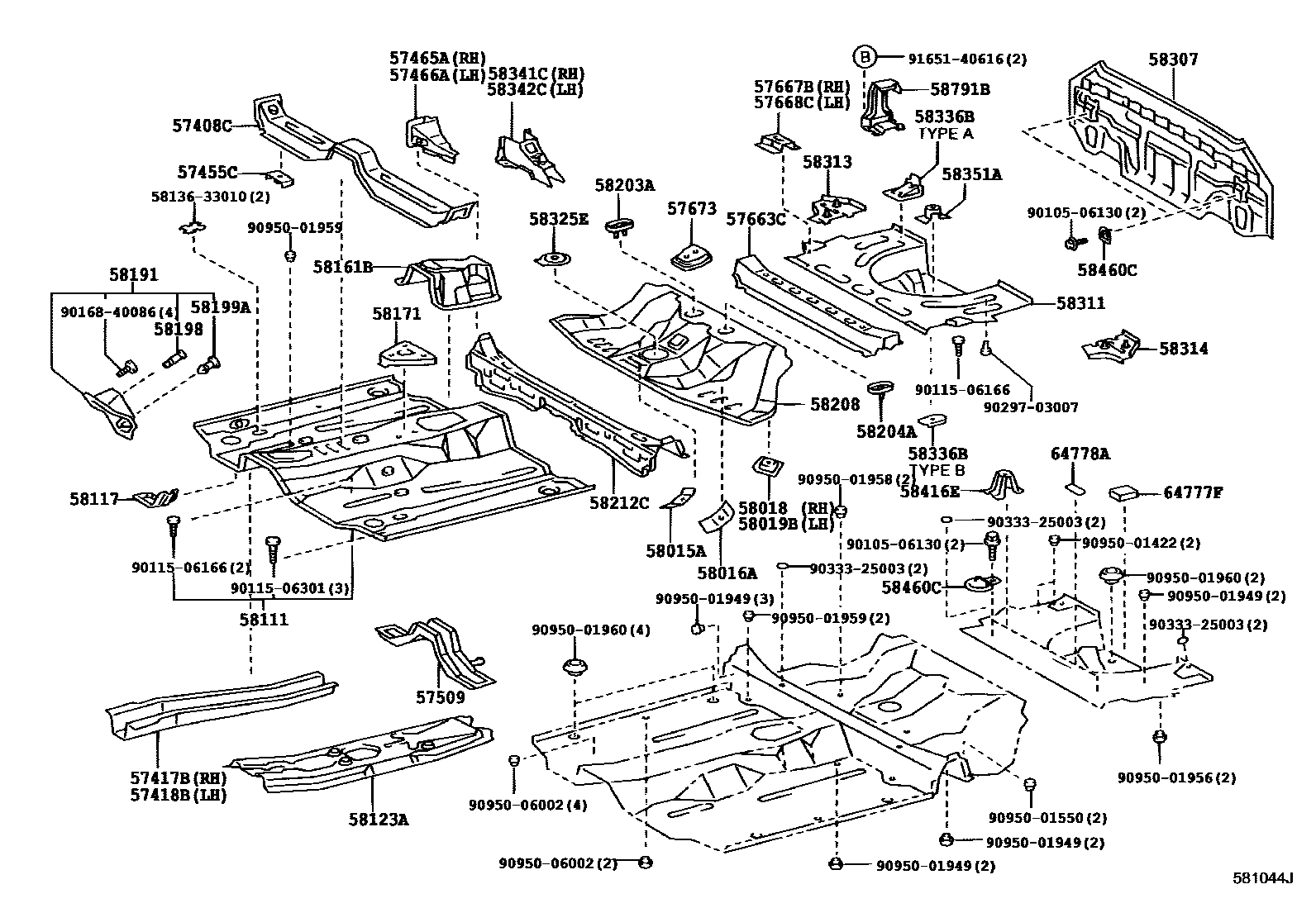

FLOOR PAN & LOWER BACK PANEL
57417BREINFORCEMENT, FRONT FLOOR UNDER
57418BREINFORCEMENT, FRONT FLOOR UNDER, LH
57455CBRACKET, FRONT SEAT MOUNTING, OUTSIDE RH
57465AGUSSET, CENTER FLOOR CROSSMEMBER, RH
57466AGUSSET, CENTER FLOOR CROSSMEMBER, LH
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57663CMEMBER, REAR FLOOR CROSS, CENTER
57667BREINFORCEMENT, REAR FLOOR CROSSMEMBER, RH
57668CREINFORCEMENT, REAR FLOOR CROSSMEMBER, LH
57673BRACKET, REAR SEATBACK HINGE MOUNTING
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58018REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.4 RH
58019BREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.4 LH
58117REINFORCEMENT, FRONT FLOOR SIDE, NO.1
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58171REINFORCEMENT, PARKING BRAKE BASE
58198CLIP, FOOTREST
58199ACLIP, FOOTREST, NO.2
58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58212CPAN, CENTER FLOOR, FRONT
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58336BREINFORCEMENT, REAR FLOOR PAN
58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58351ABRACKET, SPARE WHEEL CARRIER
58416EBRACKET, DECK BOARD, NO.1 RH
58460CSTRIKER ASSY, LUGGAGE HOLD BELT
58791BCARRIER, JACK
64777FCUSHION, SPARE WHEEL
64778APROTECTOR, SPARE WHEEL
sub64778-21010
5813633010COVER, FRONT FLOOR HOLE
main58136-33010
9010506130
main90105-06130
9011506166
main90115-06166
9011506301
main90115-06301
9016840086
main90168-40086
9029703007
main90297-03007
9033325003
main90333-25003
9095001422
main90950-01422
9095001550
main90950-01550
9095001949
main90950-01949
9095001956
main90950-01956
9095001958
main90950-01958
9095001959
main90950-01959
9095001960
main90950-01960
9095006002
main90950-06002
9165140616
main91651-40616
57 parts on this diagram · 1 diagram in section
