REAR BUMPER & BUMPER STAY

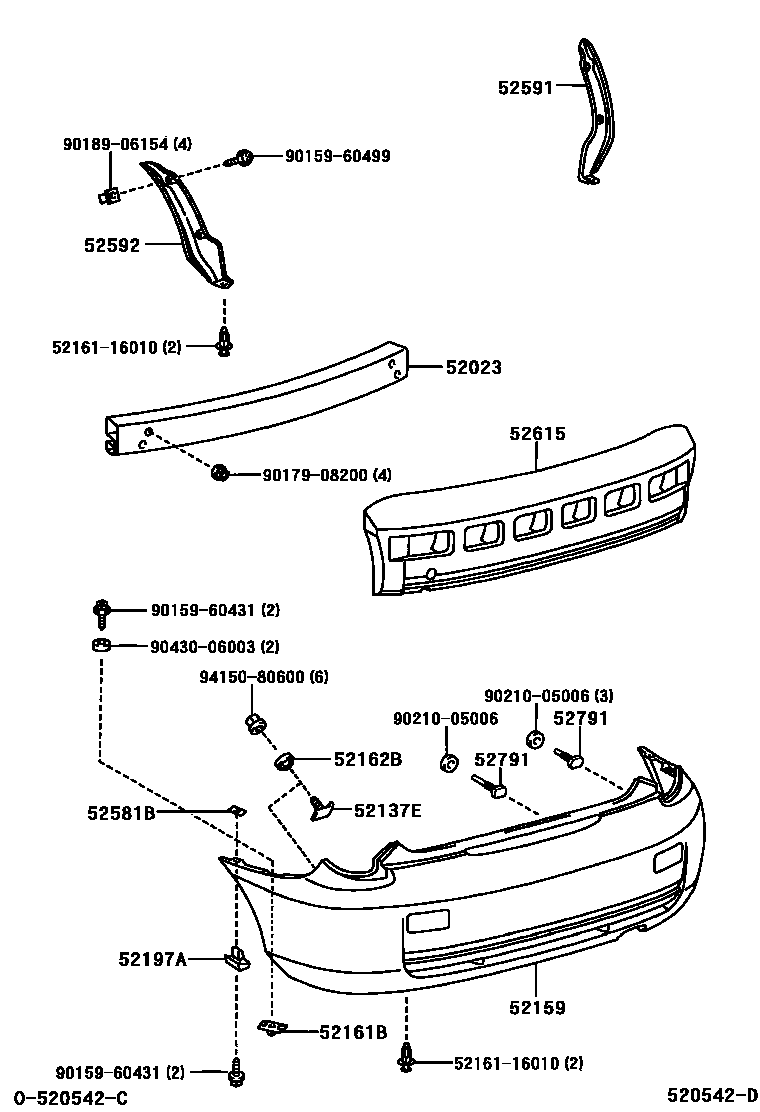

Parts diagram

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-20370i199908-200208

52137EPLATE, REAR BUMPER BRACKET, NO.1

main52137-20070i199908-200208

52159COVER, REAR BUMPER

main52159-2B010-A0i199908-200208

SUPER WHITE 2,040

main52159-2B010-B0i199908-200208

SILVER ME.,1D0

main52159-2B010-B1i200208

GRAY ME.,1D2

main52159-2B010-B2i200208

SILVER M.M.,1E7

main52159-2B010-C0i199908-200208

BLACK,202

main52159-2B010-C1i199908-200208

BLACK MC.CC.,210

main52159-2B010-D0i199908-200208

SUPER RED 5,3P0

main52159-2B010-F0i199908-200208

SUPER BRIGHT YELLOW,576

main52159-2B010-J0i200208

BLUE MC.,8M6

main52159-2B010-J0i200002-200207

main52159-2B020-A0i199908-200208

main52159-2B020-B0i199908-200208

main52159-2B020-B1i200208

main52159-2B020-B2i200208

main52159-2B020-C0i199908-200208

main52159-2B020-C1i199908-200208

main52159-2B020-D0i199908-200208

main52159-2B020-F0i199908-200208

main52159-2B020-J0i200208

main52159-2B020-J0i200002-200207

52161BPIECE, REAR BUMPER

main52161-20020i199908-200208

52162BPLATE, REAR BUMPER, NO.1

main52162-12050i199908-200208

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-20010i199908-200208

52581BPROTECTOR, REAR BUMPER

main52581-20060i199908-200208

52591SEAL, REAR BUMPER SIDE, RH

main52591-20070i199908-200208

52592SEAL, REAR BUMPER SIDE, LH

main52592-20040i199908-200208

52615ABSORBER, REAR BUMPER ENERGY

main52615-20240i199908-200208

52791BOLT, BUMPER MOULDING SET, NO.1

main52791-12040i200006-200208

main52791-32010i199908-200006

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9015960431

main90159-60431

9015960499

main90159-60499

9017908200

main90179-08200

9018906154

main90189-06154

9021005006

main90210-05006

9043006003

main90430-06003

9415080600

main94150-80600

19 parts on this diagram · 1 diagram in section
