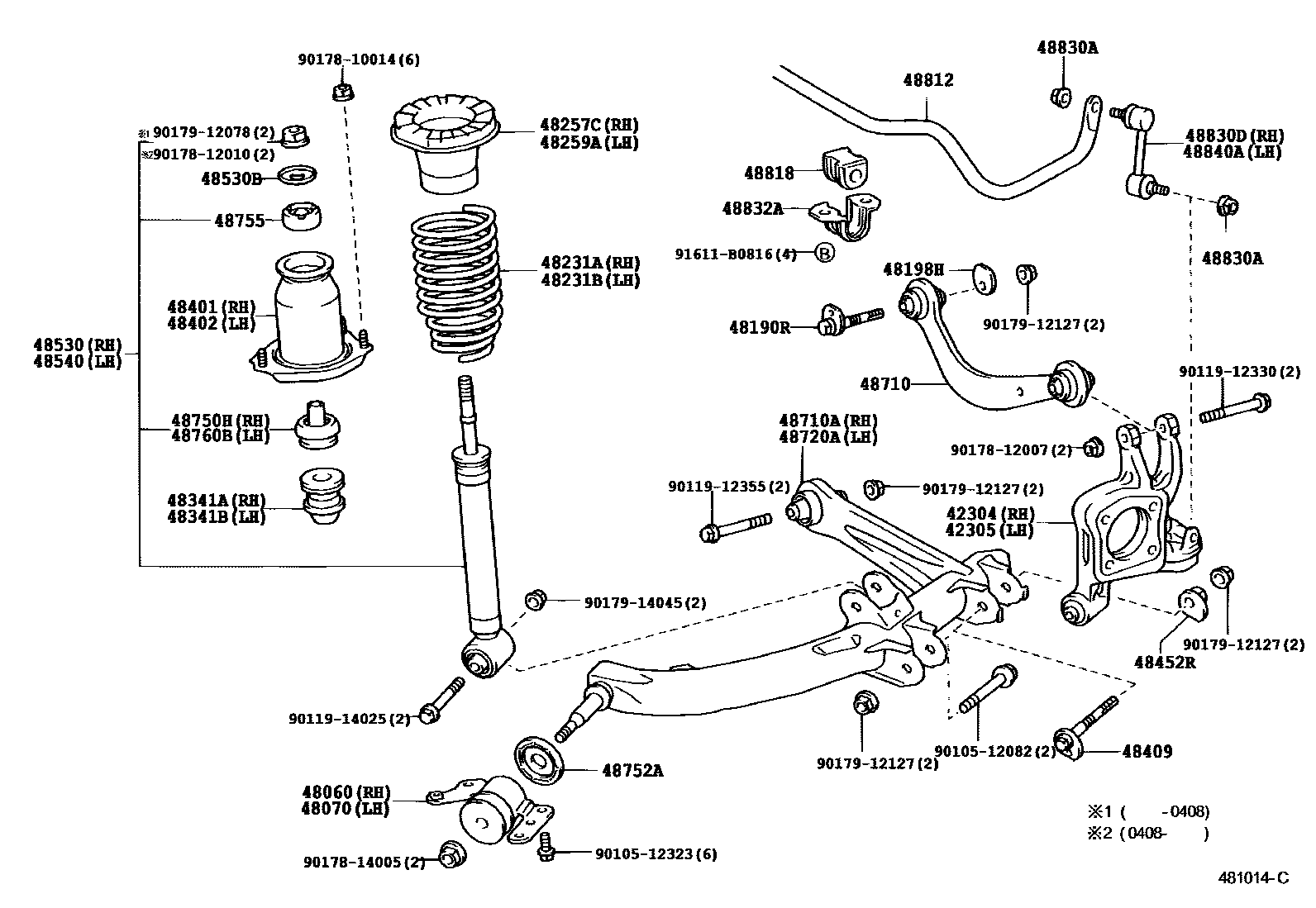

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48060BRACKET ASSY, REAR SUSPENSION ARM, RH
48070BRACKET ASSY, REAR SUSPENSION ARM, LH
48190RCAM ASSY, CAMBER ADJUST
48198HCAM, CAMBER ADJUST, NO.2
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48755SUPPORT, REAR SUSPENSION
48760BSUPPORT ASSY REAR SUSPENSION, LH
48818BUSH, STABILIZER, REAR
48830ANUT(FOR REAR STABILIZER LINK)
48830DLINK ASSY, REAR STABILIZER, RH
48832ABRACKET, REAR STABILIZER BAR, NO.1
48840ALINK ASSY, REAR STABILIZER, LH
9010512082
main90105-12082
9010512323
main90105-12323
9011912330
main90119-12330
9011912355
main90119-12355
9011914025
main90119-14025
9017810014
main90178-10014
9017812007
main90178-12007
9017812010
main90178-12010
9017814005
main90178-14005
9017912078
main90179-12078
9017912127
main90179-12127
9017914045
main90179-14045
91611B0816
main91611-B0816
45 parts on this diagram · 1 diagram in section
