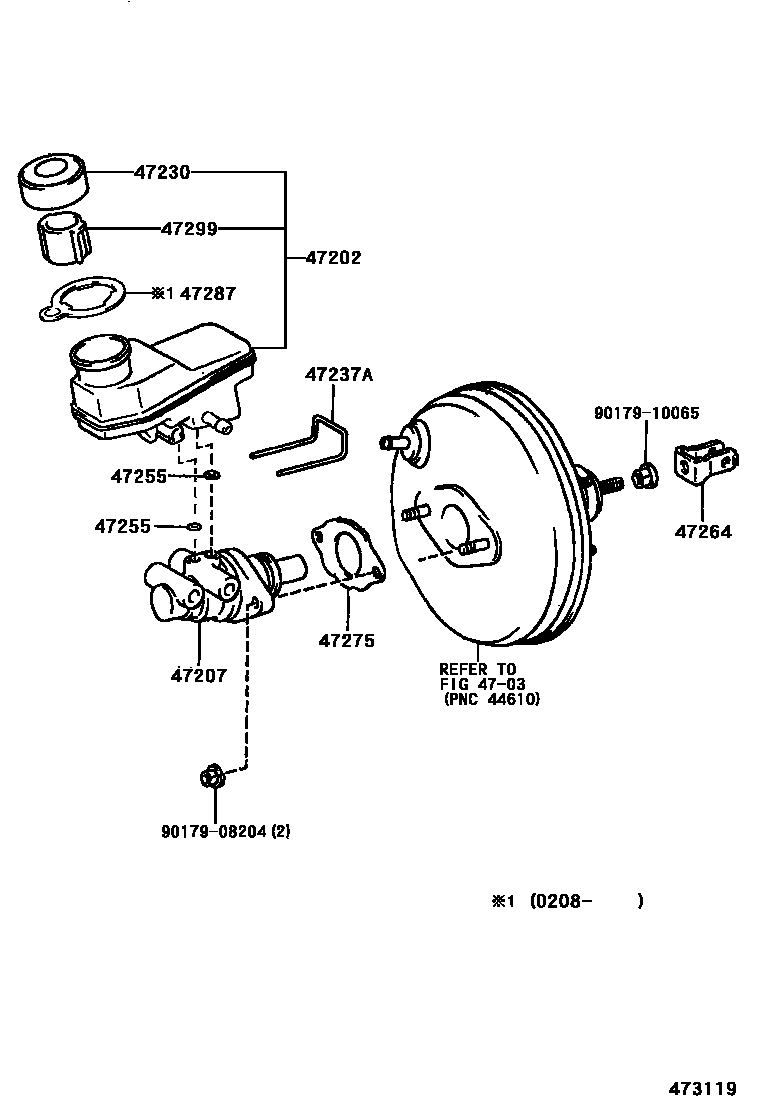

BRAKE MASTER CYLINDER

4703

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-20250iZZT23#..MTM199908-200208

sub47220-20251

main47220-20251iZZT23#..MTM200208

main47220-20270iZZT23#..4FC199908-200208

sub47220-20271

main47220-20271iZZT23#..4FC200208

47207CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK

main47207-20130iZZT23#199908-200311

main47207-20131iZZT23#200311

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20250iZZT23#199908-200110

sub47230-48090

main47230-48090iZZT23#200110-200208

sub47230-48091

47237ASTOPPER, BREKE MASTER CYLINDER RESERVOIR TANK

main47237-20020iZZT23#199908-200208

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-52010iZZT23#199908-200208

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-32020iZZT23#199908-200604

47275GASKET, BRAKE MASTER CYLINDER

main47275-52010iZZT23#199908-200604

47287LABEL, BRAKE FLUID INFORMATION

main47287-20020iZZT23#200208

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-52010iZZT23#199908-200208

9017908204

main90179-08204

9017910065

main90179-10065

12 parts on this diagram · 1 diagram in section
