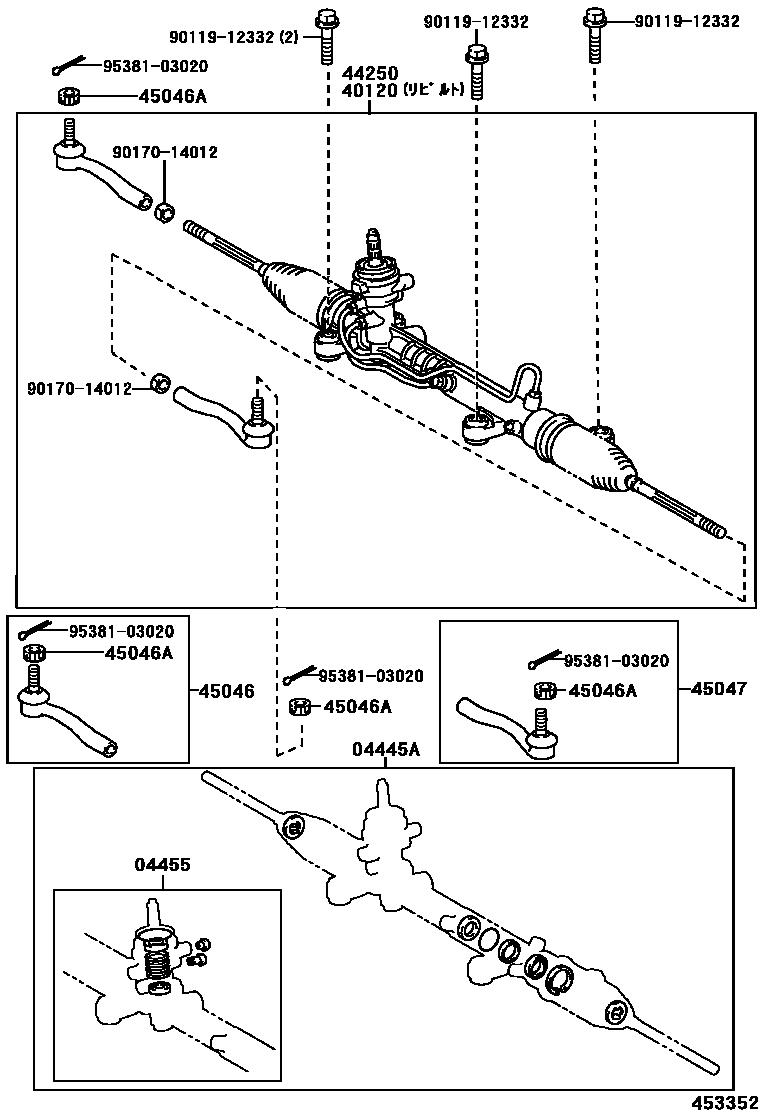

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-20261iZZT23#199908-200208

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-20171iZZT23#199908-200208

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-20741iZZT23#199908-200604

main40120-20780iZZT231199908-200604

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44200-20850iZZT23#199912-200004

sub44200-20851

main44200-20851iZZT23#200004-200208

main44200-20870iZZT231199912-200208

main44200-29015iZZT23#199908-199912

sub44200-20850

main44200-29035iZZT231199908-199912

sub44200-20870

45046END SUB-ASSY, TIE ROD, RH

main45046-49085iZZT23#199908-200208

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iZZT23#199908-200208

45047END SUB-ASSY, TIE ROD, LH

main45047-49015iZZT23#199908-200208

9011912332

main90119-12332

9017014012

main90170-14012

9538103020

main95381-03020

10 parts on this diagram · 4 diagrams in section
