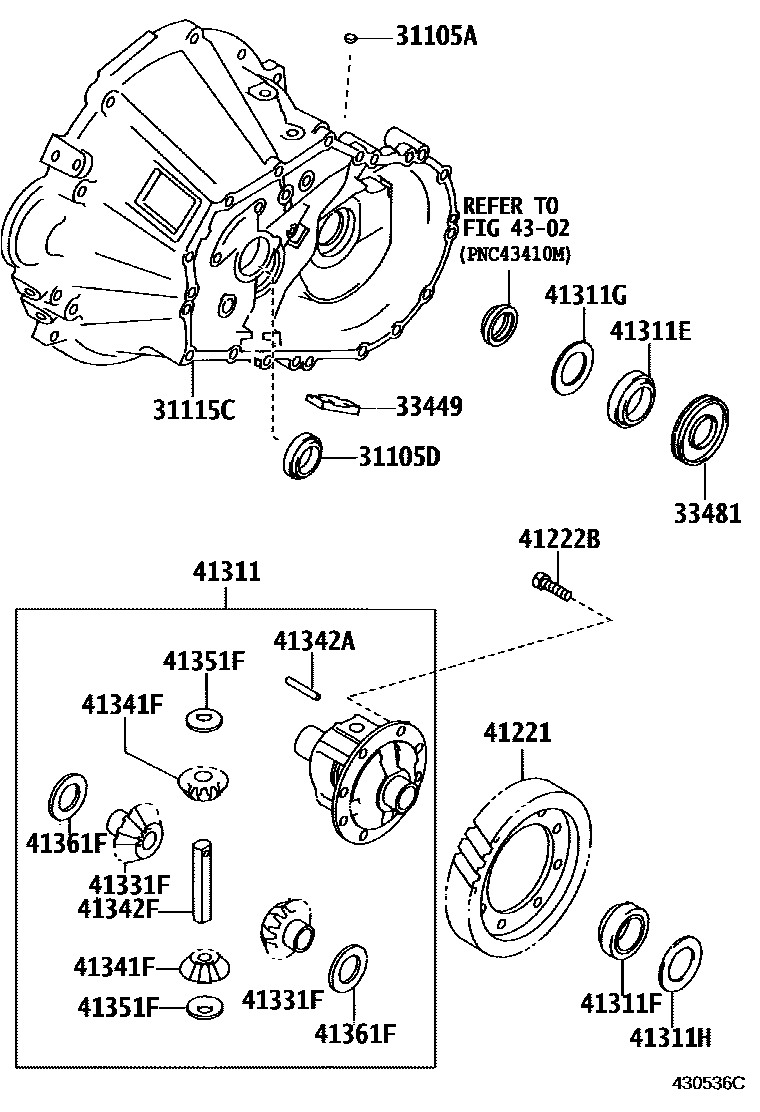

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1C56,C60 0002 1C60,��(���� LSD) 0003 1U341E 0004 1U240E

31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)

main90331-08002iZZT23#..MTM199908-200208

31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

main90311-25011iZZT231..6F199908-200509

sub90311-25028

main90311-25028iZZT23#..MTM200509-200604

31115CCASE, FRONT TRANSAXLE(MTM)

main31115-20040iZZT23#..MTM199908-200403

sub31105-17020

main31115-20041iZZT23#..MTM200403

sub31105-17020

33449MAGNET, TRANSMISSION

main33449-12020iZZT23#..MTM199908-200208

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-20160iZZT23#..MTM199908-200208

41221GEAR, FRONT DIFFERENTIAL RING

main41221-20350iZZT230..5F199908-200208

sub41221-12480

main41221-20370iZZT231..4FC199908-200208

main41221-20380iZZT231..6F199908-200208

sub41221-12490

main41221-52050iZZT230..4FC199908-200208

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11003iZZT230..4FC199908-200604

main90105-11040iZZT23#..MTM199908-200604

41311CASE, FRONT DIFFERENTIAL

main41301-12210iZZT230..4FC200301

main41301-20230iZZT231..6F199908-200208

main41301-32061iZZT23#..MTM199908-200208

main41301-32071iZZT230..4FC199908-200301

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90366-40016iZZT23#..4FC199908-200208

main90366-40097iZZT23#..MTM199908-200208

sub90366-40129

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90366-40094iZZT23#..MTM199908-200208

main90366-44001iZZT23#..4FC199908-200208

41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)

main90560-41003iZZT23#..MTM199908-200208

41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)

main90564-41014iZZT23#..MTM199908-200208

main90564-41015iZZT23#..MTM199908-200208

main90564-41016iZZT23#..MTM199908-200208

main90564-41017iZZT23#..MTM199908-200208

main90564-41018iZZT23#..MTM199908-200208

main90564-41019iZZT23#..MTM199908-200208

main90564-41020iZZT23#..MTM199908-200208

main90564-41021iZZT23#..MTM199908-200208

main90564-41022iZZT23#..MTM199908-200208

main90564-41023iZZT23#..MTM199908-200208

main90564-41024iZZT23#..MTM199908-200208

main90564-41025iZZT23#..MTM199908-200208

main90564-41026iZZT23#..MTM199908-200208

main90564-41027iZZT23#..MTM199908-200208

main90564-41028iZZT23#..MTM199908-200208

main90564-41029iZZT23#..MTM199908-200208

main90564-41030iZZT23#..MTM199908-200208

main90564-41031iZZT23#..MTM199908-200208

main90564-41032iZZT23#..MTM199908-200208

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-32010iZZT23#199908-200409

41341FPINION, FRONT DIFFERENTIAL

main41341-30011iZZT23#199908-200409

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iZZT23#199908-200208

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-32020iZZT23#199908-200208

sub41342-52060

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-32010iZZT23#199908-200208

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-17010iZZT23#..4FC199908-200208

main41361-17020iZZT23#..4FC199908-200208

main41361-17030iZZT23#..4FC199908-200208

main41361-17040iZZT23#..4FC199908-200208

main41361-17050iZZT23#..4FC199908-200208

main41361-17060iZZT23#..4FC199908-200208

main41361-22020iZZT23#..MTM199908-200208

main41361-22030iZZT23#..MTM199908-200208

main41361-22040iZZT23#..MTM199908-200208

main41361-22140iZZT23#..MTM199908-200208

main41361-22150iZZT23#..MTM199908-200208

main41361-22160iZZT23#..MTM199908-200208

4302

19 parts on this diagram · 4 diagrams in section
