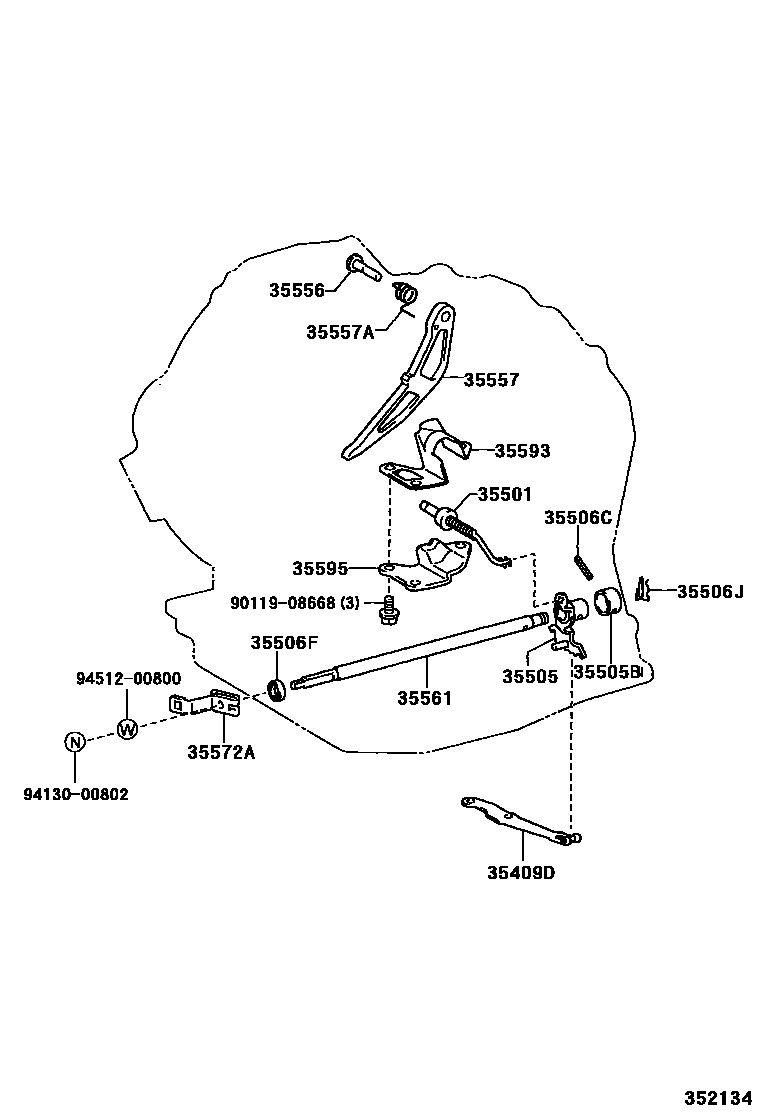

THROTTLE LINK & VALVE LEVER (ATM)

0001 1U341E 0002 1U240E

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-52020iZZT230..4FC199908-200208

35501ROD SUB-ASSY, PARKING LOCK

main35501-21010iZZT231..4FC199908-200208

main35501-52020iZZT230..4FC199908-200208

sub35501-52021

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-20030iZZT230..4FC199908-200208

main35505-21010iZZT231..4FC199908-200208

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iZZT23#..4FC199908-200208

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iZZT230..4FC199908-200208

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iZZT23#..4FC199908-200208

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iZZT23#..4FC199908-200208

35556SHAFT, PARKING LOCK PAWL

main35556-32020iZZT230..4FC199908-200208

main35556-32030iZZT231..4FC199908-200208

35557PAWL, PARKING LOCK

main35557-52020iZZT230..4FC199908-200208

sub35557-52021

main35590-32010iZZT231..4FC199908-200208

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90506-18077iZZT231..4FC199908-200208

main90949-03089iZZT230..4FC199908-200208

35561SHAFT, MANUAL VALVE LEVER

main35561-21010iZZT231..4FC199908-200208

main35561-52020iZZT230..4FC199908-200208

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-20250iZZT230..4FC199908-200208

main35572-48010iZZT231..4FC199908-200208

35593SLEEVE, CAM GUIDE

main35593-52010iZZT230..4FC199908-200208

35595BRACKET, PARKING LOCK PAWL

main35595-21010iZZT231..4FC199908-200208

main35595-52020iZZT230..4FC199908-200208

9011908668

main90119-08668

9413000802

main94130-00802

9451200800

main94512-00800

17 parts on this diagram · 2 diagrams in section
