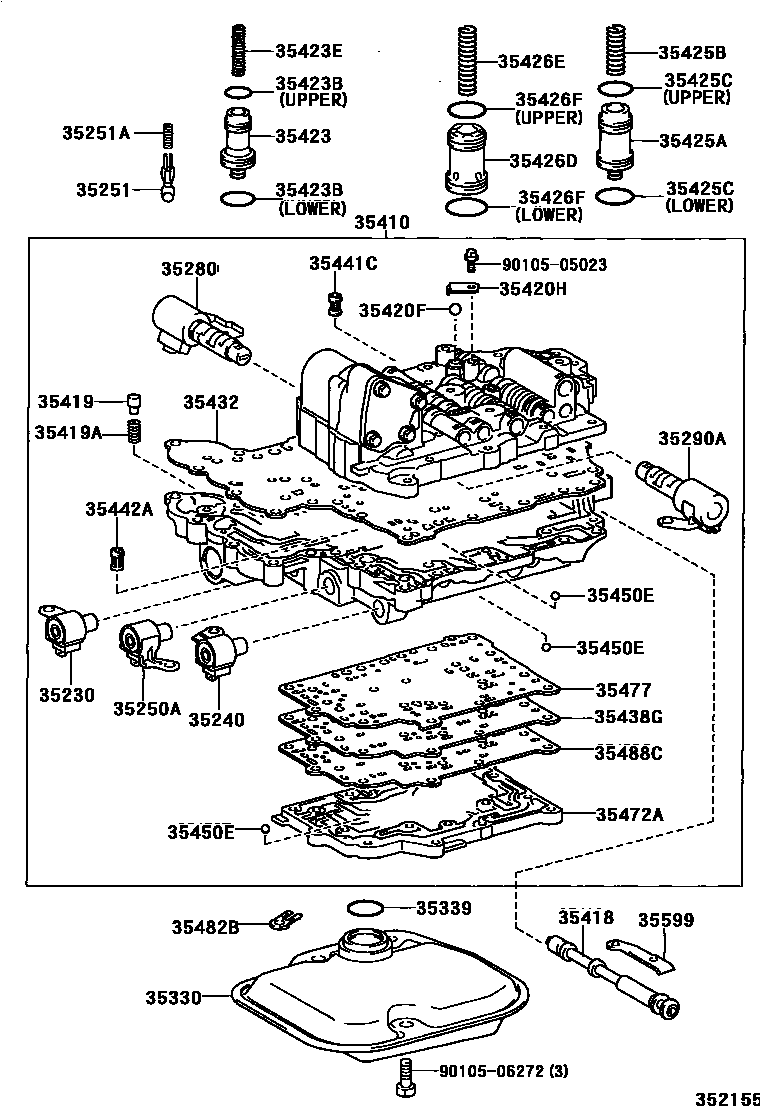

VALVE BODY & OIL STRAINER (ATM)
35230SOLENOID ASSY, TRANSMISSION 3WAY, NO.2
35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY
35250ASOLENOID ASSY, TRANSMISSION, NO.3
35251BODY, CHECK BALL
35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)
35280SOLENOID ASSY, LOCK UP CONTROL
35290ASOLENOID ASSY, LINE PRESSURE CONTROL
35330STRAINER ASSY, VALVE BODY OIL
35339GASKET, OIL STRAINER
35410BODY ASSY, TRANSMISSION VALVE
35418VALVE, MANUAL
35419VALVE, CHECK, NO.1
35419ASPRING, COMPRESSION (FOR CHECK VALVE)
35420FBALL, CHECK, NO.1
35420HCOVER, CHECK BALL
35423PISTON, B-2 ACCUMULATOR
35423BRING, O (FOR B-2 ACCUMULATOR PISTON)
35423ESPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON)
35425APISTON, C-2 ACCUMULATOR
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
35426DPISTON, C-3 ACCUMULATOR
35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)
35426FRING, O (FOR C-3 ACCUMULATOR PISTON)
35432PLATE, VALVE BODY, NO.1
35438GPLATE, VALVE BODY, NO.2
35441CSTRAINER, SOLENOID OIL
35442STRAINER, THROTTLE MODULATOR OIL
35442ASTRAINER, SOLENOID OIL, NO.2
35450EBALL (FOR UPPER VALVE BODY)
35472ACOVER, LOWER VALVE BODY
35477GASKET, VALVE BODY COVER
35482BCLAMP, TEMPERATURE SENSOR
35488CGASKET, VALVE BODY COVER, NO.2
35599COVER, MANUAL DETENT SPRING
9010505023
9010506272
37 parts on this diagram · 12 diagrams in section
