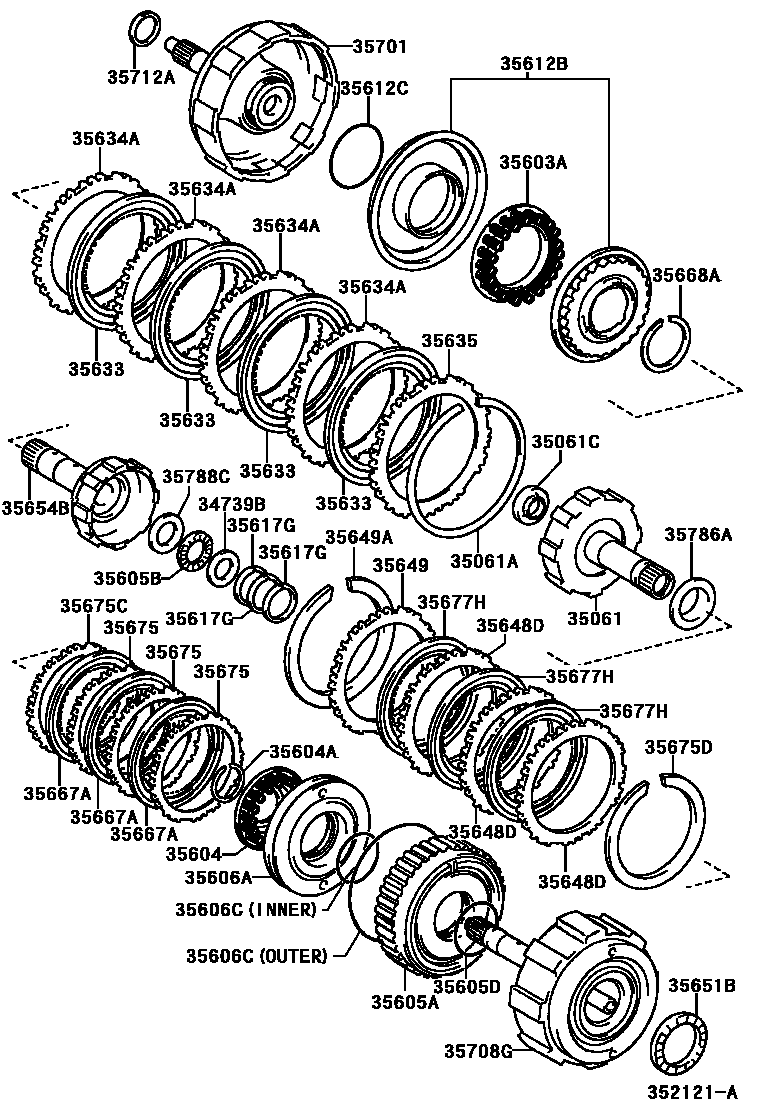

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
34739BRACE, THRUST BEARING(FOR C2 HUB)
35061HUB SUB-ASSY, FORWARD CLUTCH
35061ARING, HOLE SNAP(FOR FORWARD CLUTCH FLANGE)
35061CBEARING, THRUST NEEDLE ROLLER(FOR FORWARD CLUTCH HUB)
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35604ARING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON)
35605DRING, O(FOR DIRECT CLUTCH DRUM)
35606APISTON SUB-ASSY, DIRECT CLUTCH
35606CRING, O (FOR DIRECT CLUTCH PISTON)
35612BPISTON, FORWARD CLUTCH
35612CRING, O(FOR FORWARD CLUTCH PISTON)
35617GRING, CLUTCH DRUM OIL SEAL
35633DISC, CLUTCH (FOR FRONT CLUTCH)
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35635FLANGE, FORWARD CLUTCH
35648DPLATE, CLUTCH, NO.3
35649FLANGE, REVERSE CLUTCH
35649ARING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE)
35651BBEARING, THRUST NEEDLE ROLLER (FOR REAR CLUTCH DRUM)
35654BHUB, DIRECT CLUTCH
35667ADISK, DIRECT CLUTCH
35668ARING, SNAP(FOR CLUTCH BALANCER)
35675FLANGE, REAR CLUTCH
35675CFLANGE, DIRECT CLUTCH
35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)
35677HDISC, REVERCE CLUTCH
35708GSHAFT SUB-ASSY, INTERMEDIATE
35786ARACE, THRUST BEARING, NO.1
35788CRACE, THRUST BEARING, NO.3
34 parts on this diagram · 2 diagrams in section
