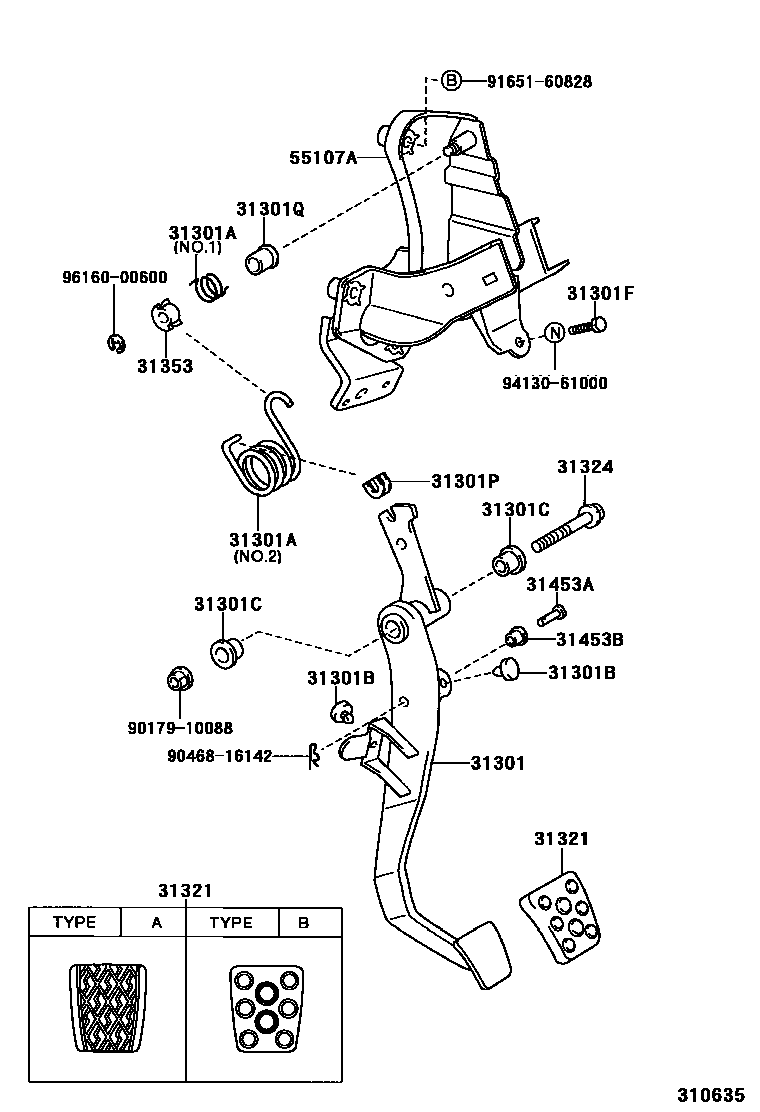

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-20500iZZT23#..MTM199908-200208

31301ASPRING(FOR CLUTCH PEDAL)

main90949-03017iZZT23#..MTM199908-200208

main90949-03090iZZT23#..MTM199908-200208

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iZZT23#..MTM199908-200208

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iZZT23#..MTM199908-200208

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iZZT23#..MTM199908-200208

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iZZT23#..MTM199908-200208

31301QBUSH(FOR CLUTCH PEDAL SPRING)

main90386-13015iZZT23#..MTM199908-200208

31321PAD, CLUTCH PEDAL

main31321-12040iZZT23#..MTM199908-200208

main31321-53010iZZT231..6F199908-200208

31324SHAFT, CLUTCH PEDAL

main90109-10167iZZT23#..MTM199908-200208

31353HOLDER, CLUTCH PEDAL SPRING

main31353-35010iZZT23#..MTM199908-200208

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main47148-12010iZZT23#..MTM199908-200208

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iZZT23#..MTM199908-200208

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-20440iZZT23#..MTM199908-200208

9017910088

main90179-10088

9046816142

main90468-16142

9165160828

main91651-60828

9413061000

main94130-61000

9616000600

main96160-00600

18 parts on this diagram · 2 diagrams in section
