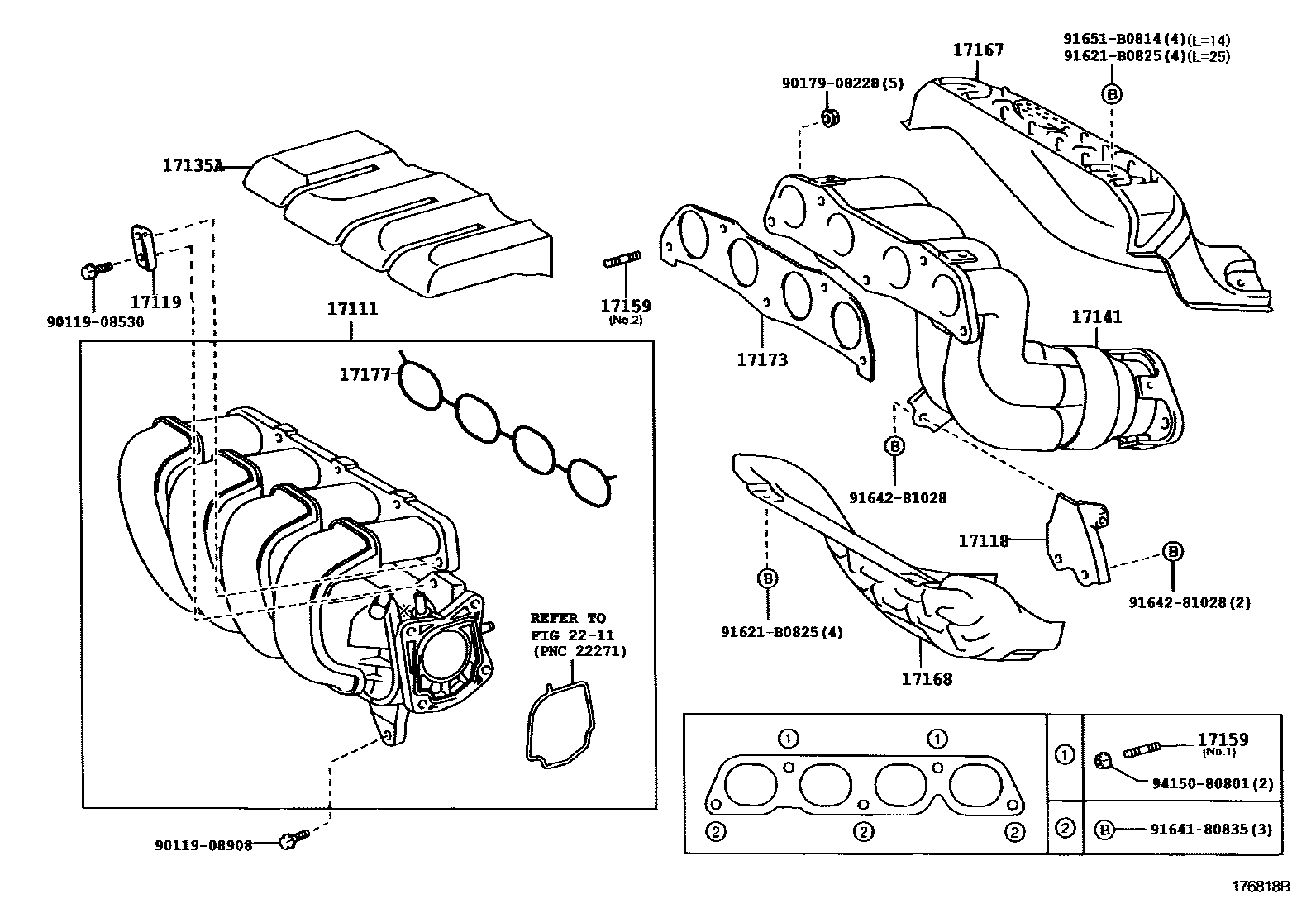

MANIFOLD

0001 1 0002 1

17111MANIFOLD, INTAKE

main17120-22010i1ZZFE..ZZT230199908-200208

17118STAY, MANIFOLD

main17118-22010i2ZZGE..ZZT231199908-200208

main17118-22020i1ZZFE..ZZT230199908-200208

17119STAY, MANIFOLD, NO.2

main17139-22030i1ZZFE..ZZT230199908-200208

17135AINSULATOR, INTAKE MANIFOLD, NO.1

main17135-22010i1ZZFE..ZZT230199908-200208

main17135-88600i2ZZGE..ZZT231199908-200208

17141MANIFOLD, EXHAUST

main17104-22050i1ZZFE..ZZT230199908-200604

main17141-88600i2ZZGE..ZZT231199908-200303

sub17141-88H00

main17141-88601i2ZZGE..ZZT231200303-200604

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-10169i2ZZGE..ZZT231199908-200208

main90126-08026i1ZZFE..ZZT230199908-200208

main90126-08037i1ZZFE..ZZT230199908-200111

main90126-08043i1ZZFE..ZZT230200111-200208

main92122-80822i2ZZGE..ZZT231199908-200208

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-22040i1ZZFE..ZZT230199908-200308

sub17167-22041

sub91621-B0825

main17167-22041i1ZZFE..ZZT230200308-200604

main17167-22110i2ZZGE..ZZT231200302-200604

main17167-88600i2ZZGE..ZZT231199908-200008

sub17167-88602

main17167-88602i2ZZGE..ZZT231200008-200302

sub17167-22110

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-22040i1ZZFE..ZZT230199908-200604

main17168-88600i2ZZGE..ZZT231199908-200604

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-22010i1ZZFE..ZZT230199908-200208

main17173-88600i2ZZGE..ZZT231199908-200303

main17173-88601i2ZZGE..ZZT231200303

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-22030i1ZZFE..ZZT230199908-200208

main17177-22010i2ZZGE..ZZT231200306

main17177-88600i2ZZGE..ZZT231199908-200306

sub17177-22010

2211

9011908530

main90119-08530

9011908908

main90119-08908

9017908228

main90179-08228

91621B0825

main91621-B0825

9164180835

main91641-80835

9164281028

main91642-81028

91651B0814

main91651-B0814

9415080801

main94150-80801

19 parts on this diagram · 2 diagrams in section
