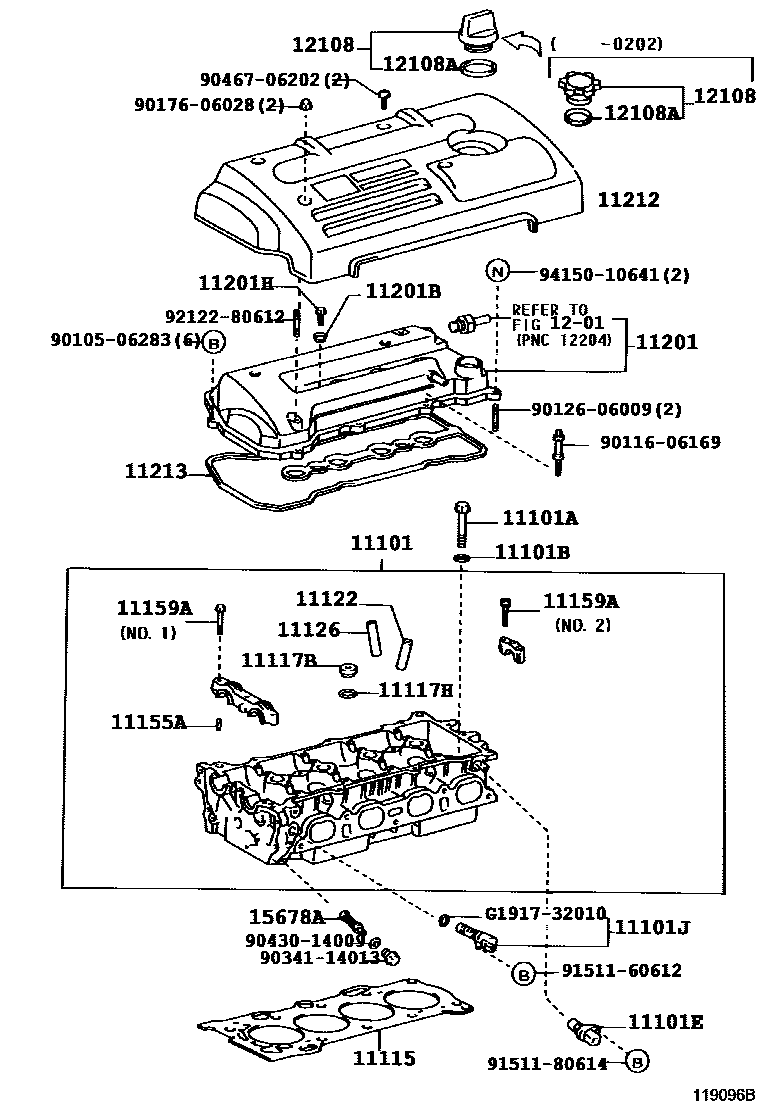

CYLINDER HEAD

0001 1 0002 1

11101HEAD SUB-ASSY, CYLINDER

main11101-22051i1ZZFE..ZZT230199908-200206

sub11101-22052

main11101-22052i1ZZFE..ZZT230200206-200208

main11101-29445i2ZZGE..ZZT231199908-200008

sub11101-29446

main11101-29446i2ZZGE..ZZT231200008-200203

sub11101-29465

sub13715-88602

main11101-29465i2ZZGE..ZZT231200203-200303

sub11101-29505

main11101-29475i2ZZGE..ZZT231200303

sub11101-29476

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02134i1ZZFE..ZZT230199908-200208

sub90910-02152

main90910-02140i2ZZGE..ZZT231199908-200208

main90910-02152i1ZZFE..ZZT230200208

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-10344i1ZZFE,2ZZGE..ZZT23#199908-200208

11101ESENSOR, CAM POSITION

main90919-05007i2ZZGE..ZZT231199908-200604

main90919-05026i1ZZFE..ZZT230199908-200604

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-22010i1ZZFE..ZZT230199908-200103

sub15330-22030

main15330-22020i2ZZGE..ZZT231199908-200106

sub15330-22060

main15330-22030i1ZZFE..ZZT230200103-200208

sub15330-22050

main15330-22040i2ZZGE..ZZT231200106-200208

sub15330-22060

11115GASKET, CYLINDER HEAD

main11115-22040i1ZZFE..ZZT230199908-200207

sub11115-22041

main11115-22041i1ZZFE..ZZT230200207-200302

sub11115-22050

main11115-22050i1ZZFE..ZZT230200302

main11115-22060i2ZZGE..ZZT231199908-200208

11117BPLUG, W/HEAD TAPER SCREW, NO.2

main90341-20002i1ZZFE..ZZT230199908-200208

11117HGASKET(FOR WATER HOLE)

main90430-20004i1ZZFE..ZZT230199908-200208

11122BUSH, INTAKE VALVE GUIDE

main11122-20020i1ZZFE..ZZT230200110-200208

sub11122-22040

main11122-22030i1ZZFE..ZZT230199908-200110

main11122-88600i2ZZGE..ZZT231199908-200208

main11123-20020i1ZZFE..ZZT230200110-200208

main11123-22030i1ZZFE..ZZT230199908-200110

sub11123-20020

main11123-88600i2ZZGE..ZZT231199908-200208

11126BUSH, EXHAUST VALVE GUIDE

main11122-20020i1ZZFE..ZZT230200110-200208

sub11122-22040

main11122-22030i1ZZFE..ZZT230199908-200110

main11122-88600i2ZZGE..ZZT231199908-200208

main11123-20020i1ZZFE..ZZT230200110-200208

main11123-22030i1ZZFE..ZZT230199908-200110

sub11123-20020

main11123-88600i2ZZGE..ZZT231199908-200208

11155APIN, RING W/HEAD

main90250-05021i2ZZGE..ZZT231199908-200208

main90250-06001i1ZZFE..ZZT230199908-200208

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90109-06080i1ZZFE..ZZT230199908-200208

main90119-07001i2ZZGE..ZZT231199908-200208

main90119-07002i2ZZGE..ZZT231199908-200208

main90119-08A29i1ZZFE..ZZT230199908-200208

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-22060i1ZZFE..ZZT230199908-200208

main11201-88600i2ZZGE..ZZT231199908-200208

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-06012i1ZZFE..ZZT230199908-199912

sub90210-06013

main90210-06013i1ZZFE..ZZT230199912-200208

11201HBOLT(FOR CYLINDER HEAD COVER)

main90105-06202i1ZZFE..ZZT230200202-200208

main90105-06281i1ZZFE..ZZT230199908-200202

sub90105-06202

11212COVER, CYLINDER HEAD, NO.2

main11212-22030i1ZZFE..ZZT230199908-200202

sub11212-22031

sub12180-21010

sub12180-21021

main11212-22031i1ZZFE..ZZT230200202-200208

sub11212-22901

main11212-22050i2ZZGE..ZZT231199908-200204

sub11212-22051

main11212-22051i2ZZGE..ZZT231200204-200208

sub11212-22904

11213GASKET, CYLINDER HEAD COVER

main11213-22050i1ZZFE..ZZT230199908-200208

main11213-88600i2ZZGE..ZZT231199908-200208

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-21010i1ZZFE..ZZT230200202-200208

main12180-55010i2ZZGE..ZZT231199908-200208

12108AGASKET(FOR OIL FILLER CAP)

main90430-37140i1ZZFE,2ZZGE..ZZT23#199908-200208

15678AFILTER, OIL CONTROL VALVE

main15678-21010i1ZZFE..ZZT230199908-200208

main15678-46010i2ZZGE..ZZT231199908-200208

sub15678-32010

sub15678-46020

9010506283

main90105-06283

9011606169

main90116-06169

9012606009

main90126-06009

9017606028

main90176-06028

9034114013

main90341-14013

9043014009

main90430-14009

9046706202

main90467-06202

9151160612

main91511-60612

9151180614

main91511-80614

9212280612

main92122-80612

9415010641

main94150-10641

G191732010

mainG1917-32010

33 parts on this diagram · 2 diagrams in section
