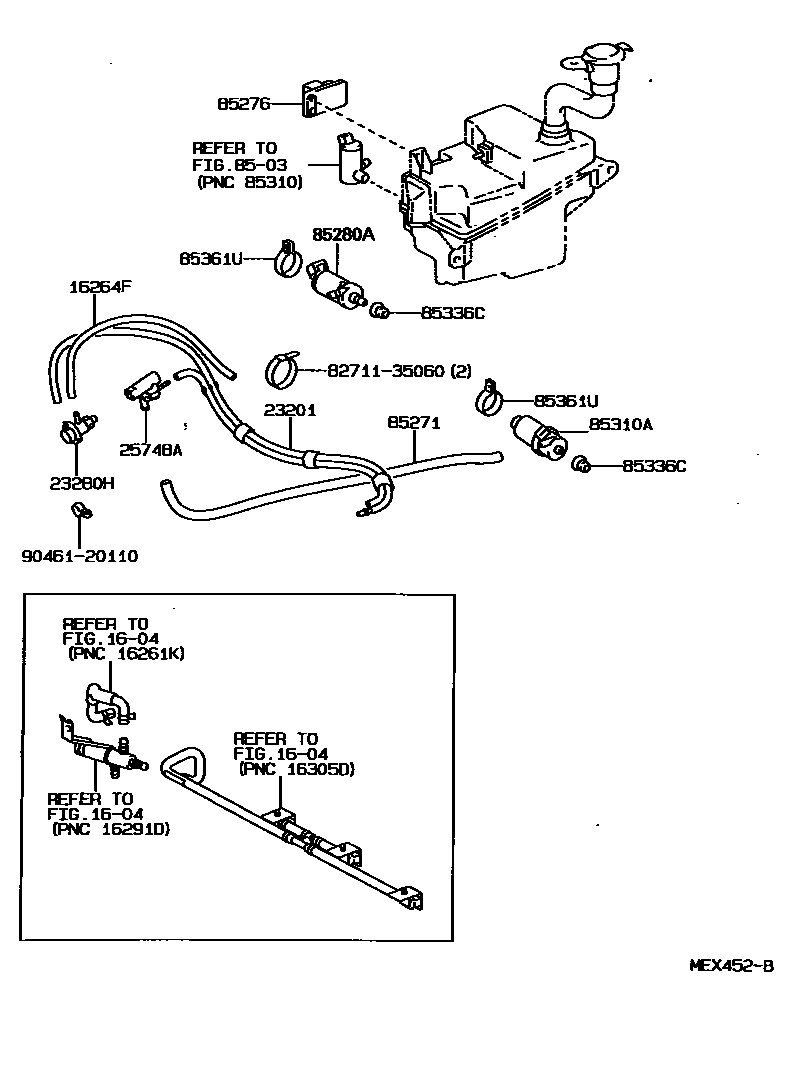

HEADLAMP CLEANER

1604

16264FHOSE, WATER BY-PASS, NO.2

main16264-74110i3SGTE..ST205199402-199508

23201HOSE SUB-ASSY(FOR WATER INJECTION)

main23201-74010i3SGTE..ST205199402-199508

23280HREGULATOR ASSY, PRESSURE

main23280-74110i3SGTE..ST205199402-199508

sub23280-74120

25748AVALVE, CHECK(FOR PRESSURE REGULATOR)

main25748-74010i3SGTE..ST205199402-199508

8503

85271HOSE, HEADLAMP CLEANER, NO.1

main85376-12380iST205199402-199410

sub85375-12760

85276RELAY, CLEANER CONTROL

main85942-33010iST205199402-199410

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

main85280-20020iST205199402-199410

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-12190iST205199402-199508

sub85310-95J02

85336CPACKING, HEADLAMP CLEANER MOTOR

main85336-10010iST205199402-199410

85361UBRACKET, HEADLAMP CLEANER WASHER

main85361-33020iST205199402-199410

8271135060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35060

9046120110

main90461-20110

14 parts on this diagram · 1 diagram in section
