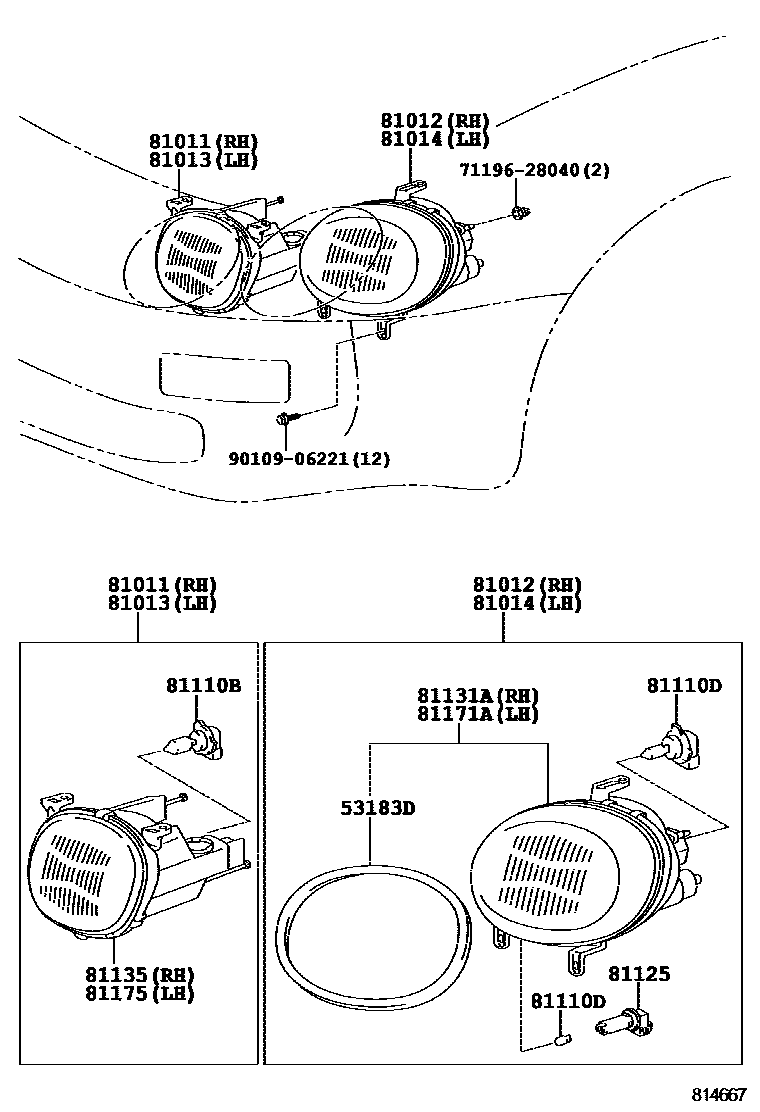

HEADLAMP

0001 1 0002 1

53183DSEAL, HEADLAMP COVER TO HOOD

main53183-20110iST20#199309-199712

main53184-20070iST20#199309-199712

81011HEADLAMP SUB-ASSY, NO.1

main81011-20010iST20#199309-199712

main81011-20050iST20#199712

81012HEADLAMP SUB-ASSY, NO.2

main81012-20010iST20#199309-199712

main81012-20100iST20#199712

81013HEADLAMP SUB-ASSY, TYPE 1, LH

main81013-20010iST20#199309-199712

main81013-20050iST20#199712

81014HEADLAMP SUB-ASSY, TYPE 2, LH

main81014-20010iST20#199309-199712

main81014-20100iST20#199712

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046iST20#199309-199712

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13017iST20#199712

main90981-13047iST20#199309-199712

main99132-12050iST20#199309-199712

81125CORD, HEADLAMP

main90075-99044iST20#199309-199712

81131AUNIT, HEADLAMP, RH

main81130-20100iST20#199712

main81131-20010iST20#199309-199712

81135UNIT ASSY, HEADLAMP, RH

main81130-20010iST20#199309-199712

main81130-20050iST20#199712

81171AUNIT, HEADLAMP, LH

main81170-20100iST20#199712

main81171-20010iST20#199309-199712

81175UNIT ASSY, HEADLAMP, LH

main81170-20010iST20#199309-199712

main81170-20050iST20#199712

7119628040CLIP(FOR REAR SPOILER)

main71196-28040

9010906221

main90109-06221

14 parts on this diagram · 2 diagrams in section
