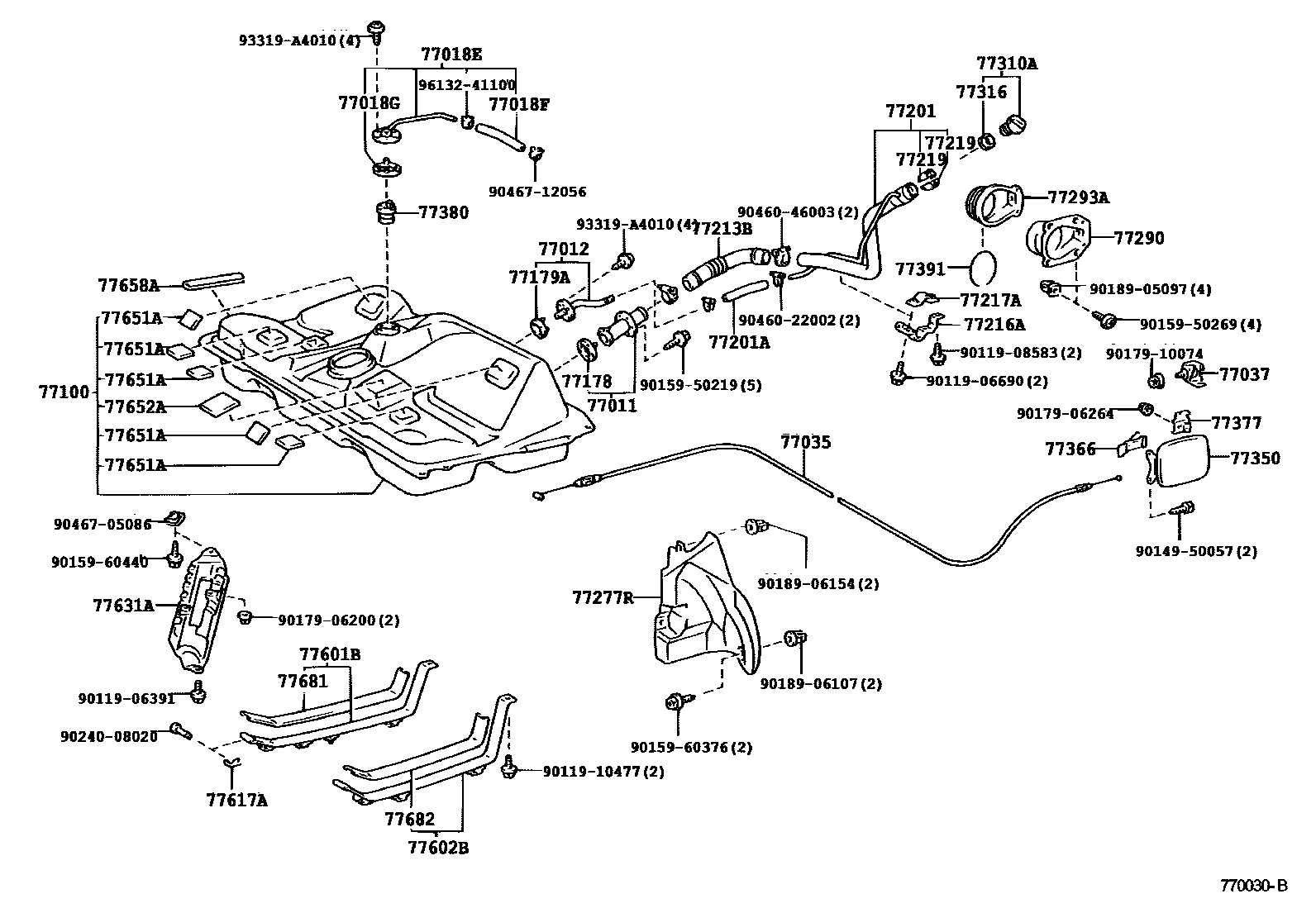

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-20050iST202,203199309

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-20110iST202,203199309

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-20130iST205199402

main77018-20200iST202,203199309

77018FHOSE, FUEL TANK EVAPORATION VENT

main95333-06020iST202,203199312-199512

sub95337-06020

main95333-06020iST20#199309-199312

sub95337-06020

77018GGASKET, FUEL TANK EVAP/VENT TUBE

main77179-16010iST205199402

main77179-26010iST202,203199309

sub77179-26011

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-20460iST202..CV199309-199512

main77035-20490iST20#..LB199508-199512

sub77035-20460

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-20070iST20#199309-199407

main77037-20100iST20#199408

77100TANK ASSY, FUEL

main77001-20941iST202,203199309

sub77001-20946

main77001-20942iST205199402

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77169-14010iST205199402

main77178-20030iST202,203199309

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-20040iST202,203199309

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-20480iST202,203199309-199712

sub77201-20570

main77201-20510iST205199402

main77201-20560iST202..LB199712

sub77201-20570

main77201-20570iST202199712

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main95311-13016iST202199712

main95311-13017iST202,203199309-199712

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-20110iST202,203199309

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-20150iST202,203199309

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-20040iST202,203199309

77219COVER, FUEL TANK FILLER PIPE

main77219-32030iST202,203199309

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-20240iST20#199309

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-20160iST20#199309-199401

sub77290-20161

main77290-20161iST20#199401

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-20100iST20#199309

77310ACAP ASSY, FUEL TANK

main77310-16011iST20#199309-199803

sub77310-12140

main77310-48010iST20#199803

77316GASKET, FUEL TANK CAP

main77316-16010iST20#199309

77350LID ASSY, FUEL FILLER OPENING

main77350-20240iST20#..LB199309

main77350-20250iST202..CV199408

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-22020iST20#199309

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20050iST20#199309

77380VALVE ASSY, FUEL CUT OFF

main77380-14020iST205199402

main77380-26010iST202,203199309

77391RING, FUEL INLET BOX

main77391-14020iST20#199309

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-20130iST205199402

main77601-20180iST202,203199309

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-20160iST205199402

main77602-20210iST202,203199309

77617AUNION, AUXILIARY FUEL BAND

main77617-12010iST20#199309

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-20080iST202,203199309

77651ACUSHION, FUEL TANK, NO.1

main77651-20060iST205199402

main77652-12100iST202,203199309-199312

77652ACUSHION, FUEL TANK, NO.2

main77652-20090iST205199402

main77652-20110iST202,203199309-199408

sub77652-33010

main77652-33010iST202,203..LB199402-199512

sub77652-20110

77658APROTECTOR, FUEL TANK EDGE, NO.1

main77658-20020iST202,203199309-199512

77681SEAT, FUEL TANK BAND, RH

main77681-20040iST205199402

main77681-32060iST202,203199309

77682SEAT, FUEL TANK BAND, LH

main77681-20040iST205199402

main77681-32060iST202,203199309

9011906391

main90119-06391

9011906690

main90119-06690

9011908583

main90119-08583

9011910477

main90119-10477

9014950057

main90149-50057

9015950219

main90159-50219

9015950269

main90159-50269

9015960376

main90159-60376

9015960440

main90159-60440

9017906200

main90179-06200

9017906264

main90179-06264

9017910074

main90179-10074

9018905097

main90189-05097

9018906107

main90189-06107

9018906154

main90189-06154

9024008020

main90240-08020

9046022002

main90460-22002

9046046003

main90460-46003

9046705086

main90467-05086

9046712056

main90467-12056

93319A4010

main93319-A4010

9613241100

main96132-41100

57 parts on this diagram · 4 diagrams in section
