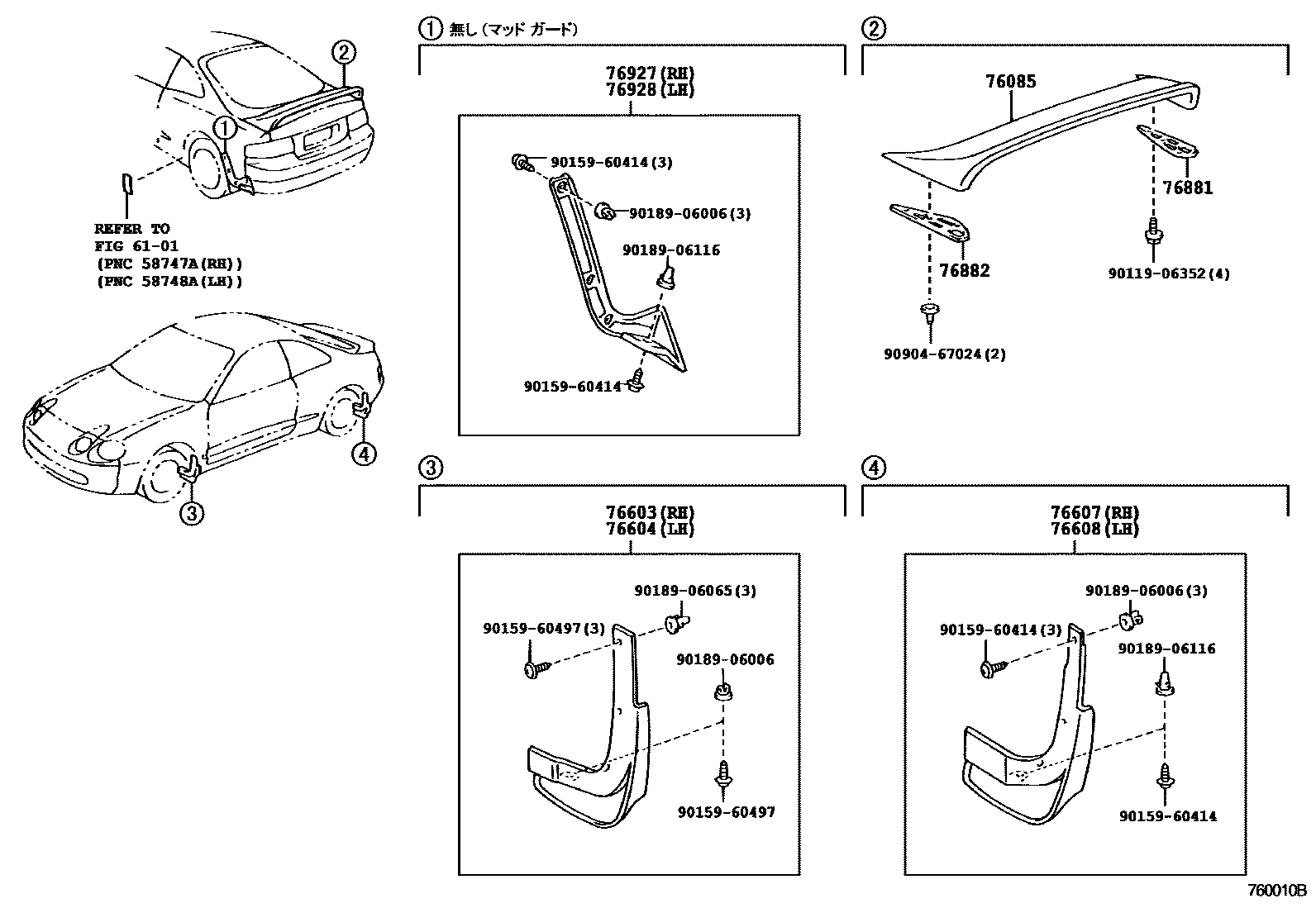

MUDGUARD & SPOILER

0001 1 0002 1(WRC ���) 0004 1 0005 1 0007 1

6101

76085SPOILER SUB-ASSY, REAR

main76085-20915iST20#..LB199309-199508

sub76085-20920

main76085-20918iST205199402-199410

main76870-20916iST20#..GT4,SS3199712

main76871-20911iST20#..LB199508-199712

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-29165iST20#..LB199309-199712

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-29165iST20#..LB199309-199712

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-29195iST20#199309-199712

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-29195iST20#..CV,GT4,SS1,SS2199309-199712

76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH

main76881-20080iST20#..LB199309-199508

main76881-20090iST205199402-199410

main76881-20090iST20#..GT4,SS3199712

76882PROTECTOR, REAR SPOILER SIDE, NO.1 LH

main76882-20080iST20#..LB199309-199508

main76882-20090iST20#..GT4,SS3199712

main76882-20090iST205199402-199410

76927PROTECTER, REAR MUDGUARD, RH

main76927-29015iST20#199309-199712

76928PROTECTER, REAR MUDGUARD, LH

main76928-29015iST20#199309-199712

9011906352

main90119-06352

9015960414

main90159-60414

9015960497

main90159-60497

9018906006

main90189-06006

9018906065

main90189-06065

9018906116

main90189-06116

9090467024

main90904-67024

17 parts on this diagram · 5 diagrams in section
