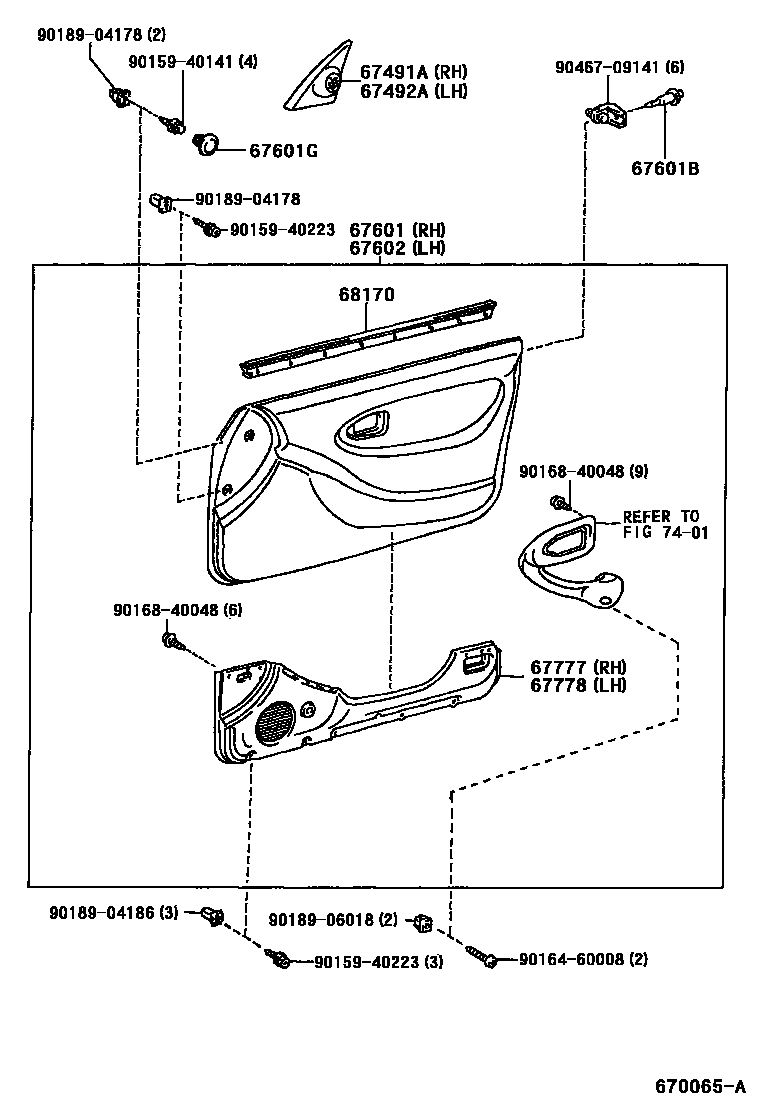

FRONT DOOR PANEL & GLASS
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
sub67610-2G150
sub67650-2D601
sub67650-2D761
sub67650-2D851
sub67650-2D851
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
sub67620-2L150
sub67620-2L561
sub67620-2L571
sub67620-2L621
sub67620-2L621
67777POCKET, FRONT DOOR TRIM, RH
sub67777-20250
67778POCKET, FRONT DOOR TRIM, LH
sub67778-20250
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
7401
9015940141
main90159-40141
9015940223
main90159-40223
9016460008
main90164-60008
9016840048
main90168-40048
9018904178
main90189-04178
9018904186
main90189-04186
9018906018
main90189-06018
9046709141
main90467-09141
18 parts on this diagram · 3 diagrams in section
