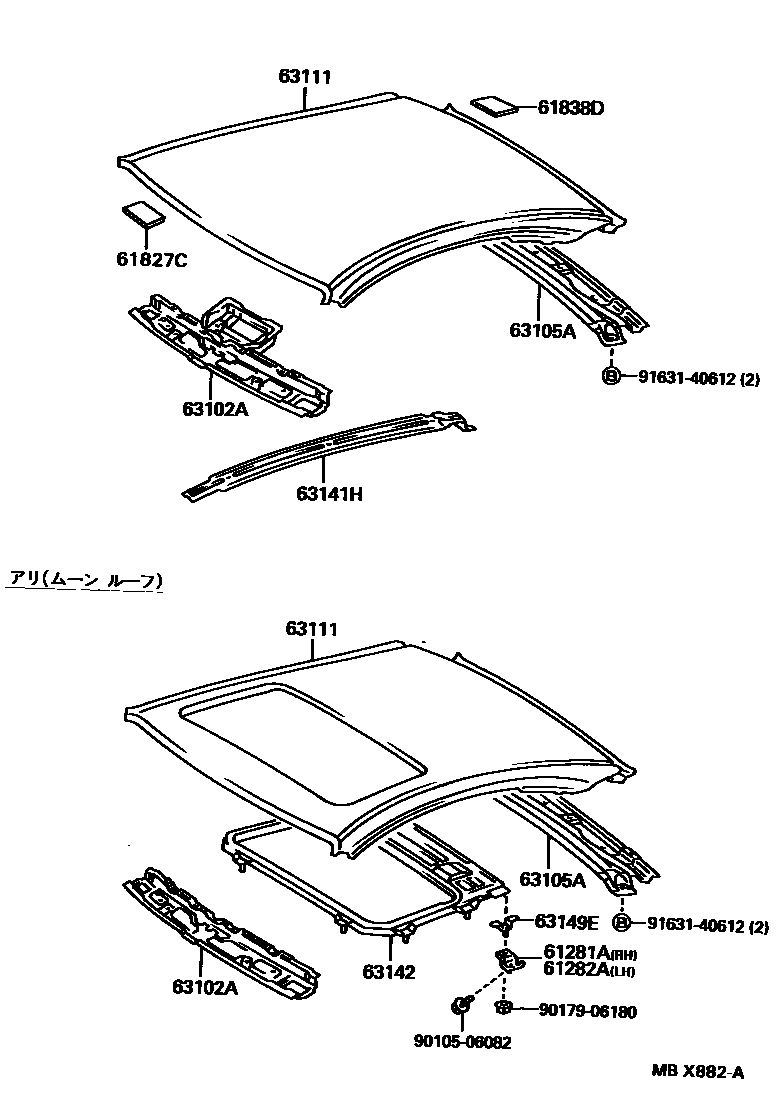

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-20050iST20#199309-199312

main61281-20050iST20#..LB199312

main61281-20080iST20#199309-199312

sub61281-20050

61282ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.2

main61282-20020iST20#199309-199312

main61282-20020iST20#..LB199312

main61282-20030iST20#199309-199312

sub61282-20020

61827CPLATE, NOISE CONTROL, NO.4

main61827-20040iST20#..LB199309

61838DPLATE, NOISE CONTROL, NO.5

main61838-20060iST20#..LB199309

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-20280iST20#..LB199309

main63102-20290iST20#..LB199309

main63132-20230iST202..CV199408

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-20100iST20#..LB199309

63111PANEL, ROOF

main63111-20510iST20#..LB199309

main63111-20520iST20#..LB199309

main63111-20530iST202..CV199408

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-20180iST20#..LB199309

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-20090iST20#..LB199309

63149EBRACKET, ROOF PANEL REINFORCEMENT, NO.2

main63149-20040iST20#..LB199309

9010506082

main90105-06082

9017906180

main90179-06180

9163140612

main91631-40612

13 parts on this diagram · 3 diagrams in section
