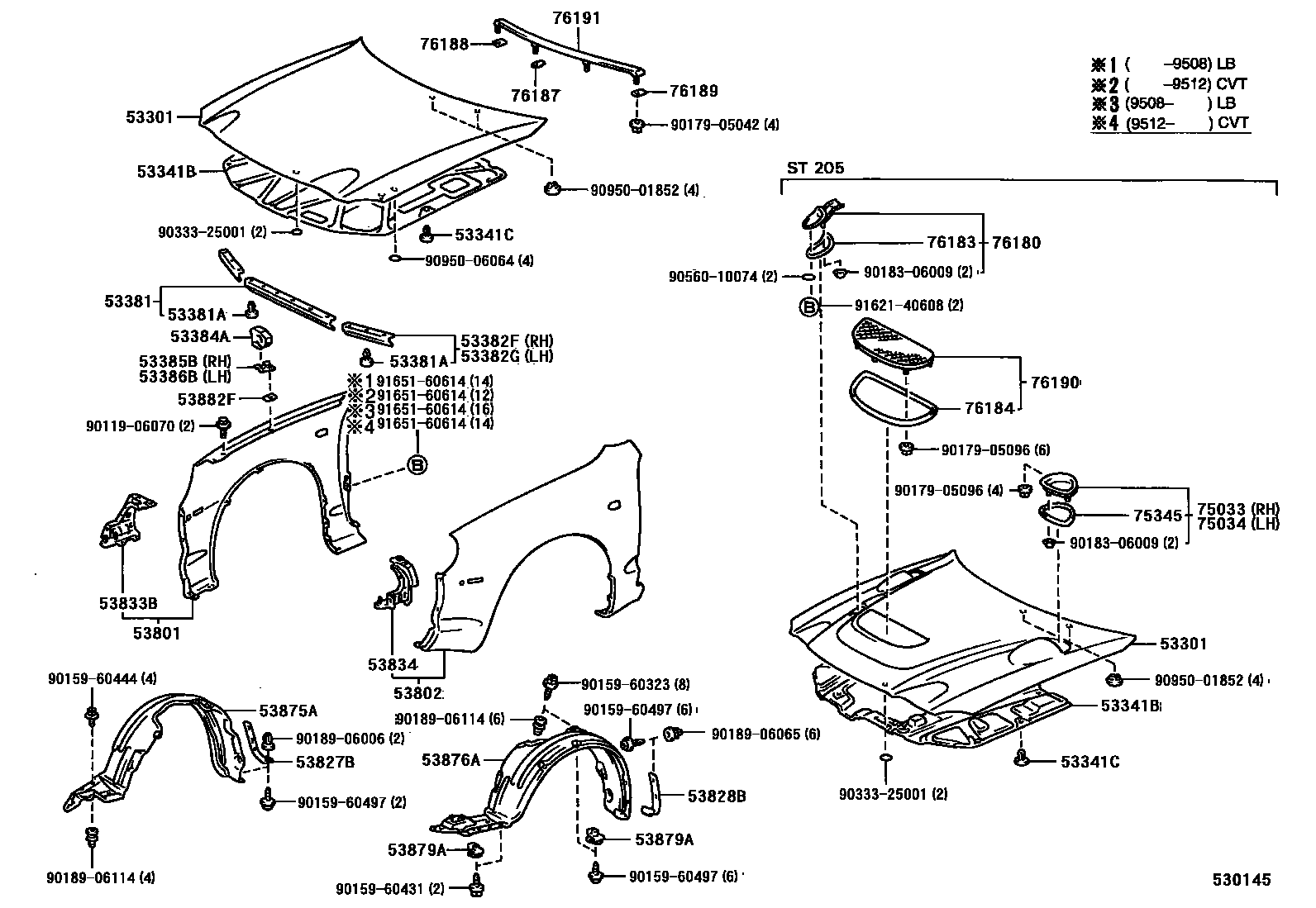

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53382FSEAL, HOOD TO RADIATOR SUPPORT, RH
53382GSEAL, HOOD TO RADIATOR SUPPORT, LH
53384ABUMPER, FENDER TO HOOD
53385BBRACKET, FENDER TO HOOD BUMPER, RH
53386BBRACKET, FENDER TO HOOD BUMPER, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53827BPROTECTOR, FRONT FENDER SIDE PANEL
53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH
53833BPANEL, FRONT FENDER SIDE, RH
53834PANEL, FRONT FENDER SIDE, LOWER LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53882FSEAL, FRONT FENDER
75033ORNAMENT SUB-ASSY, HOOD, RH
SUPER WHITE 2,040
SILVER ME,199
DK.BL.GRAY ME,183
BLACK,202
SUPER RED 2,3L2
SUPER BRIGHT YELLOW,576
DK GREEN MICA,6M1
LT.GREEN ME.,6R0
DEEP TEAL ME,752
GRAISH TURQUOISE M.M,753
BLUE M.M.,8L5
75034ORNAMENT SUB-ASSY, HOOD, LH
SUPER WHITE 2,040
SILVER ME,199
DK.BL.GRAY ME,183
BLACK,202
SUPER RED 2,3L2
SUPER BRIGHT YELLOW,576
DK GREEN MICA,6M1
LT.GREEN ME.,6R0
DEEP TEAL ME,752
GRAISH TURQUOISE M.M,753
BLUE M.M.,8L5
75345PAD, HOOD ORNAMENT, NO.1
76180BULGE ASSY, HOOD
SUPER WHITE 2,040
SILVER ME,199
DK.BL.GRAY ME,183
BLACK,202
SUPER RED 2,3L2
SUPER BRIGHT YELLOW,576
DK GREEN MICA,6M1
LT.GREEN ME.,6R0
DEEP TEAL ME,752
GRAISH TURQUOISE M.M,753
BLUE M.M.,8L5
76183PROTECTOR, HOOD BULGE, NO.1
76184PROTECTOR, HOOD BULGE, NO.2
76187RETAINER, HOOD AIR INTAKE GUIDE, NO.1
76188RETAINER, HOOD AIR INTAKE GUIDE, NO.2
76189RETAINER, HOOD AIR INTAKE GUIDE, NO.3
76190PLATE ASSY, HOOD BULGE
76191GUIDE, AIR TO COWL
9011906070
main90119-06070
9015960323
main90159-60323
9015960431
main90159-60431
9015960444
main90159-60444
9015960497
main90159-60497
9017905042
main90179-05042
9017905096
main90179-05096
9018306009
main90183-06009
9018906006
main90189-06006
9018906065
main90189-06065
9018906114
main90189-06114
9033325001
main90333-25001
9056010074
main90560-10074
9095001852
main90950-01852
9095006064
main90950-06064
9162140608
main91621-40608
9165160614
main91651-60614
48 parts on this diagram · 1 diagram in section
