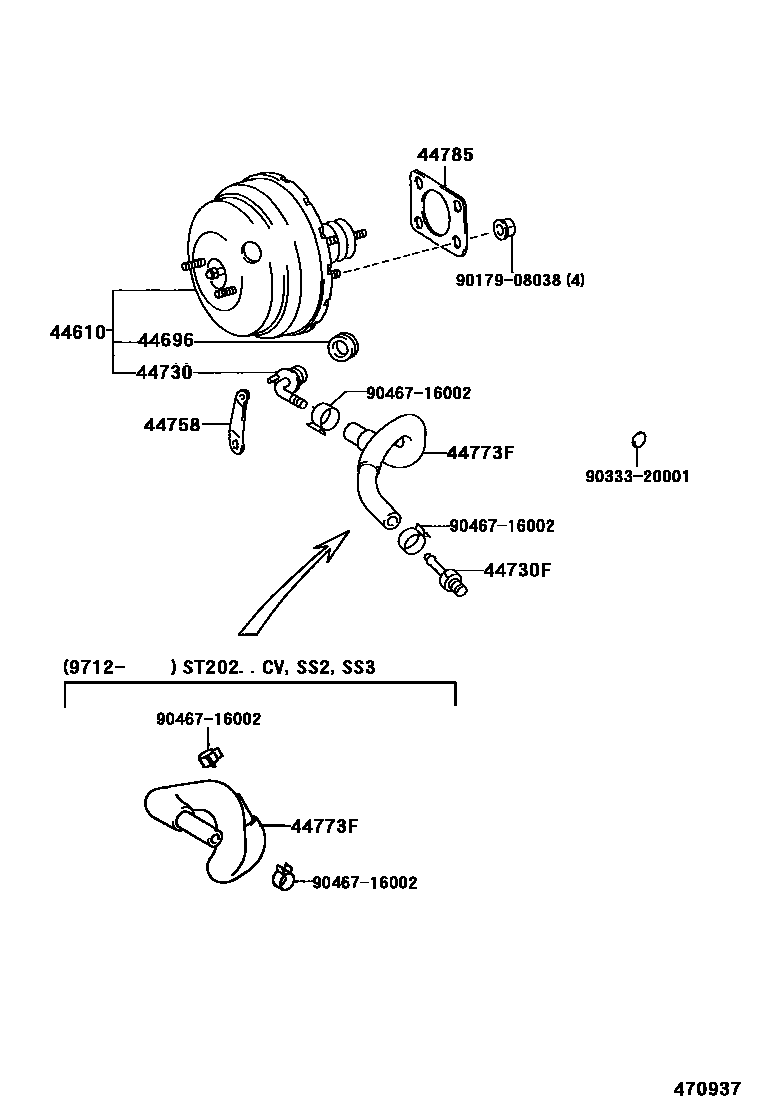

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-2D610iST205199402-199405

main44610-2D610iST202,205..GT4,SS2199411-199712

main44610-2D610iST202..SS2199309-199411

main44610-2D610iST205199402-199411

main44610-2D640iST202..SS1199309-199908

main44610-2D660iST202,205..GT4,SS3199411-199712

main44610-2D720iST205199405-199908

main44610-2D870iST202..CV,SS2,SS3199712-199908

44696GROMMET, CHECK VALVE

main90480-24015iST202,205..GT4,SS2199411-199712

main90480-24015iST205199405

main90480-24439iST202,205..GT4,SS3199411-199712

main90480-24439iST20#199309-199411

main90480-24439iST202..SS3199712

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iST202199309-199712

main44730-14050iST202,205..GT4,SS2199411-199712

main44730-28010iST202,205..GT4,SS2199411-199712

main44730-28010iST205199405

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51046iST205199402

main90404-51319iST202..SS1199309-199712

44758BRACKET, VACUUM CHECK VALVE

main44758-20280iST20#199309-199712

main44758-20310iST202..CV,SS2,SS3199712

44773FHOSE, UNION TO CHECK VALVE

main44773-2B010iST202,203..SS1199606

main44773-2B020iST202,203..SS1199309-199606

main44773-2B030iST205199402

main44773-2B040iST202..CV,SS2,SS3199309-199712

main44773-2B140iST202..CV,SS2,SS3199712

44785GASKET, BRAKE BOOSTER

main44785-20020iST20#199309

9017908038

main90179-08038

9033320001

main90333-20001

9046716002

main90467-16002

10 parts on this diagram · 1 diagram in section
