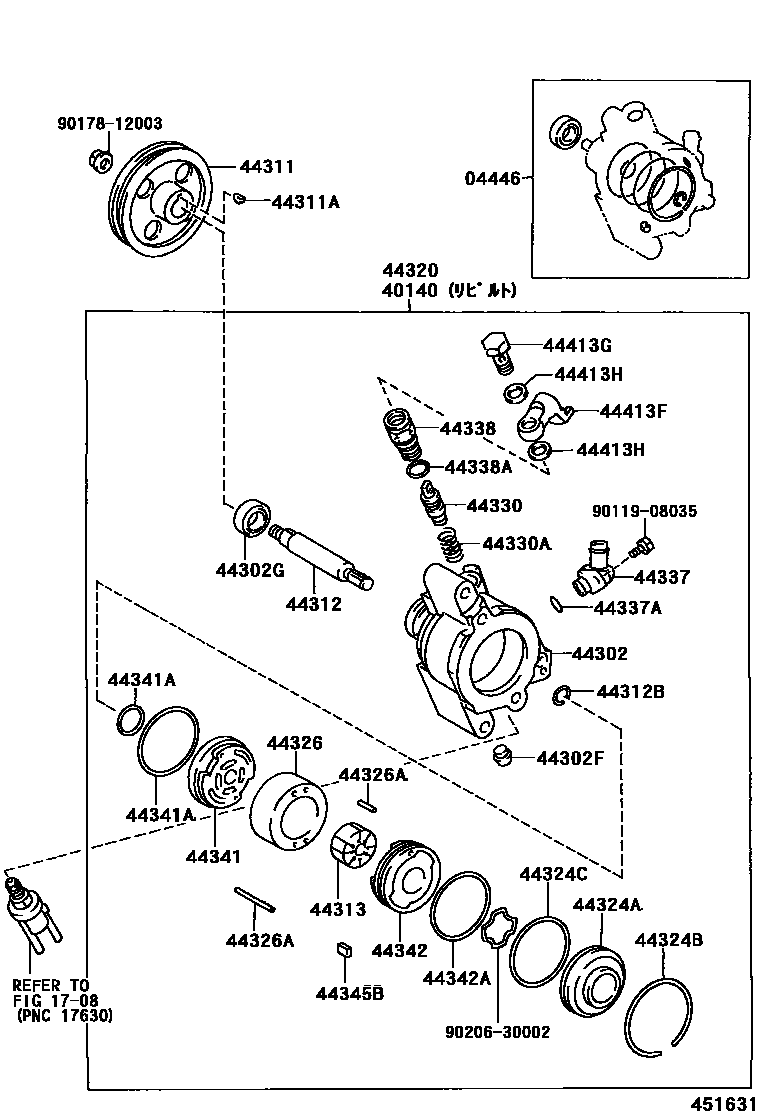

VANE PUMP & RESERVOIR (POWER STEERING)
1708
44302HOUSING SUB-ASSY, VANE PUMP, FRONT
44302FSEAT, UNION(FOR VANE PUMP HOUSING)
44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44311PULLEY, VANE PUMP
44311AKEY, VANE PUMP PULLEY
44312SHAFT, VANE PUMP
44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44313ROTOR, VANE PUMP
44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)
44326RING, CAM(FOR VANE PUMP)
44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)
44330VALVE ASSY, FLOW CONTROL
sub44330-35250
sub44330-35260
sub44330-35270
sub44330-35280
sub44330-35290
sub44330-35300
sub44330-26190
sub44330-26200
sub44330-26210
sub44330-26220
sub44330-26230
sub44330-26240
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44337UNION, POWER STEERING SUCTION PORT
44338UNION, PRESSURE PORT
44341PLATE, VANE PUMP SIDE, FRONT
44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)
44342PLATE, VANE PUMP SIDE, REAR
44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)
44345BPLATE, VANE PUMP
44413FTUBE, PRESSURE FEED, NO.2
44413GBOLT, UNION(FOR PRESSURE FEED TUBE NO.2)
44413HGASKET(FOR PRESSURE FEED TUBE NO.2)
9011908035
main90119-08035
9017812003
main90178-12003
9020630002
main90206-30002
34 parts on this diagram · 2 diagrams in section
