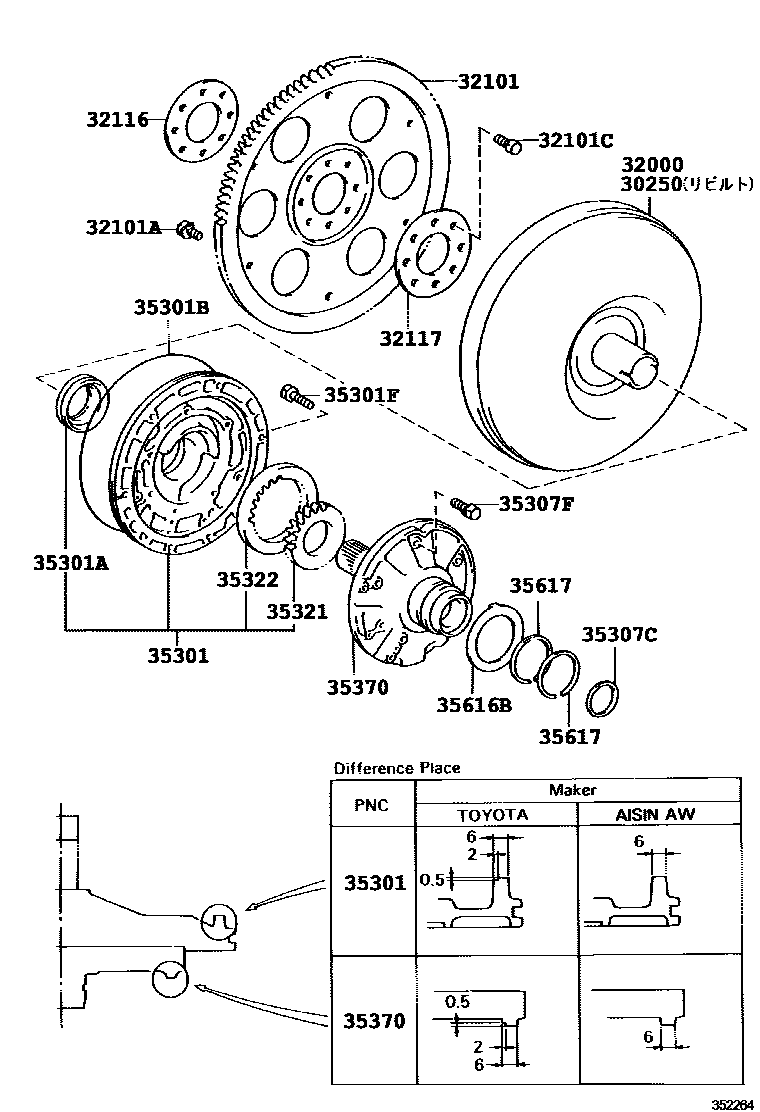

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-20190iST202..ATM..SS1199309-199908

main30250-21050iST202..ATM..(CV,SS2,SS3)199712-199908

32000CONVERTER ASSY, TORQUE

main32000-20190iST202,203..ATM199309-199908

main32000-21050iST202..ATM..(SS2,SS3)199712-199908

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-20081iST202..ATM..(CV,SS2,SS3)199309-199712

main32101-20110iST202..ATM..(CV,SS2,SS3)199712

main32101-32050iST202,203..ATM..SS1199309-199406

sub32101-32051

main32101-32051iST202,203..ATM..SS1199406

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iST202,203..ATM199309-199712

main90109-09001iST202..ATM..(CV,SS2,SS3)199712

main90119-08498iST202,203..ATM199309-199712

main90119-09025iST202..ATM..(CV,SS2,SS3)199712

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12184iST202..ATM..(CV,SS2,SS3)199309-199712

sub90105-12384

main90109-10054iST202,203..ATM..SS1199309

32116SPACER, DRIVE PLATE, FRONT

main32116-20050iST202..ATM..(CV,SS2,SS3)199309-199712

main32116-32011iST202,203..ATM..SS1199309

32117SPACER, DRIVE PLATE, REAR

main32117-20060iST202..ATM..(CV,SS2,SS3)199309-199712

main32117-32010iST202,203..ATM..SS1199309

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-12010iST202..ATM..(CV,SS2,SS3)199712-199903

main35035-32010iST202,203..ATM199309-199712

main35035-32020iST202..ATM..SS1199309-199712

sub35035-32H00

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iST202..LB..ATM199309-199908

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99024iST202,203..ATM199309-199903

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08050iST202,203..ATM199309-199712

main90105-08198iST202..ATM..(CV,SS2,SS3)199712-199903

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-32020iST202,203..ATM199309-199908

main35789-32030iST202,203..ATM199508-199908

35307FBOLT (FOR STATOR SHAFT)

main90119-06180iST202,203..ATM199309-199512

main90119-06808iST202..LB..ATM199512-199903

sub90119-06559

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12020iST202..ATM..(CV,SS2,SS3)199712-199903

main35321-12030iST202..ATM..(SS2,SS3)199712-199903

main35321-12040iST202..ATM..(CV,SS2,SS3)199712-199903

main35321-12050iST202..ATM..(SS2,SS3)199712-199903

main35321-12060iST202..ATM..(CV,SS2,SS3)199712-199903

main35321-12070iST202..ATM..SS1199309-199712

main35321-12080iST202..ATM..SS1199309-199712

main35321-12090iST202..ATM..SS1199309-199712

main35321-12100iST202,203..ATM199309-199712

main35321-12110iST202,203..ATM199309-199712

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12010iST202..ATM..(CV,SS2,SS3)199712-199903

main35322-12020iST202..ATM..(CV,SS2,SS3)199712-199903

main35322-12030iST202..ATM..(SS2,SS3)199712-199903

main35322-12040iST202..ATM..(SS2,SS3)199712-199903

main35322-12050iST202..ATM..(SS2,SS3)199712-199903

main35322-12060iST202..ATM..SS1199309-199712

main35322-12070iST202,203..ATM199309-199712

main35322-12080iST202,203..ATM199309-199712

main35322-12090iST202,203..ATM199309-199712

main35322-12100iST202..ATM..SS1199309-199712

35370SHAFT ASSY, STATOR

main35370-12040iST202,203..ATM199309-199712

main35370-32050iST202..ATM..SS1199309-199712

sub35035-32H00

main35370-33010iST202..ATM..(SS2,SS3)199712-199903

35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)

main35616-32010iST202,203..ATM199309-199903

35617RING, CLUTCH DRUM OIL SEAL

main35617-32011iST202,203..ATM199309-199903

18 parts on this diagram · 1 diagram in section
