CYLINDER HEAD

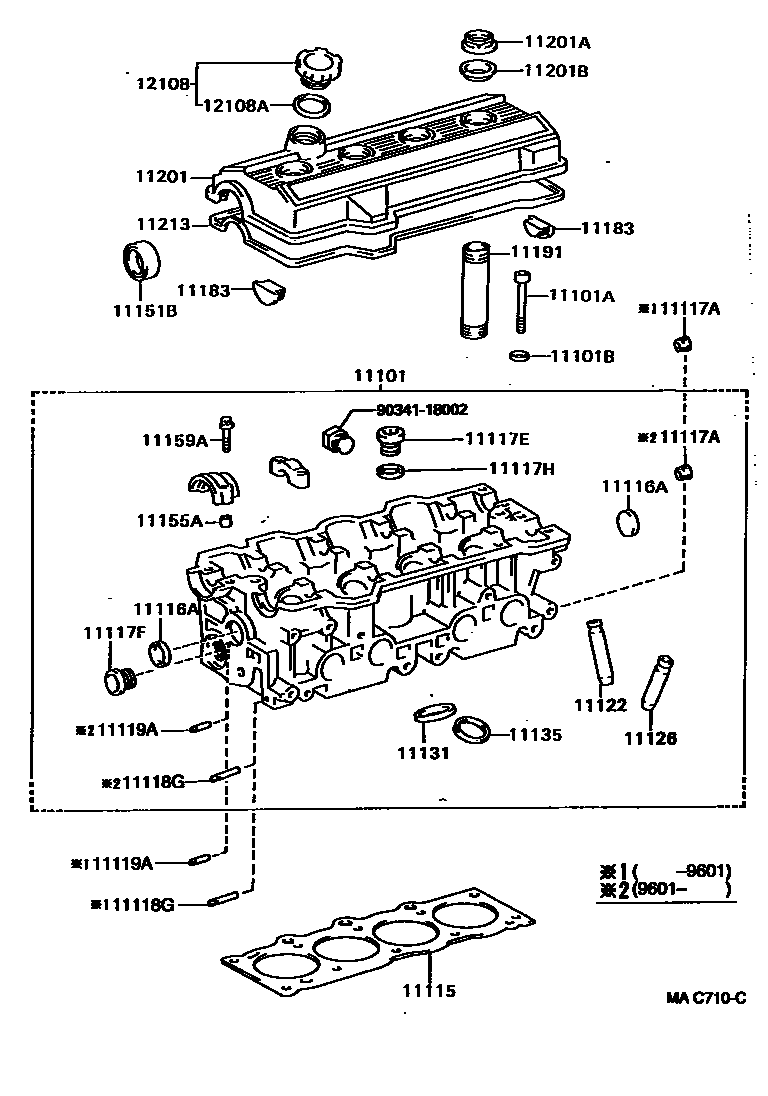

Parts diagram
11101HEAD SUB-ASSY, CYLINDER
main11101-74900i199309-199601
main11101-79156i199606
main11101-79165i199601-199606
sub11101-79175
main11101-88460i199309-199704
sub11101-88462
main11101-88462i199704-199712
main11101-88481i199402-199704
sub11101-88483
main11101-88483i199704
main11101-88560i199712
11101ABOLT(FOR CYLINDER HEAD SET)
main90109-10132i199309
main90910-02094i199309
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
main90201-10060i199309
main90201-11026i199309
11115GASKET, CYLINDER HEAD
main11115-74070i199309-199601
main11115-74110i199601
main11115-88460i199309-199712
main11115-88480i199402
main11115-88560i199712
11116APLUG, TIGHT, NO.1
main96411-41800i199309
main96411-42800i199309
11117APLUG, W/HEAD TAPER SCREW, NO.1
main90344-53011i199309
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
main90341-24090i199309
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
main90341-32031i199309
11117HGASKET(FOR WATER HOLE)
main90430-24246i199309
11118GPIN, SLOTTED SPRING, NO.1
main90249-06084i199309
11119APIN, STRAIGHT, NO.1
main90250-05021i199712
main90250-06003i199309-199712
11122BUSH, INTAKE VALVE GUIDE
main11122-74030i199309
main11122-88460i199309-199712
main11122-88560i199712-199801
sub11122-88561
main11122-88561i199801
main11123-74030i199309
main11123-88460i199309-199712
main11123-88560i199712-199801
sub11123-88561
main11123-88561i199801
11126BUSH, EXHAUST VALVE GUIDE
main11122-16010i199309
sub11122-16020
main11122-88460i199309-199712
main11122-88560i199712-199801
sub11122-88561
main11122-88561i199801
main11123-16010i199309
main11123-88460i199309-199712
main11123-88560i199712-199801
sub11123-88561
main11123-88561i199801
11131SEAT, INTAKE VALVE
main11131-74010i199309-199712
main11131-74020i199309
main11131-88560i199712
main11132-74010i199309-199712
main11132-74020i199309
main11132-88560i199712
11135SEAT, EXHAUST VALVE
main11135-74010i199309-199712
main11135-74030i199309
main11135-74070i199712
main11136-74010i199309-199712
main11136-74030i199309
main11136-74070i199712
11151BSEAL, OIL(FOR CAMSHAFT SETTING)
main90311-35022i199309-199701
sub90311-35040
main90311-35035i199702-199908
main90311-35041i199712-199908
main90311-38046i199309-199708
sub90311-38067
main90311-38067i199708-199908
main90311-46002i199712-199805
sub90311-46004
main90311-46004i199805-199908
11155APIN, RING W/HEAD
main90253-10004i199309-199712
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
main90119-07001i199309-199712
main90119-07002i199309
main90119-07003i199309-199712
main90119-07006i199712
main90119-07009i199309
11183PLUG, SEMICIRCULAR
main11183-74010i199309
main11183-88560i199712
11191TUBE, SPARK PLUG
main11191-74030i199309
11201COVER SUB-ASSY, CYLINDER HEAD
main11201-74050i199309-199606
sub11201-74051
main11201-74070i199606-199901
sub11201-74071
main11201-74071i199901
sub11201-79045
main11201-88460i199309-199712
main11201-88480i199402
main11201-88560i199712
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
main90179-28004i199309
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
main90210-06012i199309-199606
sub90210-06013
main90480-30025i199309
11213GASKET, CYLINDER HEAD COVER
main11213-74020i199309
main11213-88460i199309-199712
main11213-88480i199402
main11213-88560i199712
12108CAP SUB-ASSY, OIL FILLER
main12180-13030i199309-199508
sub12180-55010
main12180-55010i199312-199512
12108AGASKET(FOR OIL FILLER CAP)
main90430-37140i199309
9034118002
main90341-18002

27 parts on this diagram · 5 diagrams in section
