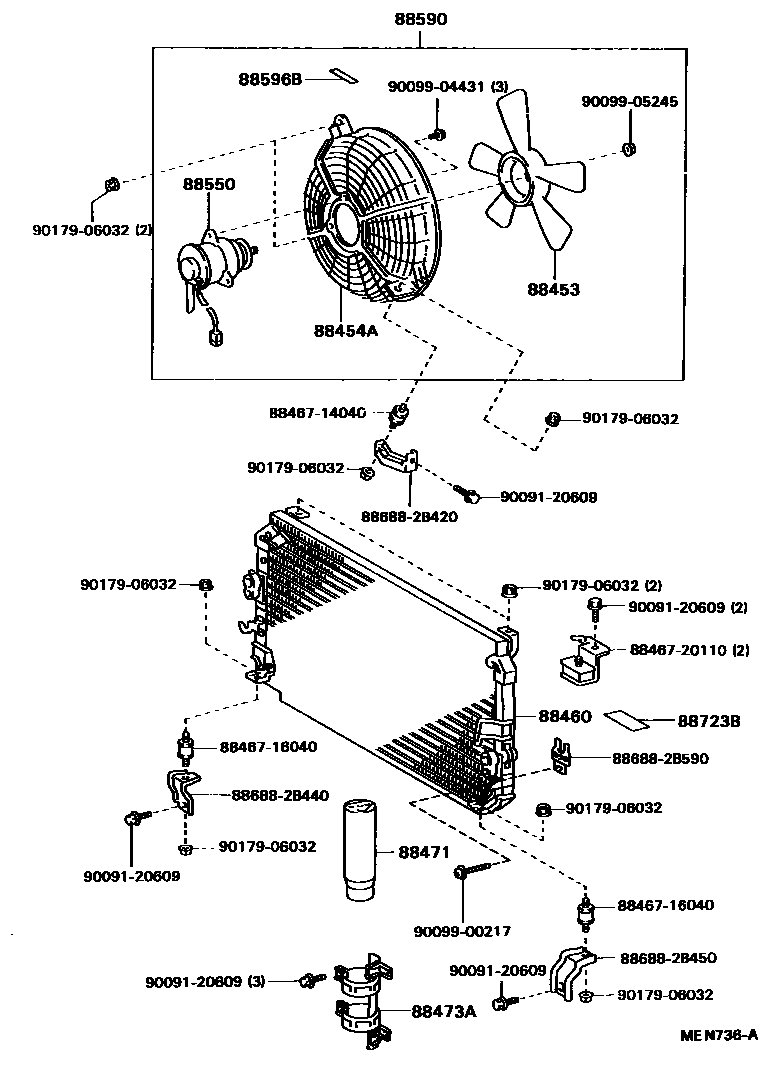

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

88453FAN, COOLING (FOR CONDENSER)

main88453-20060iST18#..ACT,GT4A,GTR,SR,ZR198909-199309

88454ASHROUD, FAN

main88454-20100iST185..GT4198909-199309

88460CONDENSER ASSY, COOLER

main88460-20301iST18#..GT4,GTR,SR,ZR199108-199309

main88460-20320iST183..ACT199004-199108

main88460-20330iST183,185..CV,GT4A198909-199109

main88460-20350iST185..GT4RC199108-199202

88471TANK, RECEIVER AIR CONDITIONER

main88471-16040iST18#..ACT,GT4A,GTR,SR,ZR198909-199309

sub88471-16050

88473AHOLDER, RECEIVER

main88473-20080iST18#..GT4,GTR,SR,ZR199009-199108

main88473-20080iST18#..GT4A,GTR,SR,ZR198909-199309

main88473-20090iST183..ACT199004-199108

main88473-20110iST185..GT4RC199108-199202

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-20070iST18#..GT4,GTR,SR,ZR198909-199309

main88550-20080iST185..GT4RC199108-199202

88590BLOWER ASSY, W/SHROUD

main88590-20230iST18#..GT4,GTR,SR,ZR199004-199309

main88590-20240iST185..GT4198909-199109

main88590-20250iST185..GT4RC199108-199202

88596BPLATE, CAUTION, NO.1

main88596-24010iST18#..GT4,GTR,SR,ZR198909-199309

88723BLABEL, COOLER SERVICE CAUTION

main88723-20010iST183..CV199009-199309

8846714040CUSHION, COOLER CONDENSER, NO.1

main88467-14040

8846716040CUSHION, COOLER CONDENSER, NO.1

main88467-16040

8846720110CUSHION, COOLER CONDENSER, NO.1

main88467-20110

886882B420BRACKET, COOLER DIAPHRAGM

main88688-2B420

886882B440BRACKET, COOLER DIAPHRAGM

main88688-2B440

886882B450BRACKET, COOLER DIAPHRAGM

main88688-2B450

886882B590BRACKET, COOLER DIAPHRAGM

main88688-2B590

9009120609

main90091-20609

9009900217

main90099-00217

9009904431

main90099-04431

9009905245

main90099-05245

9017906032

main90179-06032

21 parts on this diagram · 8 diagrams in section
