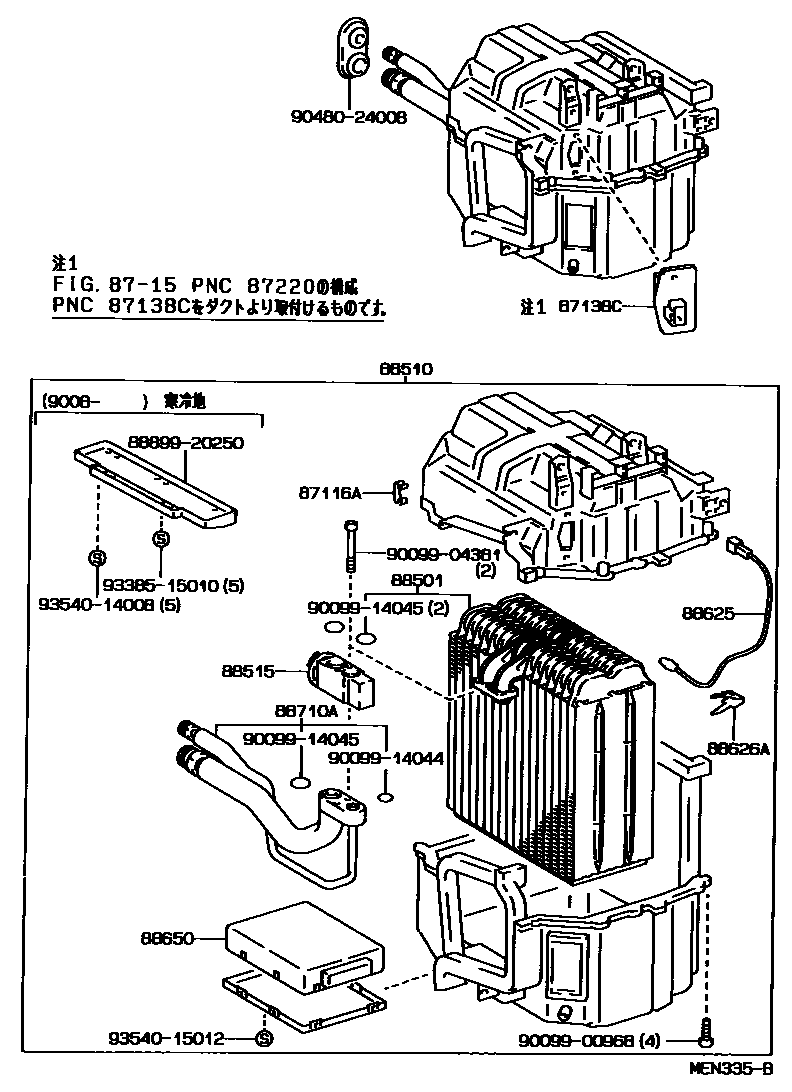

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL 0002 1 0003 1AUTO 0004 1 0005 1 0006 1�����(���-� �� ���� ��)

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iST185..GT4198909-199309

87138CRESISTOR, BLOWER

main87138-20140iST185..GT4199009-199108

main87138-20150iST183..ACT199004-199108

main87138-20170iST185..GT4198910-199108

main87138-20170iST182,183..SR198909-199008

main87138-20180iST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199110

main87138-20190iST185..GT4199009-199108

main87138-20190iST185..GT4199009-199108

main87138-20190iST183..CV199009-199109

main87138-20200iST18#199110-199309

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-20260iST18#..ACT,GT4A,GTR,SR,ZR198909-199309

sub88501-20261

main88501-20280iST18#..GT4,GTR,SR,ZR199009-199309

sub88501-20281

main88501-20280iST183..CV199009-199109

sub88501-20281

88510UNIT ASSY, COOLER

main88510-2B060iST18#..GT4,GT4A,GTR,SR,ZR198909-199108

main88510-2B100iST182,183..SR198909-199008

main88510-2B100iST185..GT4198910-199108

main88510-2B120iST18#..GT4,GT4A,GTR,SR,ZR198909-199108

main88510-2B180iST183..ACT199004-199108

main88510-2B190iST183..CV199009-199109

main88510-2B190iST18#..GT4,GTR,SR,ZR199009-199108

main88510-2B200iST182,183..GTR,SR,ZR199009-199108

main88510-2B200iST183..CV199009-199109

main88510-2B210iST185..GT4199009-199108

main88510-2B220iST18#..LB199108-199309

main88510-2B230iST18#..GT4,GTR,SR,ZR199108-199309

88515VALVE, COOLER EXPANSION

main88515-14060iST185¥10,600198909-199309

sub88515-14061¥10,600

88625THERMISTOR, COOLER, NO.1

main88625-20270iST18#..GT4,GT4A,GTR,SR,ZR198909-199108

main88625-20280iST183..ACT199004-199108

main88625-20280iST18#..GT4,GT4A,GTR,SR,ZR198909-199108

main88625-20350iST18#..LB199108-199309

main88625-60050iST182,183..GTR,SR,ZR¥0199009-199108

main88625-60050iST183..CV¥0199009-199109

main88625-60060iST182,183..GTR,SR,ZR199009-199108

main88625-60060iST183..CV199009-199109

88626AHOLDER, THERMISTOR

main88626-28010iST185..GT4198909-199309

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-20660iST18#..GT4,GT4A,GTR,SR,ZR198909-199108

sub88650-2B140

main88650-2B070iST18#..LB199009-199108

main88650-2B070iST183..CV199103-199109

main88650-2B140iST18#..LB199108-199309

main88650-2B150iST18#..GT4,GTR,SR,ZR199108-199309

88710ATUBE ASSY, AIR CONDITIONER

main88710-20190iST18#..LB¥9,900198909-199108

main88710-20270iST18#¥9,900199108-199309

main88710-20270iST18#..GT4,GTR,SR,ZR¥9,900198909-199108

8889920250COVER, EVAPORATOR

main88899-20250

9009900968

main90099-00968

9009904381

main90099-04381

9009914044

main90099-14044

9009914045

main90099-14045

9048024008

main90480-24008

9338515010

main93385-15010¥70

9354014008

main93540-14008¥90

9354015012

main93540-15012¥70

18 parts on this diagram · 6 diagrams in section
