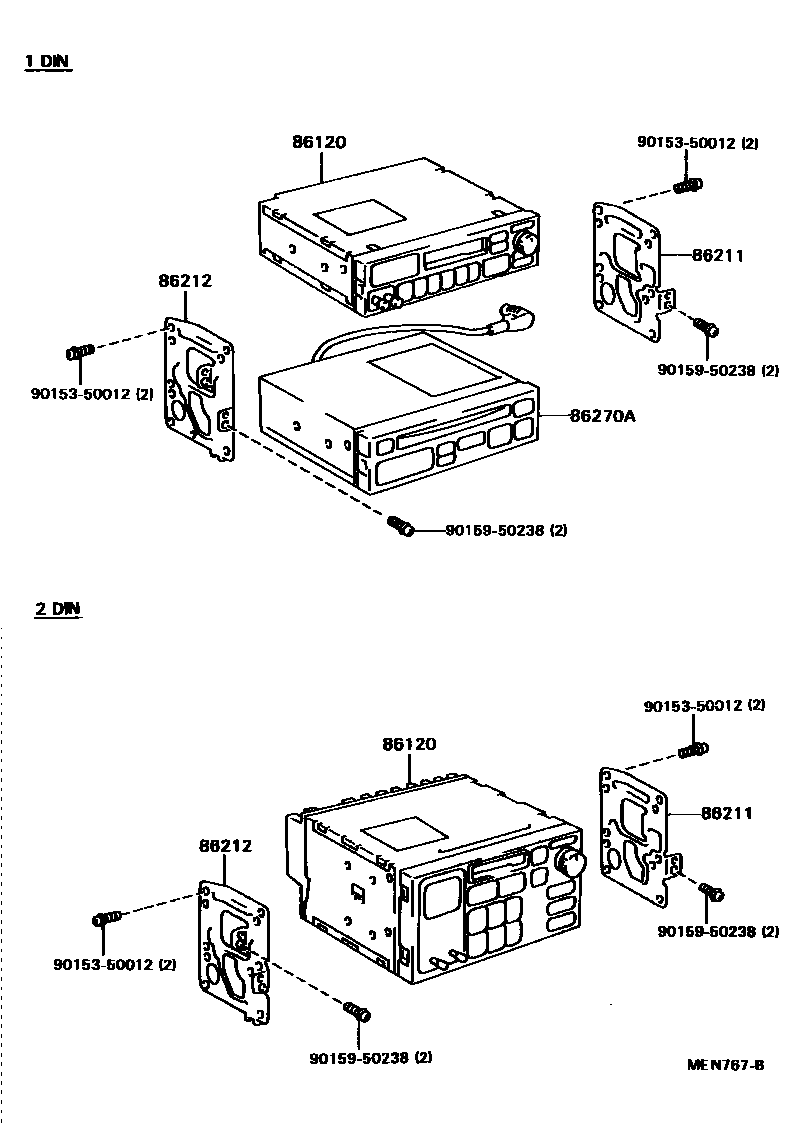

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86120RECEIVER ASSY, RADIO

main86120-14840iST183..CV199009-199109

main86120-20740iST18#..GT4,GT4RC,GTR,ZR199108-199309

main86120-20850iST18#..ZR198909-198910

sub86120-20851

main86120-20851iST182,183..ZR198910-199108

main86120-20860iST18#..GT4,GTR198909-199108

main86120-20861iST182,183..SR,ZR199108-199309

main86120-20870iST183,185..ACT,GT4A199004-199108

sub86120-20871

main86120-20870iST18#..GT4,GTR,ZR198909-199108

sub86120-20871

main86120-2B370iST183..CV199109-199309

main86120-2B410iST182,183..ZR199108-199309

main86120-32310iST182,183..SR198909-199309

86211BRACKET, RADIO, NO.1

main86211-20300iST18#198909-199309

86212BRACKET, RADIO, NO.2

main86212-20290iST18#198909-199309

86270ADISC PLAYER ASSY

main86270-20040iST18#..ACT,CV,GT4,GT4A,GTR,ZR198909-199109

9015350012

main90153-50012

9015950238

main90159-50238

6 parts on this diagram · 2 diagrams in section
