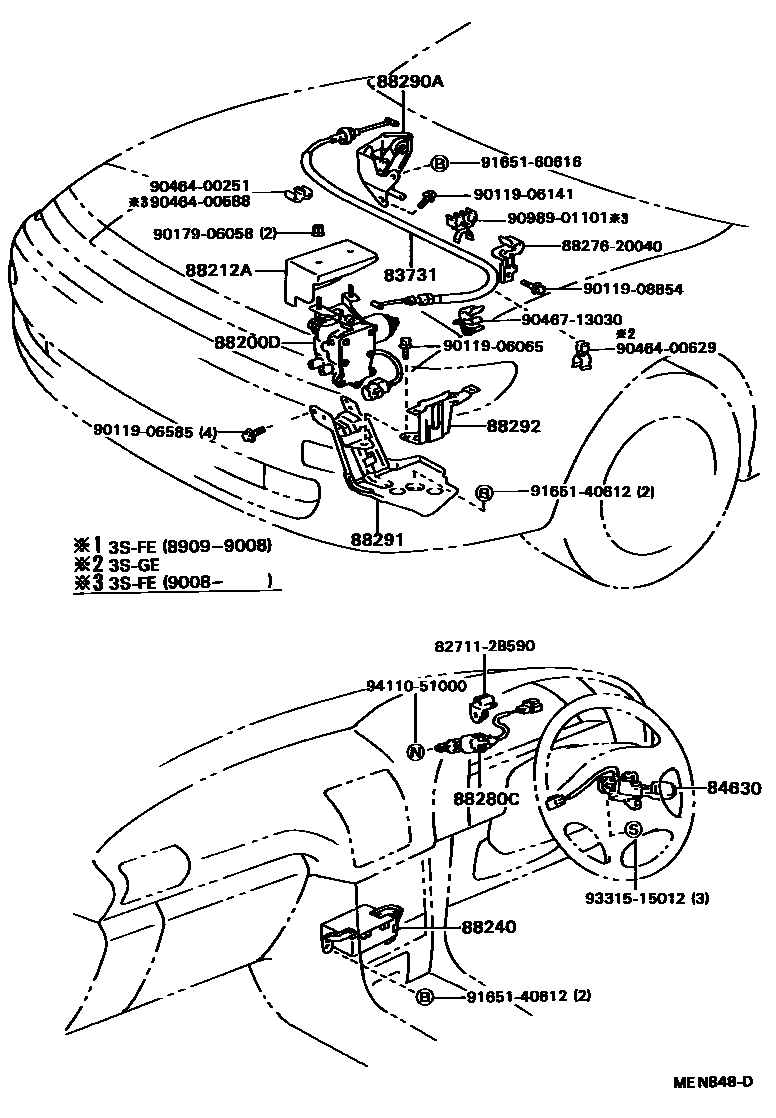

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

83731CABLE, CRUISE CONTROL

main83731-20020iST183..CV198909-199109

main83731-20040iST182,183..ZR198909-199008

main83731-20050iST185198910-199108

main83731-20070iST182,183..ZR199008-199108

main83731-20080iST182,183..ZR199108-199309

main83731-20090iST182,183..CV,GTR199108-199309

main83731-20100iST185..GT4199108-199309

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-20090iST182,183..ACT,GTR198909-199008

main84630-20090iST182,183..ACT,GTR199008-199108

main84630-20100iST18#..CV,GT4,GT4A,ZR198909-199109

sub84630-20140

main84630-20140iST18#..GT4,GTR,ZR199108-199309

main84630-33040iST18#..GT4,GTR,ZR199108-199309

sub84630-22170

main84630-33040iST183..CV199109-199309

sub84630-22170

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-20080iST182,183..ACT,GTR,ZR198909-199008

sub88200-20120

main88200-20100iST185198910-199008

sub88200-20130

main88200-20101iST185199008-199108

sub88200-20130

main88200-20110iST182,183..ACT,CV,GTR,ZR199008-199108

sub88200-20120

main88200-20120iST182,183..GTR,ZR199108-199309

main88200-20130iST185..GT4199108-199309

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-20040iST18#..ACT,CV,GT4,GT4A,GTR,ZR198909-199309

88240COMPUTER ASSY, CRUISE CONTROL

main88240-20320iST182,183..ACT,GTR,ZR198909-199108

main88240-20370iST185198910-199008

main88240-20371iST185199008-199108

main88240-20372iST185..GT4199108-199309

main88240-20400iST182,183..CV,GTR,ZR199008-199109

main88240-20401iST182,183..GTR,ZR199108-199309

88280CSWITCH ASSY, CLUTCH

main88280-20021iST18#..MTM..(ACT,CV,GT4,GT4A,GT4RC,GTR,ZR)198909-199309

88290ABELLCRANK ASSY, CRUISE CONTROL

main88290-20030iST18#..ACT,CV,GT4,GT4A,GTR,ZR198909-199309

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-20060iST183..CV198909-199109

main88291-20080iST185..GT4,GT4A198910-199309

main88291-20090iST182,183..CV,GTR,ZR199108-199309

88292BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.2

main88292-20030iST182,183..ACT,CV,GTR,ZR198909-199109

main88292-20040iST182,183..GTR,ZR199108-199309

827112B590WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B590

8827620040

main88276-20040

9011906065

main90119-06065

9011906141

main90119-06141

9011906585

main90119-06585

9011908854

main90119-08854

9017906058

main90179-06058

9046400251

main90464-00251

9046400588

main90464-00588

9046400629

main90464-00629

9046713030

main90467-13030

9098901101

main90989-01101

9165140612

main91651-40612

9165160616

main91651-60616

9331515012

main93315-15012

9411051000

main94110-51000

25 parts on this diagram · 2 diagrams in section
