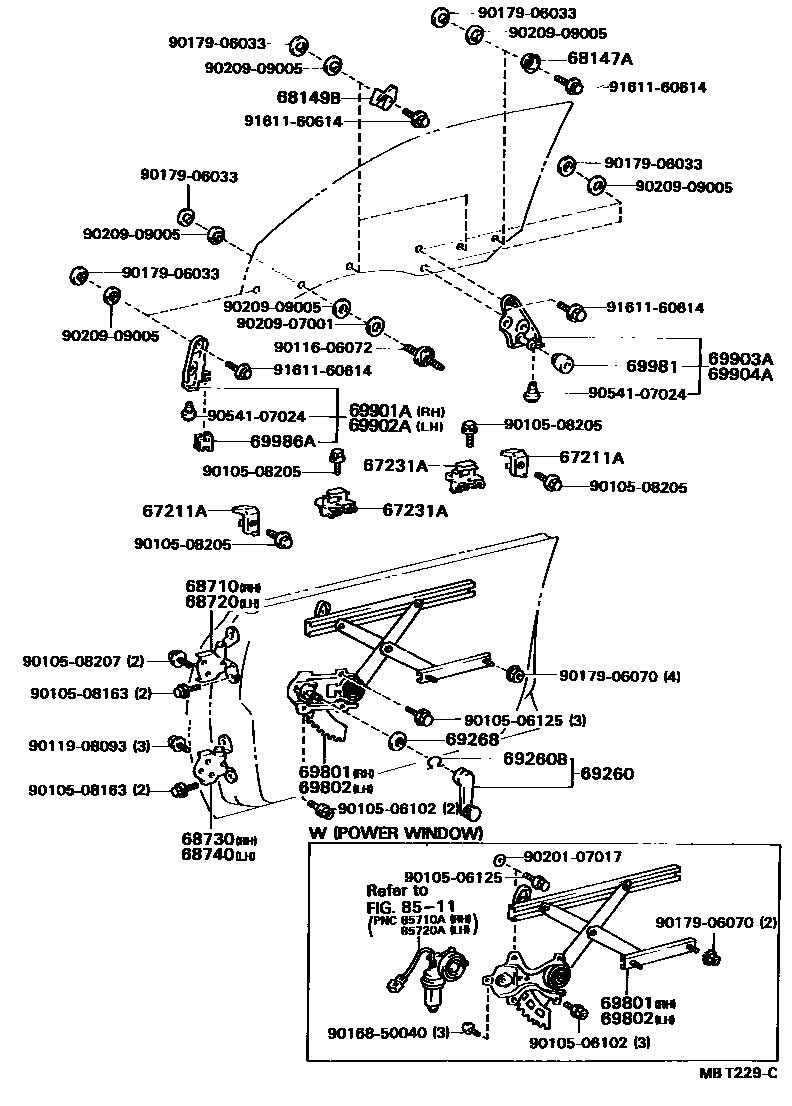

FRONT DOOR WINDOW REGULATOR & HINGE
67211ASTOP, FRONT DOOR WINDOW, UPPER
STAMPED NO.1
STAMPED N0.3
67231ASUPPORT, FRONT DOOR TRIM
STAMPED N0.1
STAMPED NO.1
68147ASTOP, FRONT DOOR GLASS, UPPER
68149BSTABILIZER, FRONT DOOR GLASS MALE
68710HINGE ASSY, FRONT DOOR, UPPER RH
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69268PLATE, WINDOW REGULATOR HANDLE
sub69285-22010
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69901ABRACKET SUB-ASSY, FRONT DOOR GLASS, RH
69902ABRACKET SUB-ASSY, FRONT DOOR GLASS, LH
69903ABRACKET SUB-ASSY, FRONT DOOR GLASS, REAR RH
69904ABRACKET SUB-ASSY, FRONT DOOR GLASS, REAR LH
69981ROLLER, FRONT DOOR GLASS GUIDE
69986APIECE, FRONT DOOR GLASS GUIDE
8511
9010506102
main90105-06102
9010506125
main90105-06125
9010508163
main90105-08163
9010508205
main90105-08205
9010508207
main90105-08207
9011606072
main90116-06072
9011908093
main90119-08093
9016850040
main90168-50040
9017906033
main90179-06033
9017906070
main90179-06070
9020107017
main90201-07017
9020907001
main90209-07001
9020909005
main90209-09005
9054107024
main90541-07024
9161160614
main91611-60614
35 parts on this diagram · 1 diagram in section
