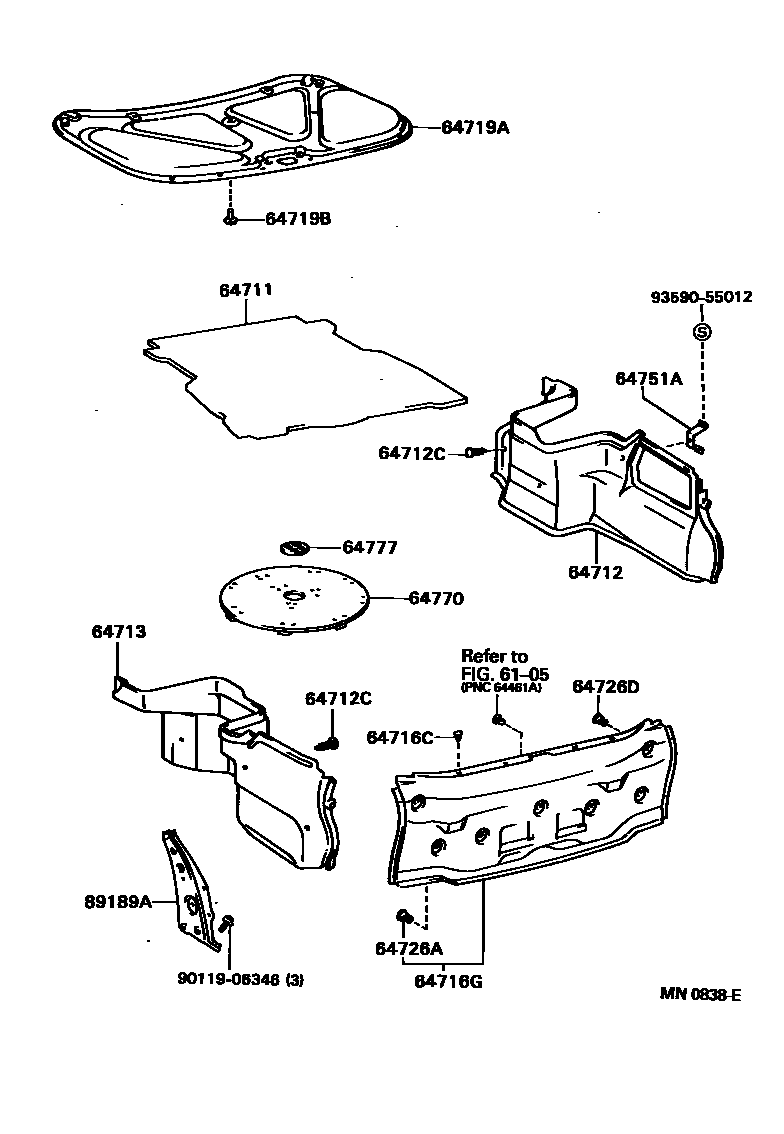

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

6105

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-20730-B0iST185199108-199309

SHADOW GRAY,TRIM1#

main64711-20790-01iST183..CV199009-199309

BLACK,TRIM1#

64712COVER, LUGGAGE COMPARTMENT TRIM, RH

main64712-20180-01iST183..CV199009-199309

BLACK,TRIM1#

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-06077iST183..CV199009-199309

64713COVER, LUGGAGE COMPARTMENT TRIM, LH

main64713-20180-01iST183..CV199009-199309

BLACK,TRIM1#

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-07053-01iST183..CV199009-199309

BLACK,TRIM1#

sub90467-07053

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-20440-01iST183..CV199009-199309

BLACK,TRIM1#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-20080-01iST183..CV199009-199309

BLACK,TRIM1#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-07059-01iST183..CV199009-199109

BLACK,TRIM1#

sub90467-07059

main90467-07059-22iST183..CV199109-199309

BLACK,TRIM1#

sub90467-07059

64726ACLIP, LUGGAGE TRIM, REAR

main64726-20020-01iST183..CV199009-199309

BLACK,TRIM1#

sub64726-20020

64726DCLIP, LUGGAGE TRIM, REAR

main64726-20020-01iST183..CV199009-199309

BLACK,TRIM1#

sub64726-20020

64751ABRACKET, LUGGAGE COMPARTMENT COVER, NO.1

main64751-20020iST183..CV199009-199309

64770COVER ASSY, SPARE WHEEL

main64770-20150iST183..CV199009-199309

64777CLAMP, SPARE WHEEL COVER

main64777-32030iST183..CV199009-199309

89189ABRACKET, LUGGAGE COMPARTMENT TRIM

main89189-20010iST183..CV199109-199309

9011906346

main90119-06346

9359055012

main93590-55012

17 parts on this diagram · 1 diagram in section
