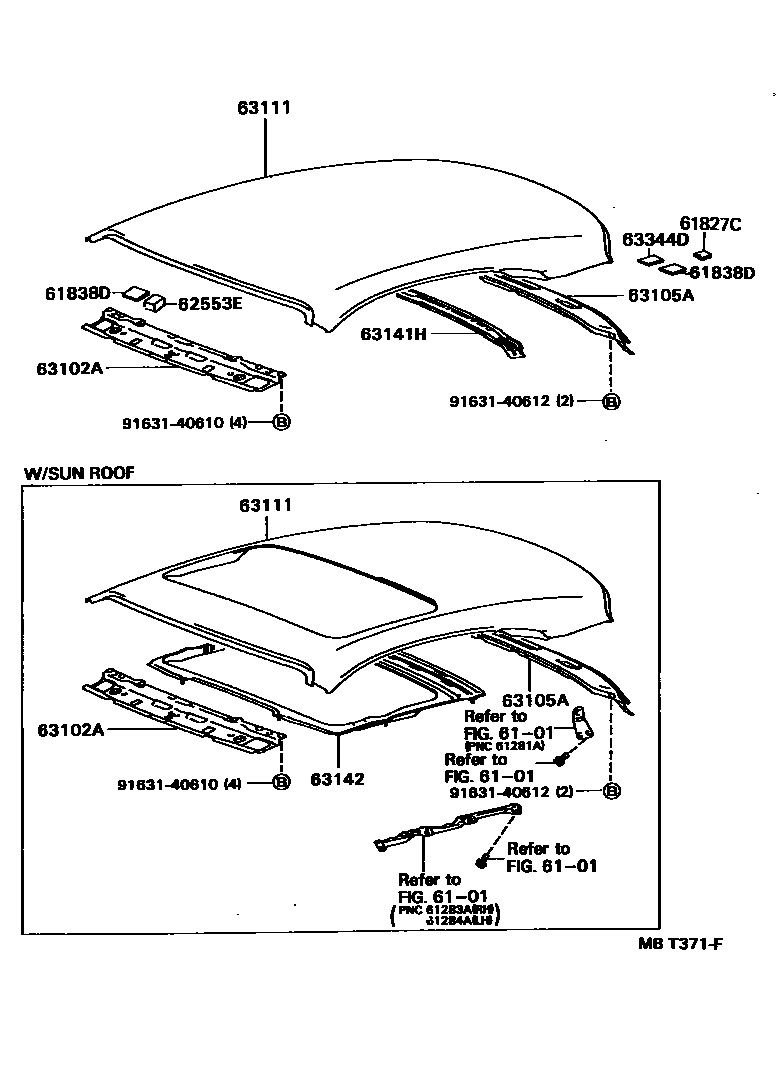

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

6101

61827CPLATE, NOISE CONTROL, NO.4

main61827-14010×2iST18#..LB198909-199309

61838DPLATE, NOISE CONTROL, NO.5

main61838-20030×4iST18#..LB198909-199309

62553EPAD, PILLAR, NO.3

main62553-20050×2iST18#..LB198909-199309

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-20190iST18#198909-198910

main63102-20900iST18#198910-199309

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-20900iST18#..LB198909-199309

63111PANEL, ROOF

main63111-20390iST183..CV199009-199309

main63111-20410iST18#..LB198909-199309

main63111-20420iST18#..LB198909-199309

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-20130iST18#..LB198909-199309

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-20060iST18#..LB198909-199309

63344DPAD, ROOF SILENCER, NO.4

main63344-20050×2iST18#198909-198912

9163140610

main91631-40610

9163140612

main91631-40612

12 parts on this diagram · 3 diagrams in section
