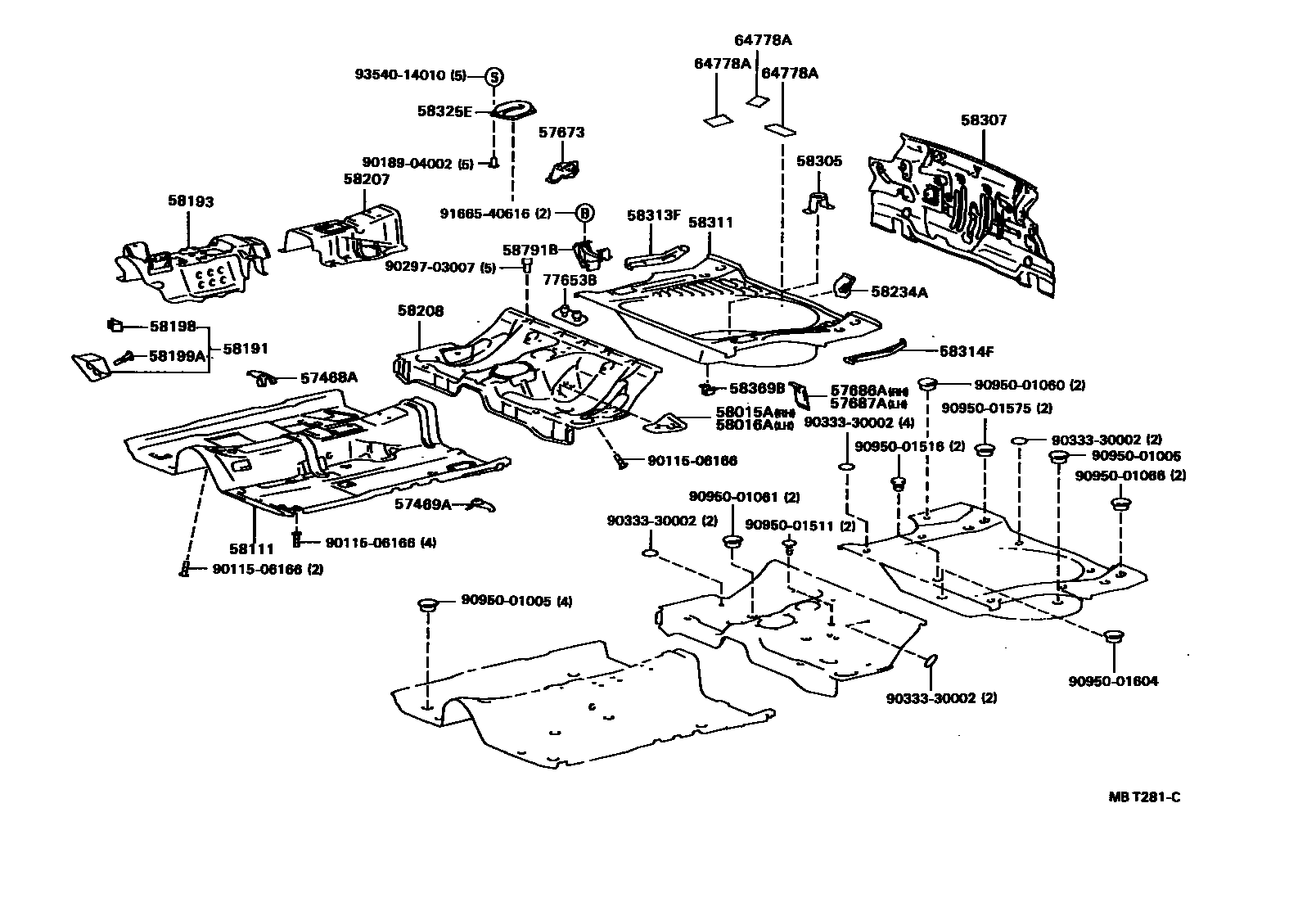

FLOOR PAN & LOWER BACK PANEL
57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
57673BRACKET, REAR SEATBACK HINGE MOUNTING
57686ABRACKET, FUEL TANK MOUNTING, REAR RH
57687ABRACKET, FUEL TANK MOUNTING, REAR LH
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58191FOOTREST, FRONT FLOOR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58198CLIP, FOOTREST
58199ACLIP, FOOTREST, NO.2
58207BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1
58234ABRACKET, EXHAUST PIPE MOUNTING, INNER
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58369BBRACKET, FUEL TUBE, NO.3
9011506166
main90115-06166
9018904002
main90189-04002
9029703007
main90297-03007
9033330002
main90333-30002
9095001005
main90950-01005
9095001060
main90950-01060
9095001061
main90950-01061
9095001066
main90950-01066
9095001511
main90950-01511
9095001516
main90950-01516
9095001575
main90950-01575
9095001604
main90950-01604
9166540616
main91665-40616
9354014010
main93540-14010
39 parts on this diagram · 4 diagrams in section
