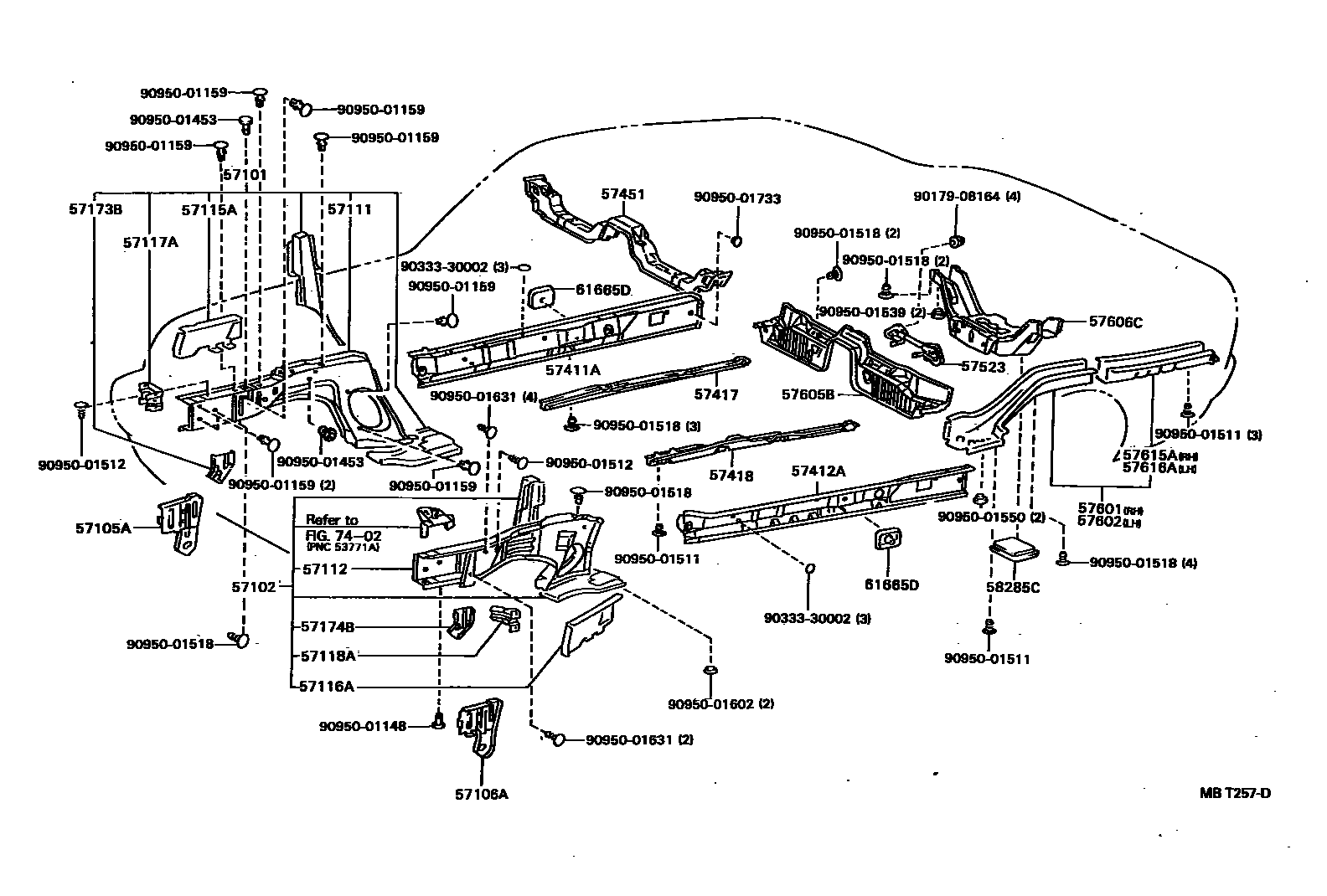

FLOOR SIDE MEMBER

0001 1 0002 1 0003 1 0004 1

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-20680iST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

main57101-20720iST183..ACT199004-199108

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-20600iST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

main57102-20740iST183..ACT199004-199108

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-20060iST18#198909-199309

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-20060iST18#198909-199309

57111MEMBER, FRONT SIDE, RH

main57111-20210iST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

57112MEMBER, FRONT SIDE, LH

main57112-20220iST18#..CV,GT4,GT4A,GTR,SR,ZR198909-199106

sub57112-20221

main57112-20221iST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR199106-199309

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-20140iST18#198909-199309

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-20150iST18#198909-199309

57117AREINFORCEMENT, FRONT BUMPER MOUNTING

main57117-20070iST18#198909-199309

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-20040iST18#198909-199309

57173BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57173-20030iST18#198909-199309

57174BREINFORCEMENT, FRONT CROSSMEMBER, NO.3 LH

main57174-20030iST18#198909-199309

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-20100iST18#198909-199309

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-20220iST18#198909-199309

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-20030iST185198910-199309

main57417-20060iST182,183198909-199309

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-20040iST185198910-199309

main57418-20060iST182,183198909-199309

57451MEMBER, FRONT FLOOR CROSS

main57408-20040iST185198910-199309

main57408-20050iST182,183198909-199309

57523BRACE, CENTER FLOOR CROSSMEMBER

main57503-20010iST182,183198909-199309

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-20240iST182198909-199309

main57601-20320iST183198909-199309

sub57601-20350

sub90333-20001

main57601-20340iST185198910-199309

main57601-20350iST183..ACT199004-199108

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-20240iST182198909-199309

main57602-20310iST183198909-199309

sub57602-20340

sub90333-20001

main57602-20330iST185198910-199309

main57602-20340iST183..ACT199004-199108

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-20050iST185198910-199309

sub57605-20120

main57605-20080iST182,183198909-199309

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-20100iST182198909-199309

main57606-20120iST183198909-199309

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-20907iST182,183..CV,GTR,SR,ZR198909-199309

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-20906iST182,183..CV,GTR,SR,ZR198909-199309

58285CCOVER, REAR FLOOR HOLE

main58285-20020iST182;ST183..SR,ZR198909-199309

61665DPLATE, SAFETY BELT ANCHORAGE

main61665-22010iST18#..LB198909-199309

7402

9017908164

main90179-08164

9033330002

main90333-30002

9095001148

main90950-01148

9095001159

main90950-01159

9095001453

main90950-01453

9095001511

main90950-01511

9095001512

main90950-01512

9095001518

main90950-01518

9095001539

main90950-01539

9095001550

main90950-01550

9095001602

main90950-01602

9095001631

main90950-01631

9095001733

main90950-01733

40 parts on this diagram · 4 diagrams in section
