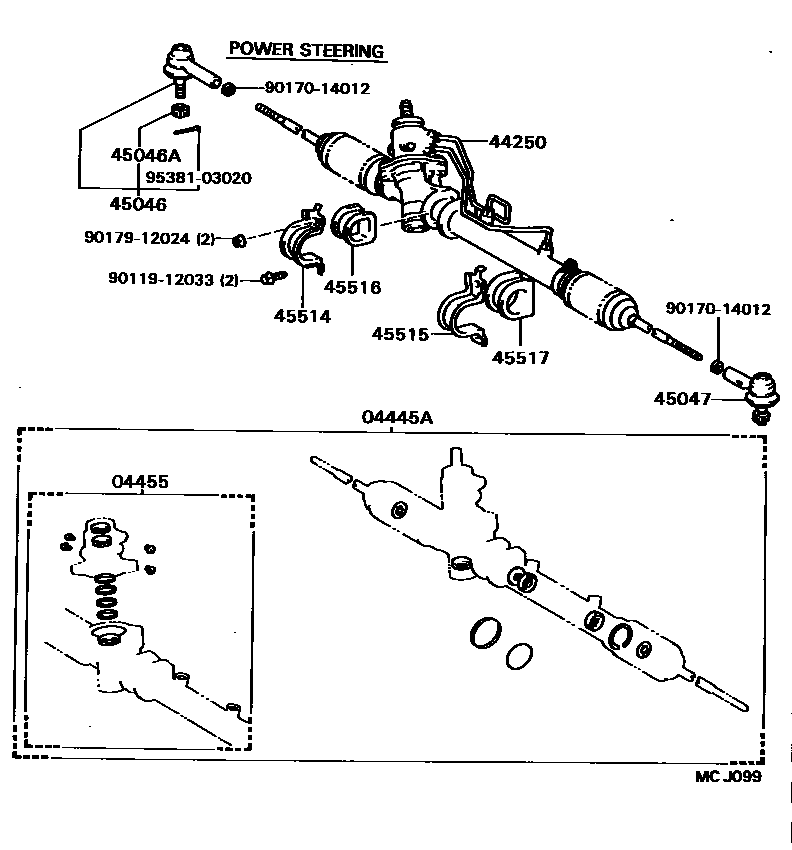

FRONT STEERING GEAR & LINK

0001 1 0003 1 0005 1 0006 1 0007 1 0008 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-20090iST182,185198909-199108

main04445-20100iST183198909-199001

sub04445-20102

main04445-20101iST183199001-199106

sub04445-20102

main04445-20102iST183199108-199305

sub04445-20103

main04445-20103iST183199305-199309

main04445-20110iST182199108-199309

main04445-20130iST185199108-199309

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-20050iST182,185198909-199108

main04455-20090iST183198909-199106

sub04455-20091

main04455-20091iST183199108-199305

sub04455-20092

main04455-20092iST183199305-199309

main04455-20100iST182199108-199309

main04455-33020iST185199108-199309

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-20310iST183198909-199309

main44250-20320iST185..GT4A199008-199108

main44250-20360iST182,185..NOB198909-199309

main44250-20490iST185199108-199309

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iST18#198909-199309

main45046-29305iST182199308-199309

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iST18#198909-199309

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iST18#198909-199309

main45046-29305iST182199308-199309

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-20070iST182198909-199108

sub45514-20090

main45514-20080iST185198910-199108

sub45514-20100

main45514-20090iST182199108-199309

main45514-20100iST185199108-199309

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-20110iST183198909-199309

main45515-20120iST182198909-199309

main45515-20130iST185198910-199309

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-20010iST182,185198909-199108

main45516-20060iST182,185199108-199309

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-20030iST183198909-199309

main45517-20080iST185198909-199102

main45517-20110iST182,185199108-199309

main45517-32050iST182,185199102-199108

9011912033

main90119-12033

9017014012

main90170-14012

9017912024

main90179-12024

9538103020

main95381-03020

14 parts on this diagram · 6 diagrams in section
