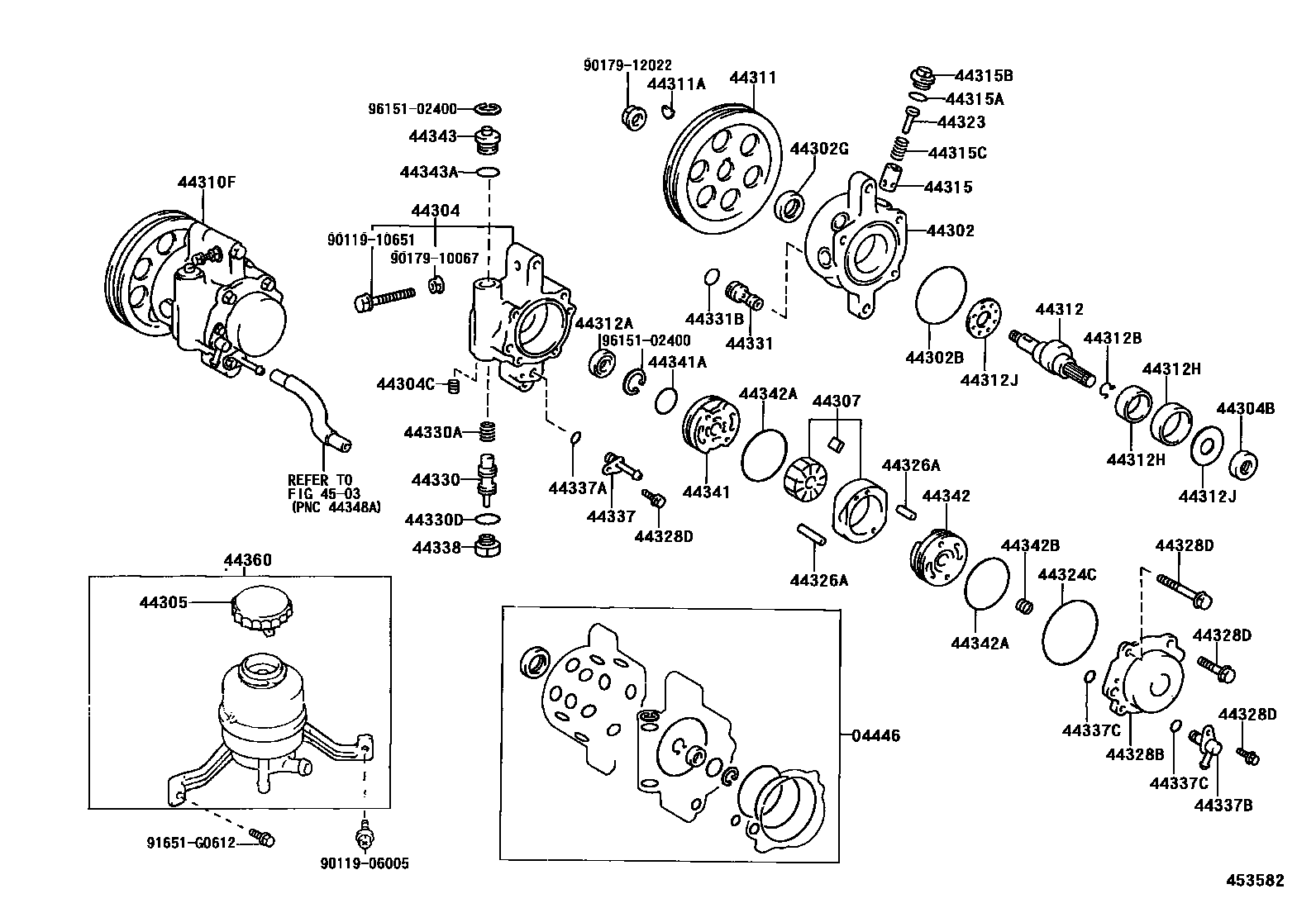

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-20030iST182198909-199309

sub04446-20031

main04446-20040iST183,185..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

sub04446-35050

main04446-20050iST183..ACT199004-199108

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-20080iST183..ACT199004-199108

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-70001iST183..ACT199004-199108

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-18007iST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

main90311-20007iST183..ACT199004-199108

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-20050iST183..ACT199004-199108

44304BSEAL, OIL(FOR VANE PUMP HOUSING REAR)

main90316-17001iST183..ACT199004-199108

44304CPLUG(FOR VANE PUMP HOUSING REAR)

main90072-34402iST183..ACT199004-199108

sub90344-51005

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22030iST18#198909-199309

sub44305-22050

44307ROTOR SUB-ASSY, VANE PUMP

main44307-20010iST183..ACT199004-199108

44310FPUMP ASSY, POWER STEERING & SUSPENSION CONTROL

main44310-20400iST183..ACT199004-199108

44311PULLEY, VANE PUMP

main44311-20050iST183..ACT199004-199108

main44311-20060iST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

44311AKEY, VANE PUMP PULLEY

main90029-18001iST183..ACT199004-199108

main90280-05008iST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

44312SHAFT, VANE PUMP

main44312-12030iST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

main44312-20030iST183..ACT199004-199108

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-12011iST183..ACT199004-199108

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

main90520-10006iST183..ACT199004-199108

44312HBUSH(FOR VANE PUMP SHAFT)

main90387-28001iST183..ACT199004-199108

main90387-31001iST183..ACT199004-199108

44312JSPASER(FOR VANE PUMP SHAFT)

main90561-20002iST183..ACT199004-199108

main90561-23001iST183..ACT199004-199108

44315PISTON, POWER STEERING & SUSPENSION CONTROL VANE PUMP

main44315-20010iST183..ACT199004-199108

44315ARING, O(FOR POWER STEERING & SUSPENSION CONTROL PISTON)

main90301-19009iST183..ACT199004-199108

44315BPLUG(FOR POWER STEERING & SUSPENSION CONTROL PISTON)

main90341-22007iST183..ACT199004-199108

44315CSPRING, POWER STEERING & SUSPENSION CONTROL PUMP PISTON

main90501-16126iST183..ACT199004-199108

44323GUIDE, POWER STEERING & SUSPENSION CONTROL VANE PUMP PISTON

main44323-20010iST183..ACT199004-199108

44324CRING, O(FOR PUMP HOUSING REAR)

main90301-52001iST182198909-199309

main90301-53004iST183,185..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

main90301-72005iST183..ACT199004-199108

44326RING, CAM(FOR VANE PUMP)

main44325-30100iST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

main44325-30110iST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

main44325-30120iST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

main44325-30130iST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

main44325-30140iST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

main90250-04049iST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

main90250-04087iST183..ACT199004-199108

main90250-04088iST183..ACT199004-199108

44328BEND, VANE PUMP HOUSING

main44328-20010iST183..ACT199004-199108

44328DBOLT(FOR VANE PUMP HOUSING END)

main90119-08472iST183..ACT199004-199108

sub90119-08108

main91611-60814iST183..ACT199004-199108

main91611-60820iST183..ACT199004-199108

sub91611-G0820

44330VALVE ASSY, FLOW CONTROL

main44330-20070iST182..SR,ZR198909-199309

sub44330-32730

main44330-20080iST182..SR,ZR198909-199309

sub44330-32740

main44330-20090iST182..SR,ZR198909-199309

sub44330-32750

main44330-20100iST182..SR,ZR198909-199309

sub44330-32760

main44330-20110iST182..SR,ZR198909-199309

sub44330-32770

main44330-20120iST182..SR,ZR198909-199309

sub44330-32780

main44330-20130iST183..SR,ZR198909-199309

sub44330-35250

main44330-20140iST183..SR,ZR198909-199309

sub44330-35260

main44330-20150iST183..SR,ZR198909-199309

sub44330-35270

main44330-20160iST183..SR,ZR198909-199309

sub44330-35280

main44330-20170iST183..SR,ZR198909-199309

sub44330-35290

main44330-20180iST183..SR,ZR198909-199309

sub44330-35300

main44330-20190iST183..CV,GTR198909-199309

sub44330-60070

main44330-20200iST183..CV,GTR198909-199309

sub44330-60080

main44330-20210iST183..CV,GTR198909-199309

sub44330-60090

main44330-20220iST183..CV,GTR198909-199309

sub44330-60100

main44330-20230iST183..CV,GTR198909-199309

sub44330-60110

main44330-20240iST183..CV,GTR198909-199309

sub44330-60120

main44330-20310iST185198910-199309

sub44330-35250

main44330-20320iST185198910-199309

sub44330-35260

main44330-20330iST185198910-199309

sub44330-35270

main44330-20340iST185198910-199309

sub44330-35280

main44330-20350iST185198910-199309

sub44330-35290

main44330-20360iST185198910-199309

sub44330-35300

main44330-20370iST183..ACT199004-199108

main44330-20380iST183..ACT199004-199108

main44330-20390iST183..ACT199004-199108

main44330-35131iST182..GTR198909-199309

sub44330-32670

main44330-35141iST182..GTR198909-199309

sub44330-32680

main44330-35151iST182..GTR198909-199309

sub44330-32690

main44330-35161iST182..GTR198909-199309

sub44330-32700

main44330-35171iST182..GTR198909-199309

sub44330-32710

main44330-35181iST182..GTR198909-199309

sub44330-32720

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

main90501-12134iST183..ACT199004-199108

44330DRING, O(FOR FLOW CONTROL VALVE)

main90301-19009iST183..ACT199004-199108

44331VALVE, POWER STEERING & SUSPENSION CONTROL CHECK

main44331-20070iST183..ACT199004-199108

44331BRING, O(FOR POWER STEERING & SUSPENSION CONTROL CHECK VALVE)

main90301-11012iST183..ACT199004-199108

44337UNION, POWER STEERING SUCTION PORT

main44337-12030iST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

main44337-20030iST183..ACT199004-199108

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-12003iST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

sub90301-11016

main90301-13001iST183..ACT199004-199108

44337BUNION, SUSPENSION CONTROL SUCTION PORT

main44337-20020iST183..ACT199004-199108

44337CRING, O(FOR SUSPENSION CONTROL SUCTION PORT UNION)

main90301-12010iST183..ACT199004-199108

main90301-17004iST183..ACT199004-199108

OD=20.5

44338UNION, PRESSURE PORT

main44338-20080iST183..ACT199004-199108

44341PLATE, VANE PUMP SIDE, FRONT

main44341-20010iST183,185..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

main44341-20020iST183..ACT199004-199108

main44341-32010iST182198909-199309

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90301-25001iST182198909-199309

sub90301-25008

main90301-25008iST183,185..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

main90301-31004iST183..ACT199004-199108

main90301-52001iST182198909-199309

main90301-53004iST183,185..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

44342PLATE, VANE PUMP SIDE, REAR

main44342-20010iST183,185..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

main44342-20020iST183..ACT199004-199108

main44342-32010iST182198909-199309

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-52001iST182198909-199309

main90301-53004iST183,185..CV,GT4,GT4A,GT4RC,GTR,SR,ZR198909-199309

main96721-24056iST183..ACT199004-199108

44342BSPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)

main90501-16127iST183..ACT199004-199108

44343SEAT, FLOW CONTROL SPRING

main44343-20010iST183..ACT199004-199108

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main90301-18008iST183..ACT199004-199108

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-20140iST18#198909-199309

4503

9011906005

main90119-06005

9011910651

main90119-10651

9017910067

main90179-10067

9017912022

main90179-12022

91651G0612

main91651-G0612

9615102400

main96151-02400

52 parts on this diagram · 2 diagrams in section
