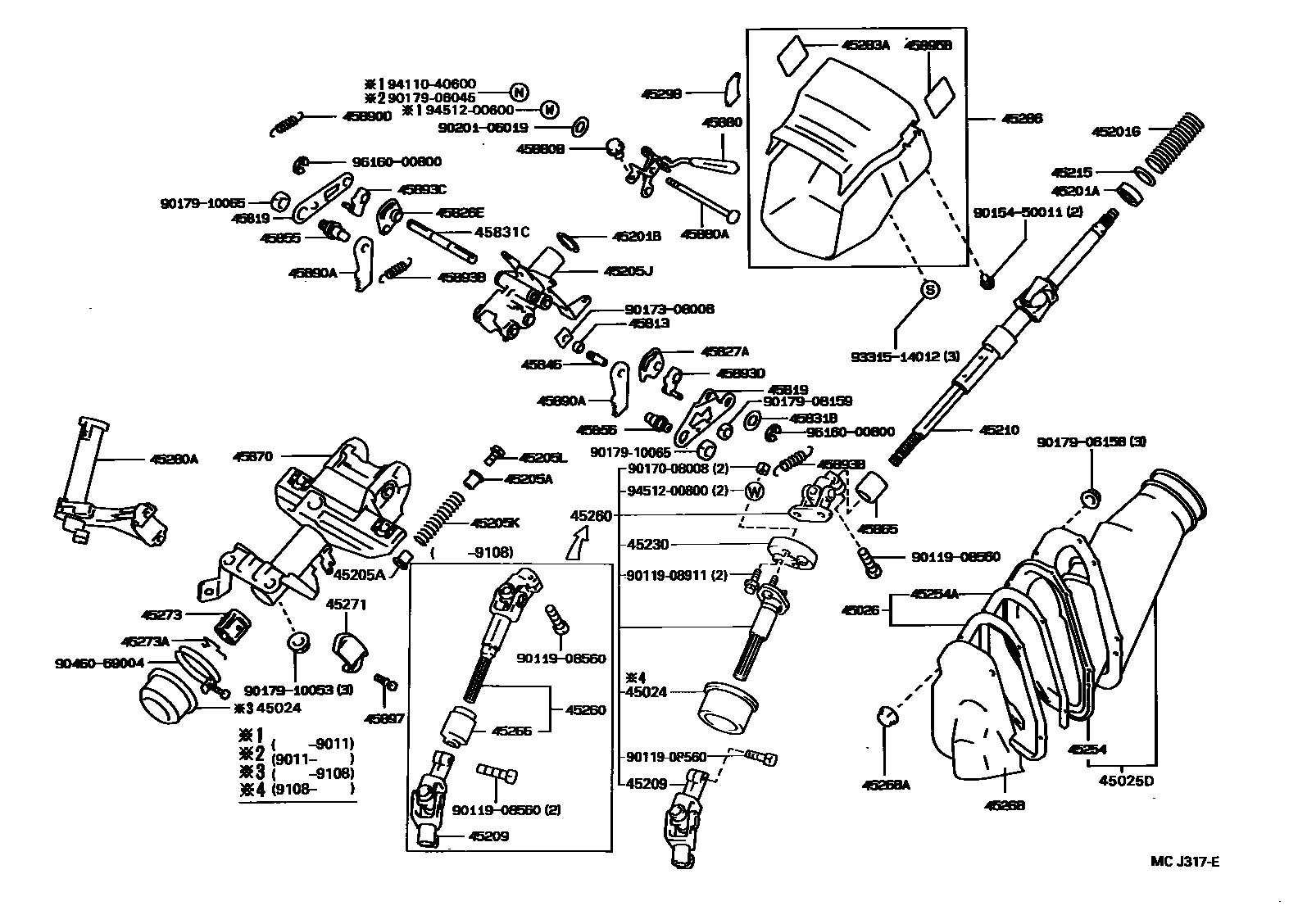

STEERING COLUMN & SHAFT

0001 1 0002 1��(��� & �������� �������) 0003 1��(��� & �������� �������)

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-20100iST18#..ACT,CV,GT4,GT4A,GTR,ZR198909-199109

main45024-20110iST185..GT4198910-199108

main45024-20110iST182,183..SR198909-199108

main45026-20110iST18#199108-199309

sub45026-20111

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-20280iST18#198909-199109

main45025-20410iST18#199108-199309

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-20050iST18#198909-199309

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18005iST182..GTR,ZR199305-199309

main90363-18005iST18#198909-199309

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-16002iST18#..ACT,CV,GT4,GT4A,GT4RC,GTR,ZR198909-199309

main90520-17042iST182..GTR,ZR199305-199309

main90520-17042iST18#198909-199309

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iST182..GTR,ZR199305-199309

main90501-40017iST18#198909-199309

45205ABUSH(FOR STEERING COLUMN TUBE)

main90386-06031iST18#198909-199201

main90386-06043iST182..SR199201-199309

GT-FOUR RALLY

main90386-06043iST182..SR199201-199309

main90386-06043iST182..GTR,ZR199305-199309

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-20250iST183..SR198909-199008

main45205-20260iST183..SR198909-199008

main45205-20260iST185..GT4198910-199108

main45205-20260iST185..GT4199108-199309

GT-FOUR RALLY

main45205-20260iST182,183..SR199008-199309

main45205-20260iST182..GTR,ZR199305-199309

main45205-20290iST18#..ACT,CV,GT4,GT4A,GT4RC,GTR,ZR198909-199309

45205KSPRING(FOR STEERING COLUMN TUBE)

main90504-25004iST182..GTR,ZR199305-199309

sub90504-25008

main90504-25004iST18#..LB198909-199305

sub90504-25008

main90504-25004iST183..CV199109-199305

CONVERTIBLE TYPE G

sub90504-25008

main90504-25005iST183,185..ACT,GT4RC199004-199201

sub90504-25004

main90504-25008iST18#..LB199305-199309

CONVERTIBLE TYPE G

main90504-29002iST18#..GT4,GTR,SR,ZR198909-199309

main90504-29002iST183..CV199109-199309

45205LSCREW(FOR STEERING COLUMN TUBE)

main90159-60429iST182..GTR,ZR199305-199309

main90159-60429iST183..SR198909-199008

main90159-60429iST18#199008-199309

main90168-55002iST183..SR198909-199008

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-16010iST18#199108-199309

main45209-32020iST18#198909-199109

sub45209-16010

45210SHAFT ASSY, STEERING MAIN

main45210-20280iST18#..ACT,CV,GT4,GT4A,GT4RC,GTR,ZR198909-199309

sub45210-20281

main45210-20290iST182,183..SR198909-199309

main45210-20290iST185..GT4198910-199309

GT-FOUR RALLY

main45210-20290iST182..GTR,ZR199305-199309

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iST18#198909-199309

main45215-12010iST182..GTR,ZR199305-199309

45230COUPLING ASSY, FLEXIBLE

main45230-20030iST18#..LB199108-199309

sub45230-32010

45254SHIELD, STEERING COLUMN HOLE

main45254-20190iST18#198909-199109

main45254-20230iST18#..LB199108-199309

45254ASHIELD, STEERING COLUMN HOLE, NO.2

main45254-20210iST18#198909-199309

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-20160iST18#198909-199109

main45260-20320iST18#..LB199108-199309

45266COVER, STEERING INTERMEDIATE SHAFT DUST

main45266-20010iST18#198909-199109

45268COVER, STEERING INTER SHAFT DUST SEAL

main45268-20030iST18#198909-199309

45268ANUT(FOR STEERING INTER SHAFT DUST SEAL COVER)

main90179-06007iST18#198910-199309

main90179-06070iST18#198909-198910

sub90179-06159

45271CLAMP, STEERING COLUMN, UPPER

main45271-12060iST182..GTR,ZR199305-199309

main45271-12060iST185..GT4198910-199108

main45271-12060iST182,183..SR198909-199309

main45271-12060iST185..GT4199108-199309

GT-FOUR RALLY

45273BUSH, STEERING MAIN SHAFT

main45273-20010iST185198910-199006

sub45273-20011

main45273-20010iST182,183..SR198909-199006

sub45273-20011

main45273-20011iST185..GT4199006-199108

main45273-20011iST182,183..SR199006-199309

main45273-20011iST185..GT4199108-199309

GT-FOUR RALLY

main45273-20011iST182..GTR,ZR199305-199309

45273ARING, HOLE SNAP(FOR STEERING MAIN SHAFT BUSH)

main90521-01006iST185..GT4198910-199108

main90521-01006iST182,183..SR198909-199309

main90521-01006iST185..GT4199108-199309

GT-FOUR RALLY

main90521-01006iST182..GTR,ZR199305-199309

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-20480iST18#..ACT,CV,GT4,GT4A,GT4RC,GTR,ZR198909-199309

main45280-20490iST182,183..SR198909-199108

sub45280-20500

main45280-20490iST185..GT4198910-199108

sub45280-20500

main45280-20500iST185..GT4199108-199309

GT-FOUR RALLY

main45280-20500iST182,183..SR198909-199108

main45280-20500iST182..GTR,ZR199305-199309

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iST18#198909-199309

45286COVER, STEERING COLUMN

main45287-20912-03iST185..GT4199108-199309

GT-FOUR RALLY,SHADOW GRAY,TRIM1#

sub45287-20912

main45287-20912-03iST182..GTR,ZR199305-199309

sub45287-20912

main45287-20912-03iST185..GT4198910-199108

sub45287-20912

main45287-20912-03iST182,183..SR198909-199309

SHADOW GRAY,TRIM1#

sub45287-20912

main45287-20912-04iST182,183..SR198909-199108

DARK BLUE,TRIM8#

sub45287-20912

main45287-20912-07iST182,183..SR198909-199008

KHAKI,TRIM8#

sub45287-20912

main45287-20921-03iST18#..ACT,CV,GT4,GT4A,GT4RC,GTR,ZR198909-199309

sub45287-20921

main45287-20921-04iST182,183..GTR,ZR198909-199108

DARK BLUE,TRIM8#

sub45287-20921

45298PLUG, STEERING COLUMN COVER

main45298-20010-03iST18#..LB198909-199208

SHADOW GRAY,TRIM1#

sub45298-20010

main45298-20010-04iST182,183..GTR,SR,ZR198909-199108

DARK BLUE,TRIM8#

sub45298-20010

45813COLLAR, TILT STEERING SUPPORT, NO.1

main45813-20090iST183..SR198909-199008

sub45813-20140

main45813-20100iST18#..ACT,CV,GT4,GT4A,GT4RC,GTR,ZR198909-199309

main45813-20110iST18#..ACT,CV,GT4,GT4A,GT4RC,GTR,ZR198909-199309

main45813-20120iST18#..ACT,CV,GT4,GT4A,GT4RC,GTR,ZR198909-199309

main45813-20130iST18#..ACT,CV,GT4,GT4A,GT4RC,GTR,ZR198909-199309

main45813-20140iST18#..ACT,CV,GT4,GT4A,GT4RC,GTR,ZR198909-199309

main45813-20150iST18#..ACT,CV,GT4,GT4A,GT4RC,GTR,ZR198909-199309

main45813-20160iST18#..ACT,CV,GT4,GT4A,GT4RC,GTR,ZR198909-199309

main45813-20170iST18#..ACT,CV,GT4,GT4A,GT4RC,GTR,ZR198909-199309

45819RETAINER, TILT LEVER

main45819-20070iST18#..ACT,CV,GT4,GT4A,GT4RC,GTR,ZR198909-199309

main45819-20080iST183..SR198909-199008

main45819-22040iST183..SR198909-199008

main45819-22040iST183..SR198909-199008

main45819-22040iST185..GT4198910-199108

main45819-22040iST182,183..SR199008-199301

main45819-22040iST185..GT4199108-199301

GT-FOUR RALLY

main45819-22060iST182..SR199301-199309

GT-FOUR RALLY

main45819-22060iST182..GTR,ZR199305-199309

45826LEVER, STEERING TILT

main45826-20140iST18#..ACT,CV,GT4,GT4A,GT4RC,GTR,ZR198909-199309

45826ELEVER, STEERING TILT(FOR TILT ADJUST)

main45826-22050iST18#198909-199309

main45826-22050iST182..GTR,ZR199305-199309

45827ALEVER, STEERING TILT SUB

main45827-20050iST18#..ACT,CV,GT4,GT4A,GT4RC,GTR,ZR198909-199309

main45827-22030iST185..GT4199108-199309

GT-FOUR RALLY

main45827-22030iST185..GT4198910-199108

main45827-22030iST182,183..SR198909-199309

main45827-22030iST182..GTR,ZR199305-199309

45831BSPACER(FOR TILT LEVER LOCK SHAFT)

main90560-10062iST18#198909-199309

main90560-10062iST182..GTR,ZR199305-199309

45831CSHAFT, TILT LEVER LOCK

main45831-20030iST18#198909-199309

main45831-20030iST182..GTR,ZR199305-199309

45846BOLT, TILT MEMORY

main45846-20030iST183;ST182,185..GT4,GTR,ZR198909-199309

45855BOLT, TILT STEERING, NO.1

main45855-22010iST18#..ACT,CV,GT4,GT4A,GT4RC,GTR,ZR198909-199309

main45855-22020iST18#..ACT,CV,GT4,GT4A,GT4RC,GTR,ZR198909-199309

main45856-22010iST185..GT4198910-199108

main45856-22010iST182,183..SR198909-199309

main45856-22010iST185..GT4199108-199309

main45856-22010iST182..GTR,ZR199305-199309

45856BOLT, TILT STEERING, NO.2

main45856-20030iST18#..ACT,CV,GT4,GT4A,GT4RC,GTR,ZR198909-199309

main45856-20040iST18#..ACT,CV,GT4,GT4A,GT4RC,GTR,ZR198909-199309

main45856-22010iST182..GTR,ZR199305-199309

main45856-22010iST185..GT4198910-199108

main45856-22010iST182,183..SR198909-199309

main45856-22010iST185..GT4199108-199309

45865COLLAR, STEERING MAIN SHAFT

main45865-20010iST182,183..SR198909-199309

main45865-20010iST185..GT4198910-199108

main45865-20010iST185..GT4199108-199309

GT-FOUR RALLY

main45865-20010iST182..GTR,ZR199305-199309

45870TUBE ASSY, STEERING COLUMN

main45870-20270iST185..GT4199108-199309

GT-FOUR RALLY

main45870-20270iST185..GT4198910-199108

main45870-20270iST182,183..SR198909-199309

main45870-20270iST182..GTR,ZR199305-199309

main45870-20380iST18#..ACT,CV,GT4,GT4A,GT4RC,GTR,ZR198909-199210

main45870-20470iST18#..CV,GT4,GTR,ZR199210-199309

45880LEVER ASSY, STEERING TILT

main45880-20010iST185..GT4199108-199309

GT-FOUR RALLY

main45880-20010iST185..GT4198910-199108

main45880-20010iST182..GTR,ZR199305-199309

main45880-20010iST182,183..SR198909-199309

45880ABOLT(FOR STEERING TILT LEVER)

main90109-06162iST182..SR198909-199008

main90109-06162iST185..GT4198910-199108

main90109-06162iST182,183..SR199008-199309

main90109-06162iST185..GT4199108-199309

GT-FOUR RALLY

main90109-06162iST182..GTR,ZR199305-199309

main90109-06168iST18#..ACT,CV,GT4,GT4A,GT4RC,GTR,ZR198909-199309

45880BSCREW(FOR STEERING TILT LEVER)

main90163-50001iST183..SR198909-199008

main93385-15014iST183..SR198909-199008

main93385-15014iST18#199008-199309

main93385-15014iST182..GTR,ZR199305-199309

45890APAWL ASSY, TILT STEERING

main45890-20110iST182..GTR,ZR199305-199309

main45890-20110iST18#198909-199309

main45890-22090iST182..GTR,ZR199305-199309

main45890-22090iST18#198909-199309

45890DSPRING, TENSION(FOR TILT STEERING PAWL ASSY)

main90507-07003iST185..GT4198910-199108

main90507-07003iST182,183..SR198909-199309

main90507-07003iST185..GT4199108-199309

GT-FOUR RALLY

main90507-07003iST182..GTR,ZR199305-199309

45893BSPRING, TENSION(FOR TILT STEERING PAWL STOPPER)

main90507-08010iST182..GTR,ZR199305-199309

main90507-08010iST185..GT4198910-199108

main90507-08010iST182,183..SR198909-199309

main90507-08010iST185..GT4199108-199309

main90507-08013iST18#..ACT,CV,GT4,GT4A,GT4RC,GTR,ZR198909-199309

main90507-10019iST182..GTR,ZR199305-199309

main90507-10019iST18#198909-199309

45893CSTOPPER, STEERING PAWL, RH

main45893-20190iST18#198909-199309

main45893-20190iST182..GTR,ZR199305-199309

main45893-20200iST18#..GT4,GTR,ZR198909-199309

main45893-20200iST182..GTR,ZR199305-199309

main45893-20210iST182..GTR,ZR199305-199309

main45893-20210iST18#..GT4,GTR,ZR198909-199309

main45893-20220iST182..GTR,ZR199305-199309

main45893-20220iST18#..GT4,GTR,ZR198909-199309

main45893-20230iST18#198909-199309

main45893-20230iST182..GTR,ZR199305-199309

main45893-20240iST182..GTR,ZR199305-199309

main45893-20240iST18#..GT4,GTR,ZR198909-199309

main45893-20250iST18#198909-199309

main45893-20250iST182..GTR,ZR199305-199309

main45893-22030iST185198910-199002

main45893-22030iST182,183..SR198909-199002

main45893-22040iST182,183..SR198909-199002

main45893-22040iST185198910-199002

main45893-22050iST185198910-199002

main45893-22050iST182,183..SR198909-199002

main45893-22060iST185198910-199002

main45893-22060iST182,183..SR198909-199002

main45893-22070iST185198910-199002

main45893-22070iST182,183..SR198909-199002

45893DSTOPPER, STEERING PAWL, LH

main45893-20260iST18#198909-199309

main45893-20260iST182..GTR,ZR199305-199309

main45893-20270iST18#198909-199309

main45893-20270iST182..GTR,ZR199305-199309

main45893-20280iST182..GTR,ZR199305-199309

main45893-20280iST18#198909-199309

main45893-20290iST182..GTR,ZR199305-199309

main45893-20290iST18#198909-199309

main45893-20300iST182..GTR,ZR199305-199309

main45893-20300iST18#198909-199309

main45893-20310iST18#198909-199309

main45893-20310iST182..GTR,ZR199305-199309

main45893-20320iST18#198909-199309

main45893-20320iST182..GTR,ZR199305-199309

45895BPLATE, TILT LEVER INSTRUCTION

main45895-20090iST185..GT4198910-199108

main45895-20090iST182,183..SR198909-199309

main45895-20090iST185..GT4199108-199309

GT-FOUR RALLY

main45895-20090iST182..GTR,ZR199305-199309

main45895-20120iST18#..ACT,CV,GT4,GT4A,GT4RC,GTR,ZR198909-199309

45897BOLT, STEERING LOCK SET

main45897-12020iST18#198909-199309

main45897-12020iST182..GTR,ZR199305-199309

9011908560

main90119-08560

9011908911

main90119-08911

9015450011

main90154-50011

9017008008

main90170-08008

9017308008

main90173-08008

9017906045

main90179-06045

9017906158

main90179-06158

9017908159

main90179-08159

9017910053

main90179-10053

9017910065

main90179-10065

9020106019

main90201-06019

9046069004

main90460-69004

9331514012

main93315-14012

9411040600

main94110-40600

9451200600

main94512-00600

9451200800

main94512-00800

9616000800

main96160-00800

66 parts on this diagram · 3 diagrams in section
