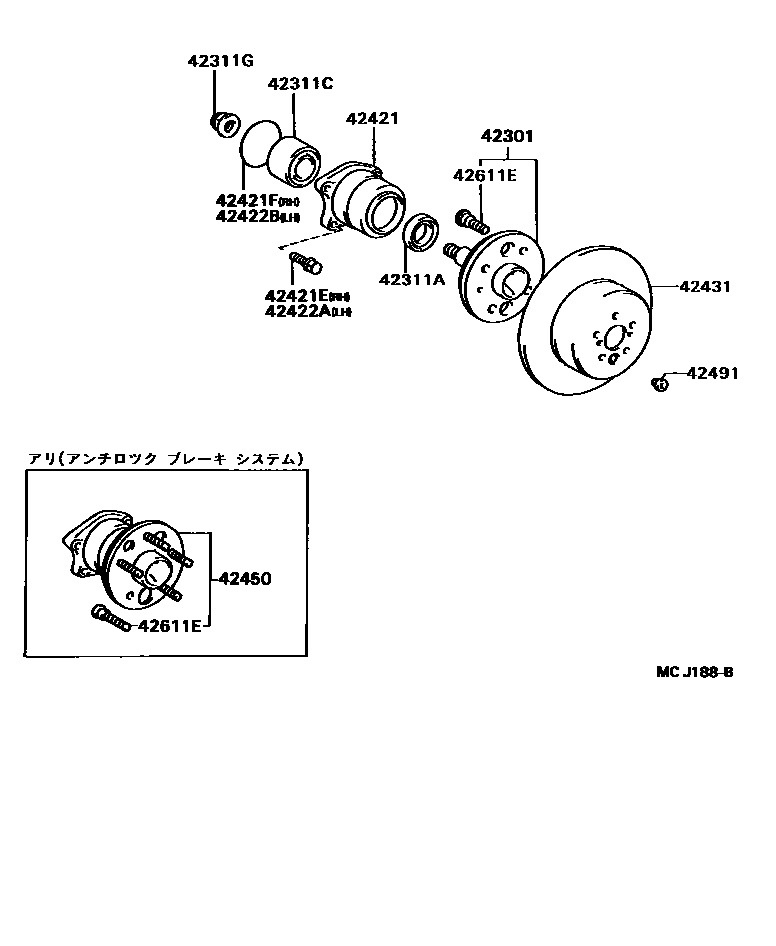

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

42301SHAFT SUB-ASSY, REAR AXLE

main42301-20070iST185198910-199309

main42301-20140iST182,183..CV,GTR,SR,ZR198909-199307

sub42301-32031

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42018iST182,183198909-199309

main90311-52005iST185198910-199309

main90311-56007iST185198910-199104

main90311-56015iST185199104-199309

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-30044iST182,183..CV,GTR,SR,ZR198909-199309

main90369-38003iST185198910-199309

42311GNUT(FOR REAR AXLE SHAFT)

main90170-19002iST185198910-199101

main90179-20017iST182,183198909-199309

main90179-22020iST185199101-199309

42421CASE, REAR AXLE BEARING

main42421-20020iST182,183198909-199309

sub42409-20010

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10124iST182,183198909-199309

42421FRING, O (FOR REAR AXLE BEARING CASE RH)

main90301-63003iST182,183198909-199309

sub90301-63006

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10124iST182,183198909-199309

42422BRING, O (FOR REAR AXLE BEARING CASE LH)

main90301-63003iST182,183198909-199309

sub90301-63006

42431DISC, REAR

main42431-20090iST182,183198909-199109

sub42431-20160

main42431-20100iST185198910-199108

main42431-20150iST185199202-199309

main42431-20160iST182,183199109-199309

main42431-20240iST185199108-199202

sub42431-20150

42450HUB & BEARING ASSY, REAR AXLE

main42450-20030iST182,183..GTR,ZR199108-199309

main42450-20030iST182,183198909-199108

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iST18#198909-199309

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047iST18#198909-199309

13 parts on this diagram · 4 diagrams in section
