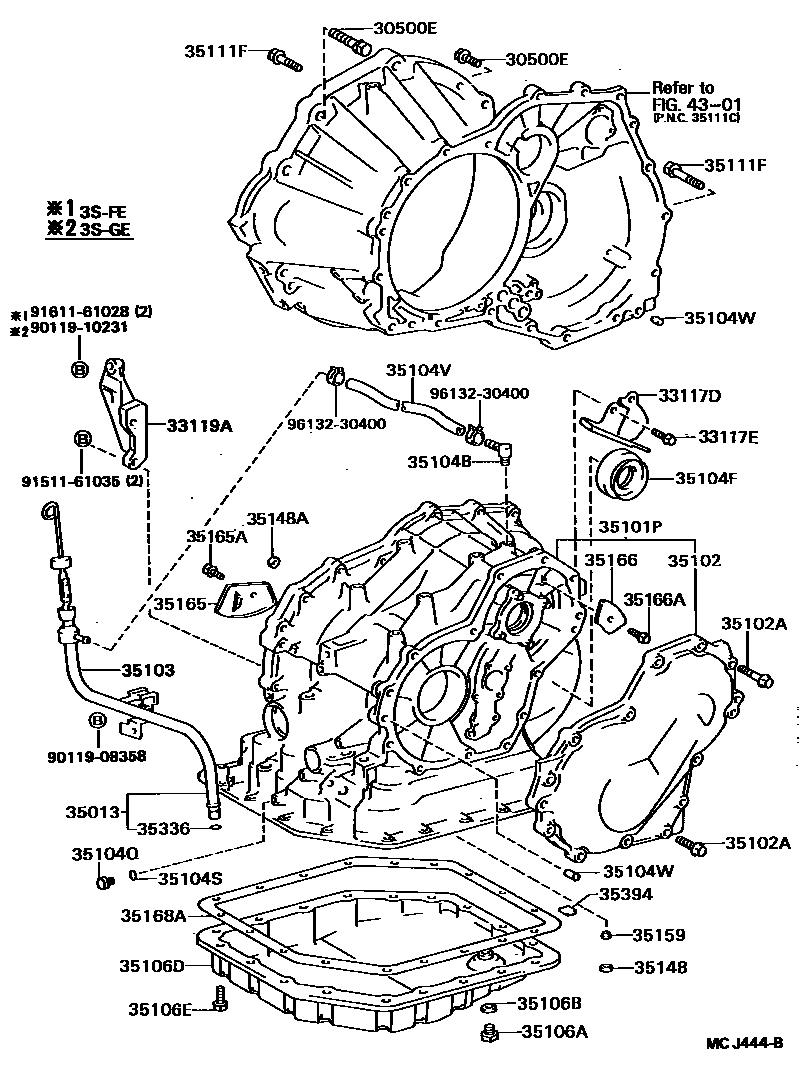

TRANSMISSION CASE & OIL PAN (ATM)

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-08040iST182,183..ATM..(SR,ZR)199109-199309

sub91641-H0820

main90105-10077iST182,183..ATM198909-199309

main91619-61245×3iST182,183..ATM198909-199309

main91651-41022iST182,183..ATM..(SR,ZR)199109-199309

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-12030iST182,183..ATM198909-199309

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040×2iST182,183..ATM198909-199309

sub91641-H0820

33119APLATE, STIFFENER, LH(ATM)

main33119-20110iST182,183..ATM..(CV,GTR)198909-199108

main33119-32020iST182,183..ATM..(SR,ZR)198909-199309

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-20340iST182,183..ATM..ZR198909-199008

main35013-20350iST183..ATM..CV199009-199109

main35013-20460iST182,183..ATM..(SR,ZR)198909-199008

main35013-20470iST182,183..LB..ATM199008-199108

main35013-20490iST183..ATM..CV199109-199309

main35013-20500iST183..ATM..CV199109-199309

35101PCASE & COVER SUB-ASSY, TRANSAXLE

main35101-20030iST182,183..ATM198909-199201

main35101-20031iST182,183..ATM199201-199309

sub35101-20032

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-20030iST182,183..ATM198909-199309

sub35102-20031

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08065×10iST182,183..ATM198909-199309

main90105-08068×3iST182,183..ATM198909-199309

sub90105-08333

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-20180iST183..ATM..CV199108-199109

main35103-20230iST182,183..LB..ATM199108-199109

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03101iST182,183..ATM198909-199309

35104FSEAL, OIL (FOR TRANSAXLE CASE)

main90311-35020iST182,183..ATM198909-199309

sub90311-35047

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iST182,183..ATM198909-199309

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iST182,183..ATM198909-199309

35104VHOSE (FOR BREATHER PLUG)

main90447-11018iST182,183..ATM198909-199309

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10007×2iST182,183..ATM198909-199307

HOUSING SIDE

main90250-10021×2iST182,183..ATM199307-199309

HOUSING SIDE

main90250-11001×2iST182,183..ATM198909-199309

RR COVER SIDE

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iST182,183..ATM198909-199309

sub90341-10011

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iST182,183..ATM198909-199309

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-12050iST182,183..ATM198909-198912

main35106-12070iST182,183..ATM198912-199309

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18iST182,183..ATM198909-199309

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08065×10iST182,183..ATM198909-199309

main90105-08066×2iST182,183..ATM198909-199309

main90105-08068×5iST182,183..ATM198909-199309

sub90105-08333

main90105-08071×2iST182,183..ATM198909-199309

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iST182,183..ATM198909-199309

35148AGASKET, GOVERNOR APPLY, NO.2

main35148-12010×2iST182,183..ATM198909-199309

35159GASKET, BRAKE DRUM

main35159-20010iST182,183..ATM198909-199309

35165PLATE, TRANSMISSION CASE, NO.1

main35165-20010iST182,183..ATM198909-199309

35165ABOLT (FOR TRANSMISSION CASE PLATE NO.1)

main90105-06049iST182,183..ATM198909-199309

35166PLATE, TRANSMISSION CASE, NO.3

main35166-12010iST182,183..ATM198909-199309

35166ABOLT (FOR TRANSMISSION CASE PLATE NO.3)

main90105-06049iST182,183..ATM198909-199309

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12020iST182,183..ATM198909-199309

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iST182,183..ATM198909-199309

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×3iST182,183..ATM198909-199212

4301

9011908358

main90119-08358

9011910231

main90119-10231

9151161035

main91511-61035

9161161028

main91611-61028

9613230400

main96132-30400

36 parts on this diagram · 1 diagram in section
