TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

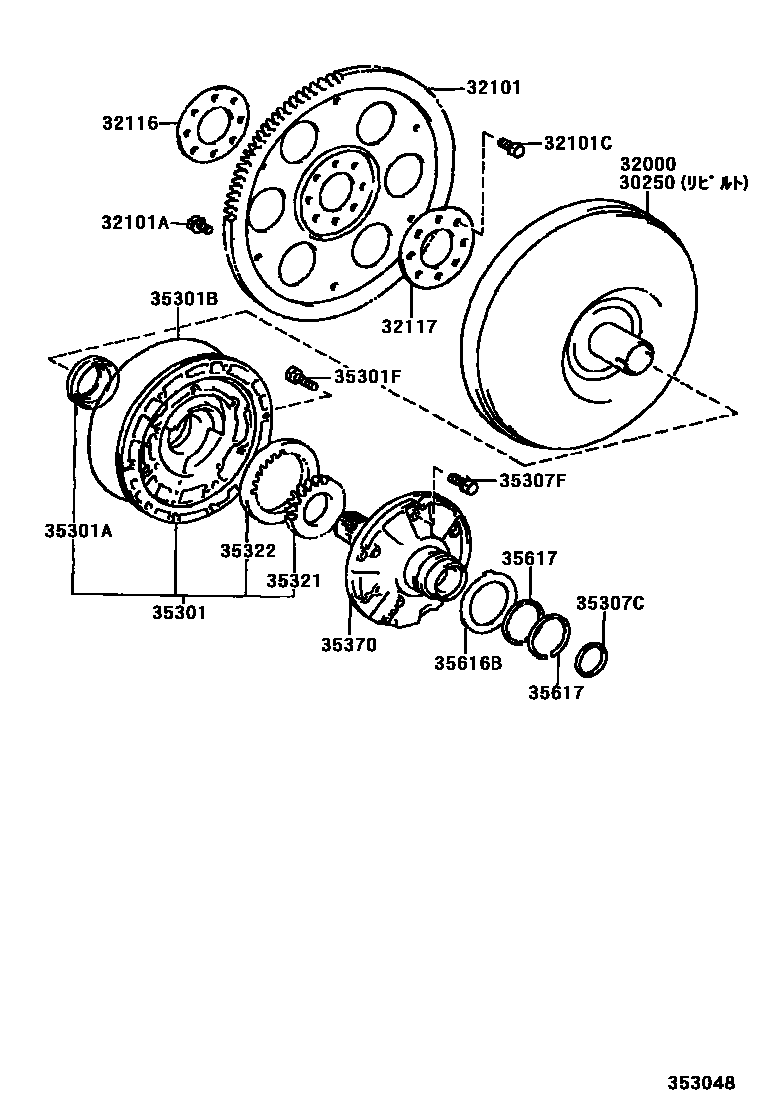

Parts diagram
30250CONVERTER ASSY, TORQUE, REBUILT
main30250-20210i198909-199309
main30250-32051i198909-199309
32000CONVERTER ASSY, TORQUE
main32000-20210i198909-199309
main32000-32051i198909-199309
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-20080i198909-198911
sub32101-20081
sub32116-20050
sub32117-20060
main32101-20081i198911-199309
main32101-32050i198909-199309
sub32101-32051
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-08113i198909-199309
main90119-08498i198909-199309
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-12184i198909-199309
sub90105-12384
main90109-10054i198909-199309
32116SPACER, DRIVE PLATE, FRONT
main32116-20040i198909-198911
main32116-20050i198911-199309
main32116-32011i198909-199309
32117SPACER, DRIVE PLATE, REAR
main32117-20050i198909-198911
main32117-20060i198911-199309
main32117-32010i198909-199309
35301BODY SUB-ASSY, FRONT OIL PUMP
main35035-12010i198909-199309
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-38020i198909-199309
35301BRING, O (FOR FRONT OIL PUMP BODY)
main90301-99024i198909-199309
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-08198i198909-199309
35307CRACE, THRUST BEARING (FOR STATOR SHAFT)
main35789-32020i198909-199309
main35789-32030i198909-199309
35307FBOLT (FOR STATOR SHAFT)
main90119-06180i198909-199309
35321GEAR, FRONT OIL PUMP DRIVE
main35321-12020i198909-199309
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-35010i198909-199309
sub35322-12030
35370SHAFT ASSY, STATOR
main35370-12040i199009-199309
main35370-32022i198909-199009
sub35370-20H00
sub35370-32H01
35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)
main35616-32010i198909-199309
35617RING, CLUTCH DRUM OIL SEAL
main35617-32011i198909-199309

18 parts on this diagram · 1 diagram in section
