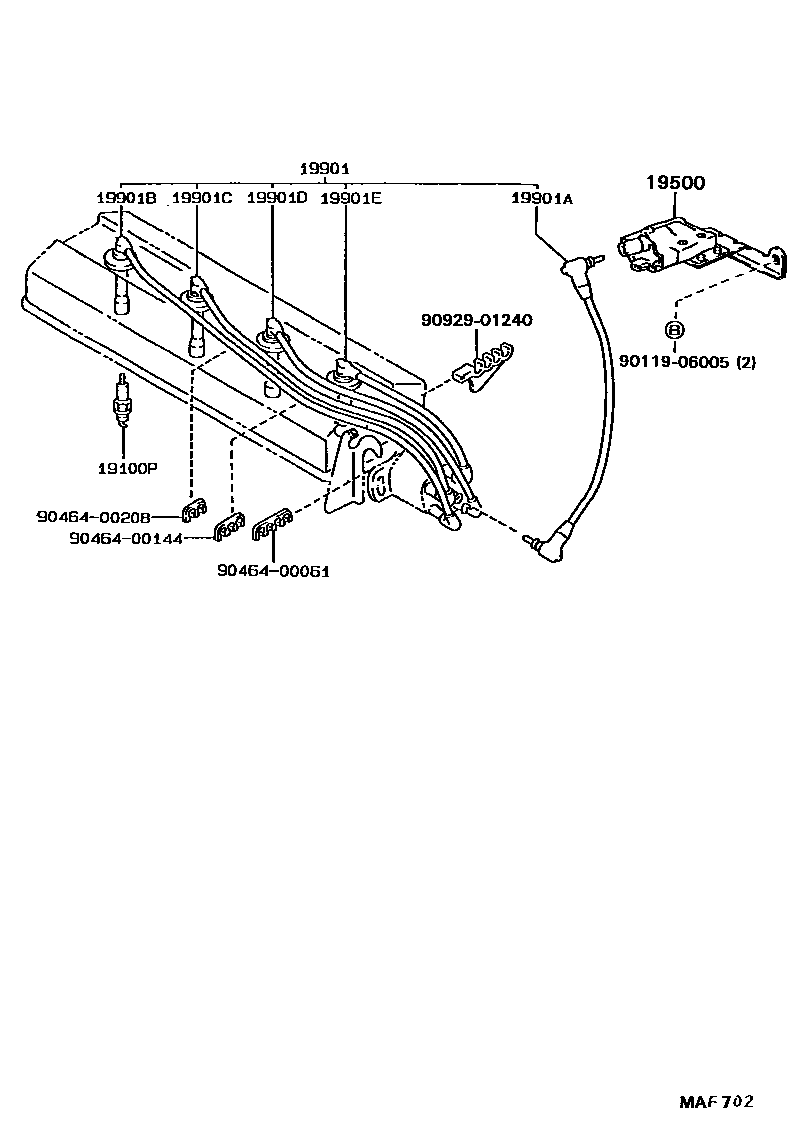

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0005 1 0007 1 0008 1

19100PPLUG, SPARK

main90919-01129i3SFE..ST182,183198909-199008

main90919-01180i3SG#..ST18#198909-199309

sub90919-01231

main90919-01181i3SG#..ST18#198909-199309

main90919-01184i3SFE..ST182,183199008-199309

19500COIL ASSY, IGNITION

main19500-74020i3SFE,3SG#..ST18#..GT4,GTR,SR,ZR198909-199109

main19500-74040i3SFE,3SG#..ST18#199008-199309

main19500-74060i3SGE..ST183..ACT199004-199108

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21468i3SGE..ST183..CV198909-199109

main90919-21470i3SFE..ST182,183198909-199008

main90919-21472i3SGTE..ST185198910-199108

main90919-21494i3SGE..ST183..ACT199004-199108

main90919-21512i3SFE..ST182,183199008-199202

sub90919-21550

main90919-21524i3SGTE..ST185199108-199309

main90919-21525i3SGE..ST182,183..GTR199108-199309

main90919-21550i3SFE..ST182,183199202-199309

19901ACORD, COIL RESISTIVE

main19590-74040i3SGE..ST182,183..CV,GTR198909-199109

sub19590-74050

main19590-74050i3SGTE..ST185198910-199108

main19590-74060i3SGE..ST183..ACT199004-199108

sub19590-74070

main19590-74130i3SFE..ST182,183199008-199309

main19590-74150i3SG#..ST18#199108-199309

main90919-13364i3SFE..ST182,183198909-199008

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12820i3SFE..ST182,183198909-199008

main90919-15046i3SGE..ST183..CV198909-199109

main90919-15050i3SGTE..ST185198910-199108

main90919-15130i3SFE..ST182,183199008-199009

sub90919-15134

main90919-15134i3SFE..ST182,183199009-199202

sub90919-15350

main90919-15134i3SFE..ST182,183199008-199108

sub90919-15350

main90919-15262i3SGE..ST182,183199108-199309

main90919-15266i3SGTE..ST185199108-199309

main90919-15348i3SFE..ST182,183199308-199309

main90919-15350i3SFE..ST182,183199202-199308

sub90919-15348

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12819i3SFE..ST182,183198909-199008

main90919-15047i3SGE..ST182,183198909-199109

main90919-15051i3SGTE..ST185198910-199108

main90919-15131i3SFE..ST182,183199308-199309

main90919-15135i3SFE..ST182,183199008-199308

sub90919-15131

main90919-15263i3SGE..ST182,183199108-199309

main90919-15267i3SGTE..ST185199108-199309

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12818i3SFE..ST182,183198909-199008

main90919-15048i3SGE..ST182,183198909-199109

main90919-15052i3SGTE..ST185198910-199108

main90919-15132i3SFE..ST182,183199308-199309

main90919-15136i3SFE..ST182,183199008-199308

sub90919-15132

main90919-15264i3SGE..ST182,183199108-199309

main90919-15268i3SGTE..ST185199108-199309

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12817i3SFE..ST182,183198909-199008

main90919-15049i3SGE..ST182,183198909-199109

main90919-15053i3SGTE..ST185198910-199108

main90919-15133i3SFE..ST182,183199008-199009

sub90919-15137

main90919-15137i3SFE..ST182,183199008-199108

sub90919-15351

main90919-15137i3SFE..ST182,183199108-199202

sub90919-15351

main90919-15265i3SGE..ST182,183199108-199309

main90919-15269i3SGTE..ST185199108-199309

main90919-15349i3SFE..ST182,183199308-199309

sub90919-15581

main90919-15351i3SFE..ST182,183199202-199308

sub90919-15349

9011906005

main90119-06005

9046400061

main90464-00061

9046400144

main90464-00144

9046400208

main90464-00208

9092901240

main90929-01240

13 parts on this diagram · 6 diagrams in section
