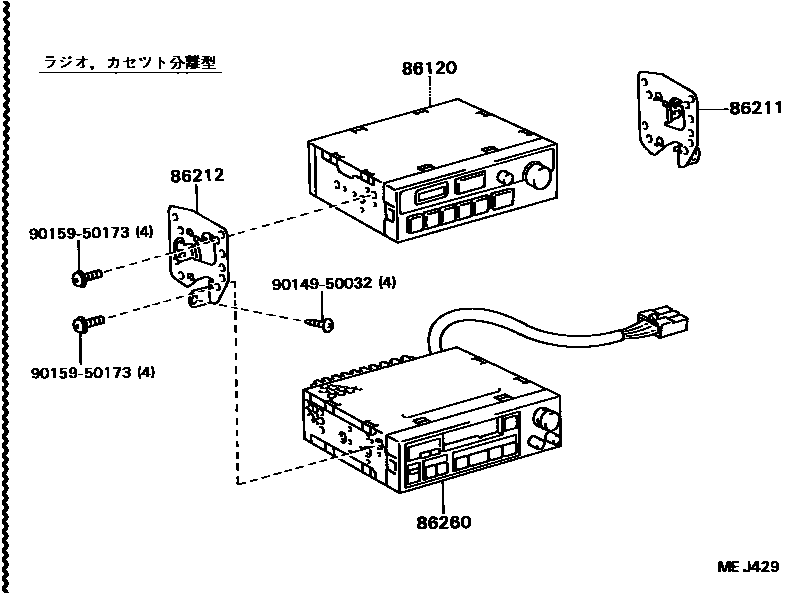

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

86120RECEIVER ASSY, RADIO

main86120-14720iST162..GT198708-198908

main86120-20551iST165198708-198908

main86120-20561iST162..CV198710-198908

main86120-20620iST16#..GT,GT4,SX,ZR198708-198908

sub86120-14790

main86120-30750iST160,162,163..GT,ST198708-198908

86211BRACKET, RADIO, NO.1

main86211-20150iST16#198708-198908

86212BRACKET, RADIO, NO.2

main86212-20190iST16#198708-198908

86260TAPE PLAYER ASSY

main86260-14280iST162..GT198708-198908

main86260-14290iST162..GT198708-198908

main86260-16140iST160,162,163..GT,ST198708-198908

9014950032

main90149-50032

9015950173

main90159-50173

6 parts on this diagram · 3 diagrams in section
