FRONT SEAT & SEAT TRACK

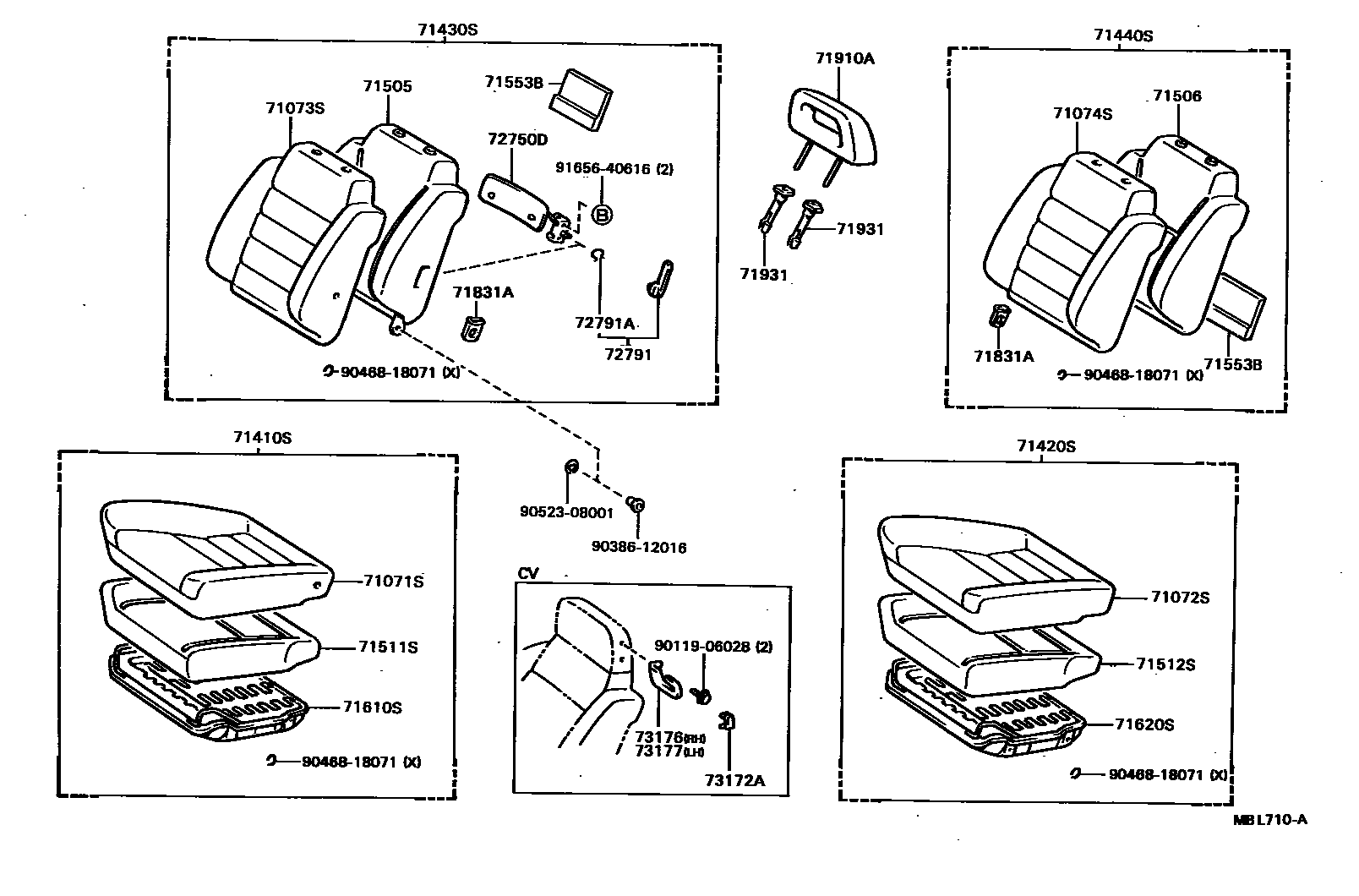

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-2B592-03i198708-198908
GRAY,TRIM2#
main71071-2B592-04i198708-198908
DEEP BLUE,TRIM8#
main71071-2B693-03i198708-198908
GRAY,TRIM2#
main71071-2B693-04i198708-198908
DEEP BLUE,TRIM8#
main71071-2B792-03i198708-198908
GT-R,GRAY,TRIM2#
main71071-2B792-04i198708-198908
GT-R,DEEP BLUE,TRIM8#
main71071-2B830-13i198710-198908
GRAY,TRIM2#
main71071-2B851-01i198708-198908
BLACK,TRIM2#
main71071-2B851-04i198708-198908
DEEP BLUE,TRIM8#
main71071-2D060-03i198710-198808
GRAY,TRIM2#
main71071-2D061i198808-198908
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-2B121-01i198708-198908
BLACK,TRIM2#
main71072-2B121-04i198708-198908
DEEP BLUE,TRIM8#
main71072-2B132-03i198708-198908
GRAY,TRIM2#
main71072-2B132-04i198708-198908
DEEP BLUE,TRIM8#
main71072-2B222-03i198708-198908
GRAY,TRIM2#
main71072-2B222-04i198708-198908
DEEP BLUE,TRIM8#
main71072-2B270-13i198901-198907
main71072-2B360-03i198710-198808
GRAY,TRIM2#
main71072-2B361-03i198808-198908
GRAY,TRIM2#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-2B532-03i198708-198908
GRAY,TRIM2#
main71073-2B532-04i198708-198908
DEEP BLUE,TRIM8#
main71073-2B683-03i198708-198908
GRAY,TRIM2#
main71073-2B683-04i198708-198908
DEEP BLUE,TRIM8#
main71073-2B742-01i198708-198908
BLACK,TRIM2#
main71073-2B742-04i198708-198908
DEEP BLUE,TRIM8#
main71073-2B760-13i198710-198908
GRAY,TRIM2#
main71073-2D020-03i198710-198808
GRAY,TRIM2#
main71073-2D021-03i198808-198908
GRAY,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-2B152-03i198708-198908
GRAY,TRIM2#
main71074-2B152-04i198708-198908
DEEP BLUE,TRIM8#
main71074-2B352-03i198708-198908
GRAY,TRIM2#
main71074-2B352-04i198708-198908
DEEP BLUE,TRIM8#
main71074-2B411-01i198708-198908
BLACK,TRIM2#
main71074-2B411-04i198708-198908
DEEP BLUE,TRIM8#
main71074-2B430-13i198901-198907
main71074-2B590-03i198710-198808
GRAY,TRIM2#
main71074-2B591-03i198808-198908
GRAY,TRIM2#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-2B673-03i198708-198908
GRAY,TRIM2#
main71410-2B673-04i198708-198908
DEEP BLUE,TRIM8#
main71410-2B682-03i198708-198908
GRAY,TRIM2#
main71410-2B682-04i198708-198908
DEEP BLUE,TRIM8#
main71410-2B752-01i198708-198908
BLACK,TRIM2#
main71410-2B752-04i198708-198908
DEEP BLUE,TRIM8#
main71410-2B862-03i198708-198908
GT-R,GRAY,TRIM2#
main71410-2B862-04i198708-198908
GT-R,DEEP BLUE,TRIM8#
main71410-2D010-13i198710-198908
GRAY,TRIM2#
main71410-2D150-03i198710-198808
GRAY,TRIM2#
main71410-2D151-03i198808-198908
GRAY,TRIM2#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-2B142-03i198708-198908
GRAY,TRIM2#
main71420-2B142-04i198708-198908
DEEP BLUE,TRIM8#
main71420-2B152-03i198708-198908
GRAY,TRIM2#
main71420-2B152-04i198708-198908
DEEP BLUE,TRIM8#
main71420-2B211-01i198708-198908
BLACK,TRIM2#
main71420-2B211-04i198708-198908
DEEP BLUE,TRIM8#
main71420-2B340-13i198710-198908
GRAY,TRIM2#
main71420-2B480-03i198710-198808
GRAY,TRIM2#
main71420-2B481-03i198808-198908
GRAY,TRIM2#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-2B642-01i198708-198908
BLACK,TRIM2#
main71430-2B642-04i198708-198908
DEEP BLUE,TRIM8#
main71430-2B653-03i198708-198908
GRAY,TRIM2#
main71430-2B653-04i198708-198908
DEEP BLUE,TRIM8#
main71430-2B662-03i198708-198908
GRAY,TRIM2#
main71430-2B662-04i198708-198908
DEEP BLUE,TRIM8#
main71430-2B672-03i198708-198908
GT-R,GRAY,TRIM2#
main71430-2B672-04i198708-198908
GT-R,DEEP BLUE,TRIM8#
main71430-2B871-03i198710-198908
GRAY,TRIM2#
main71430-2D160-03i198710-198808
GRAY,TRIM2#
main71430-2D161-03i198808-198908
GRAY,TRIM2#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-2B391-01i198708-198908
BLACK,TRIM2#
main71440-2B391-04i198708-198908
DEEP BLUE,TRIM8#
main71440-2B402-03i198708-198908
GRAY,TRIM2#
main71440-2B402-04i198708-198908
DEEP BLUE,TRIM8#
main71440-2B412-03i198708-198908
GRAY,TRIM2#
main71440-2B412-04i198708-198908
DEEP BLUE,TRIM8#
main71440-2B611-03i198710-198908
GRAY,TRIM2#
main71440-2B780-03i198710-198808
GRAY,TRIM2#
main71440-2B781-03i198808-198908
GRAY,TRIM2#
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
main71505-20011i198708-198908
main71505-20021i198708-198908
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
main71506-20010i198708-198908
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-20400i198708-198908
main71511-20410i198708-198908
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-20400i198708-198908
main71511-20410i198708-198908
71553BPAD, FRONT SEATBACK, B
main71553-20110i198708-198908
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-20350i198708-198908
main71610-20380i198708-198908
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71610-20270i198708-198908
main71610-20300i198708-198908
71831ACOVER, FRONT SEAT HINGE
main71831-10010i198708-198908
71910AHEADREST ASSY, FRONT SEAT
main71910-20541-01×2i198708-198908
BLACK,TRIM2#
main71910-20541-04×2i198708-198908
DEEP BLUE,TRIM8#
main71910-20691-01×2i198708-198908
BLACK,TRIM2#
main71910-20691-04×2i198708-198908
DEEP BLUE,TRIM8#
main71910-20791-13i198710-198808
main71910-20792-03i198808-198908
main71910-20800-01×2i198710-198908
BLACK,TRIM2#
main71910-20880-01×2i198708-198908
BLACK,TRIM2#
main71910-20880-04×2i198708-198908
DEEP BLUE,TRIM8#
main71920-20151-13i198710-198808
main71920-20152-03i198808-198908
71931SUPPORT, FRONT SEAT HEADREST
main71930-10060-01×2i198708-198908
main71930-10060-44×2i198708-198901
main71930-14080-01×2i198708-198908
main71930-14080-14×2i198708-198908
main71931-10010-01×2i198708-198908
main71931-10010-44×2i198708-198901
main71931-14010-01×2i198708-198908
main71931-14010-14×2i198708-198908
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-20050i198708-198908
main72750-20070i198708-198908
72791LEVER, LUMBAR SUPPORT
main72791-20030-01i198708-198908
BLACK,TRIM2#
main72791-20030-04i198708-198908
DEEP BLUE,TRIM8#
72791ARING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)
main90520-01274i198708-198908
73172ACAP, FRONT SHOULDER BELT HANGER
main73172-20010-01×2i198710-198908
BLACK,TRIM2#
73176HANGER, FRONT SHOULDER BELT, RH (FOR FRONT SEAT)
main73176-20030-01i198710-198908
BLACK,TRIM2#
73177HANGER, FRONT SHOULDER BELT, LH (FOR FRONT SEAT)
main73177-20030-01i198710-198908
BLACK,TRIM2#
9011906028
main90119-06028
9038612016
main90386-12016
9046818071
main90468-18071
9052308001
main90523-08001
9165640616
main91656-40616

29 parts on this diagram · 3 diagrams in section
