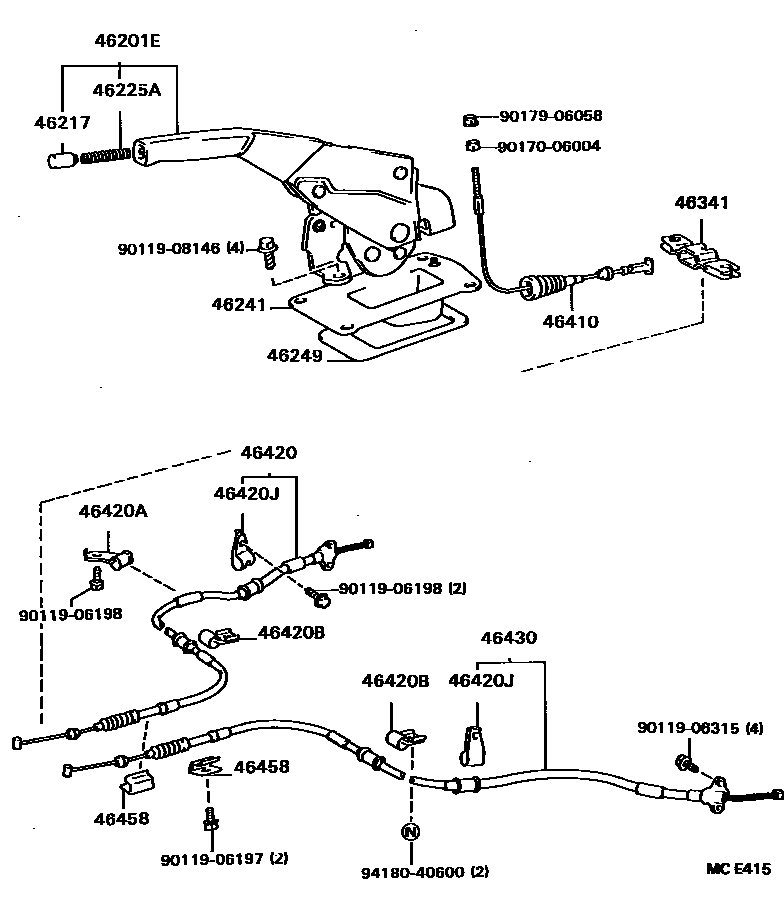

PARKING BRAKE & CABLE

0001 1 0002 1�� ����� �����

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-20130-01iST160,162198708-198801

NEW BLACK,TRIM2#

main46201-20130-24iST160,162..LB198708-198801

DEEP BLUE,TRIM8#

main46201-20131-01iST160,162,163198801-198908

NEW BLACK,TRIM2#

main46201-20131-04iST163..4FC;ST160,162..LB;ST163..5F..SX198801-198908

BLUE,TRIM8#

main46201-20150-01iST165198710-198801

NEW BLACK,TRIM2#

main46201-20151-01iST165198801-198908

NEW BRACK,TRIM2#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020-04iST163..4FC;ST160,162..LB;ST163..5F..SX198801-198908

DEEP BLUE,TRIM8#

sub46217-16030

main46217-12020-11iST16#198801-198908

BLACK,TRIM2#

sub46217-16030

main46217-20020-11iST16#198708-198712

BLACK,TRIM2#

main46217-20020-14iST162..LB198708-198712

DEEP BLUE,TRIM8#

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iST16#198708-198908

46241BOOT, PARKING BRAKE LEVER

main46241-20050iST160,162,163198708-198908

main46241-20070iST165198710-198908

46249SHIELD, PARKING BRAKE HOLE

main46249-20020iST160,162,163198708-198908

main46249-20030iST165198710-198908

46341EQUALIZER, PARKING BRAKE

main46341-16020iST165198710-198908

main46341-20040iST160,162,163198708-198908

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-20230iST160,162,163198708-198908

main46410-20270iST165198710-198908

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-20170iST165198710-198908

main46420-29015iST163;ST162..CV198805-198908

main46420-29025iST162..LB198805-198908

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01285iST160,162,163198708-198908

main90949-01368iST165198710-198908

main90949-01369iST165198710-198908

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01016×2iST160,162,163198708-198908

main90949-01370iST165198710-198908

main90949-01371iST165198710-198908

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90949-01224×2iST160,162,163198708-198908

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-20260iST165198710-198908

main46430-29025iST163;ST162..CV198805-198908

main46430-29035iST162..LB198805-198908

46458RETAINER, CABLE

main46458-20020×2iST16#198708-198906

main46458-50010×2iST16#198906-198908

9011906197

main90119-06197

9011906198

main90119-06198

9011906315

main90119-06315

9011908146

main90119-08146

9017006004

main90170-06004

9017906058

main90179-06058

9418040600

main94180-40600

20 parts on this diagram · 2 diagrams in section
