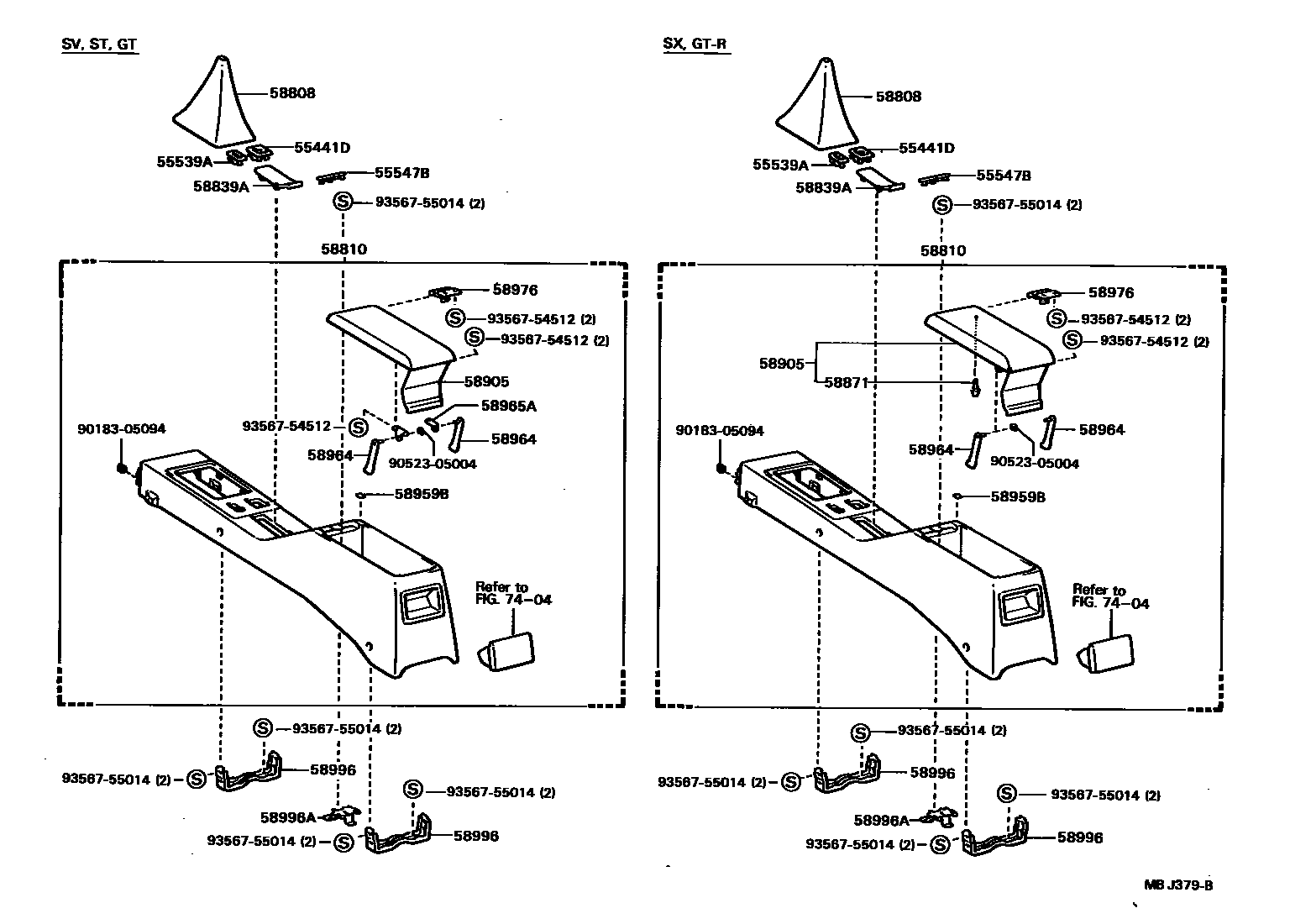

CONSOLE BOX & BRACKET

0001 1 0002 1

55441DBOX, INSTRUMENT PANEL COIN

main55441-20150-03iAT160,ST160,162198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub55441-20150

main55441-20150-04iAT160,ST160,162198508-198708

BLUE,DEEP BLUE,TRIM8#

sub55441-20150

55539ACOVER, SPARE SWITCH HOLE

main55539-20020-03iST160;AT160,ST162..5F198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub55539-20020

main55539-20020-04iST160;AT160,ST162..5F198508-198708

BLUE,DEEP BLUE,TRIM8#

sub55539-20020

55547BCOVER, REMOTE CONTROL MIRROR HOLE

main55547-20020-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub55547-20020

main55547-20020-04iAT160,ST160,162198508-198708

BLUE,DEEP BLUE,TRIM8#

sub55547-20020

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-20050-03iAT160,ST16#..5F198508-198708

GRAY,SHADOW GRAY,TRIM1#

main58808-20050-04iAT160,ST160,162..5F198508-198708

BLUE,DEEP BLUE,TRIM8#

58810CONSOLE ASSY

main58801-20100-03iAT160,ST160,162..GT,ST,SV198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub58801-20140

sub55539-20020

main58801-20100-04iAT160,ST160,162..GT,ST,SV198508-198708

BLUE,DEEP BLUE,TRIM8#

sub58801-20140

sub55539-20020

main58801-20110-03iST160..SX198508-198708

GT-R PACKAGE,GRAY,SHADOW GRAY,TRIM1#

sub58801-20150

sub55539-20020

main58801-20110-03iST160..SX198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub58801-20150

sub55539-20020

main58801-20110-04iST160..SX198508-198708

BLUE,DEEP BLUE,TRIM8#

sub58801-20150

sub55539-20020

main58801-20110-04iST160..SX198508-198708

GT-R PACKAGE,BLUE,DEEP BLUE,TRIM8#

sub58801-20150

sub55539-20020

main58801-20120-03iST165198610-198708

GRAY,SHADOW GRAY,TRIM1#

58839ACOVER, CONSOLE BOX HOLE

main58839-20020-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub58839-20020

main58839-20020-04iAT160,ST160,162198508-198708

BLUE,DEEP BLUE,TRIM8#

sub58839-20020

58871CUSHION, CONSOLE BOX

main90541-04079iST160..SX198508-198708

GT-R PACKAGE

main90541-04079iST165198610-198708

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-20060-03iST162198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub58905-20070

main58905-20060-03iST162198508-198708

GT-R PACKAGE,GRAY,SHADOW GRAY,TRIM1#

sub58905-20070

main58905-20060-04iST162198508-198708

BLUE,DEEP BLUE,TRIM8#

sub58905-20070

main58905-20060-04iST160..SX198508-198708

GT-R PACKAGE,BLUE,DEEP BLUE,TRIM8#

sub58905-20070

main58951-20070-03iAT160,ST160,162..GT,ST,SV198508-198708

GRAY,GRAY,TRIM1#

main58951-20070-04iAT160,ST160,162..GT,ST,SV198508-198708

BLUE,DEEP BLUE,TRIM8#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-16010iAT160,ST16#198508-198708

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-30030iAT160,ST16#198508-198708

LH

main58964-90K00iAT160,ST16#198508-198708

RH

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-12010iAT160,ST160,162..GT,ST,SV198508-198708

LH

main58965-20020iAT160,ST160,162..GT,ST,SV198508-198708

RH

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-22020iAT160,ST16#198508-198708

58996BRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-20030iAT160,ST160,162198508-198708

main58995-20040iST165198610-198708

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-20030iAT160,ST160,162198508-198708

main58996-20040iST165198610-198708

7404

9018305094

main90183-05094

9052305004

main90523-05004

9356754512

main93567-54512

9356755014

main93567-55014

19 parts on this diagram · 2 diagrams in section
